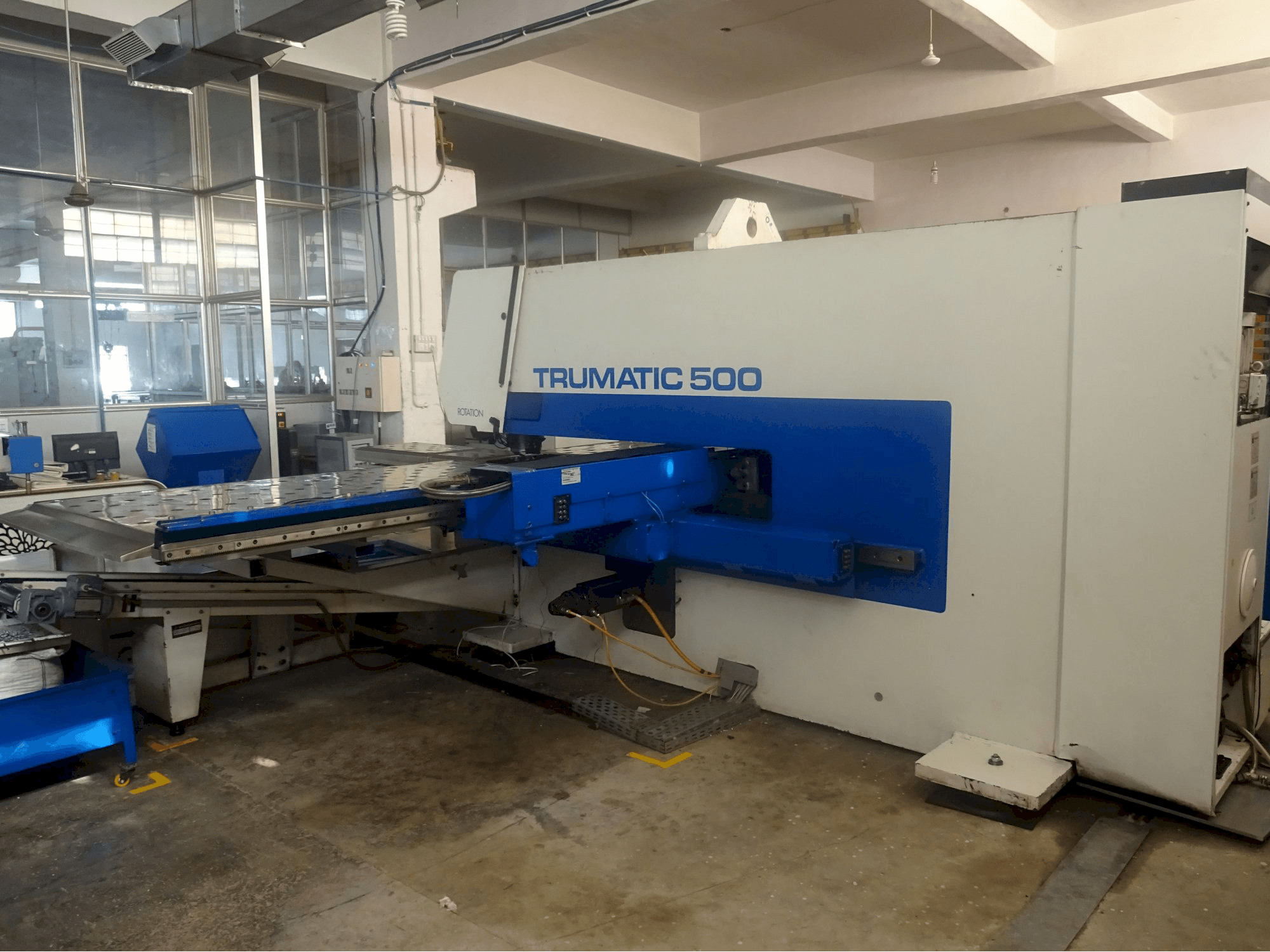

Right side view of Trumpf Trumatic 500 R Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF Trumatic 500 R

Photo Gallery

TRUMPF - Trumatic 500 RIN-PUN-TRU-1995-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Trumpf Trumatic 500 R Turret Punching Machine

Show in original language

This Trumpf Trumatic 500 R Turret Punching Machine was manufactured in Germany in the year 1995 and counts with 43127 production hours since then. Equipped with a BOSCH Trumagraph CC220S Control unit, this machine has mainly worked with stainless steel during the past up to 1.5 mm of thickness. This model stands out due to its large format and for having auto indexed stations. A Sheet Master and an Unloader are included among additional equipment.

Overview

brand: TRUMPF
year: 1995
MODEL: Trumatic 500 R
production hours: 43127
application type: Punching
Location: India
machine type: Punch-Laser Combination
availability: Sold
control unit brand: BOSCH

Technical Information - TRUMPF Trumatic 500 R

General Data

Measurements width: 6501 mm
Measurements depth: 5842 mm
Measurements height: 2718 mm
Machine weight: 11050 kg

Control Unit

Brand: BOSCH
Model: Trumagraph CC220S
CNC main language: German
CNC language customizable: Yes

Main drive

Punching force: 220 kN
Maximum sheet thickness: 6 mm

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 1270 mm

Tools

Number of index: 20
Number of stations: 20

Max Material thickness

Steel: 3 mm
Stainless steel: 4 mm
Aluminum: 2 mm

Media

Main electronic connection: 400 V
Power consumption: 19 kVA

Additional Equipment

- 12x Tool
- Trumpf Sheet Master
- Sheet Unloader

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
