- ➤ Used Trumpf Trumatic 500 Turret Punching Machine

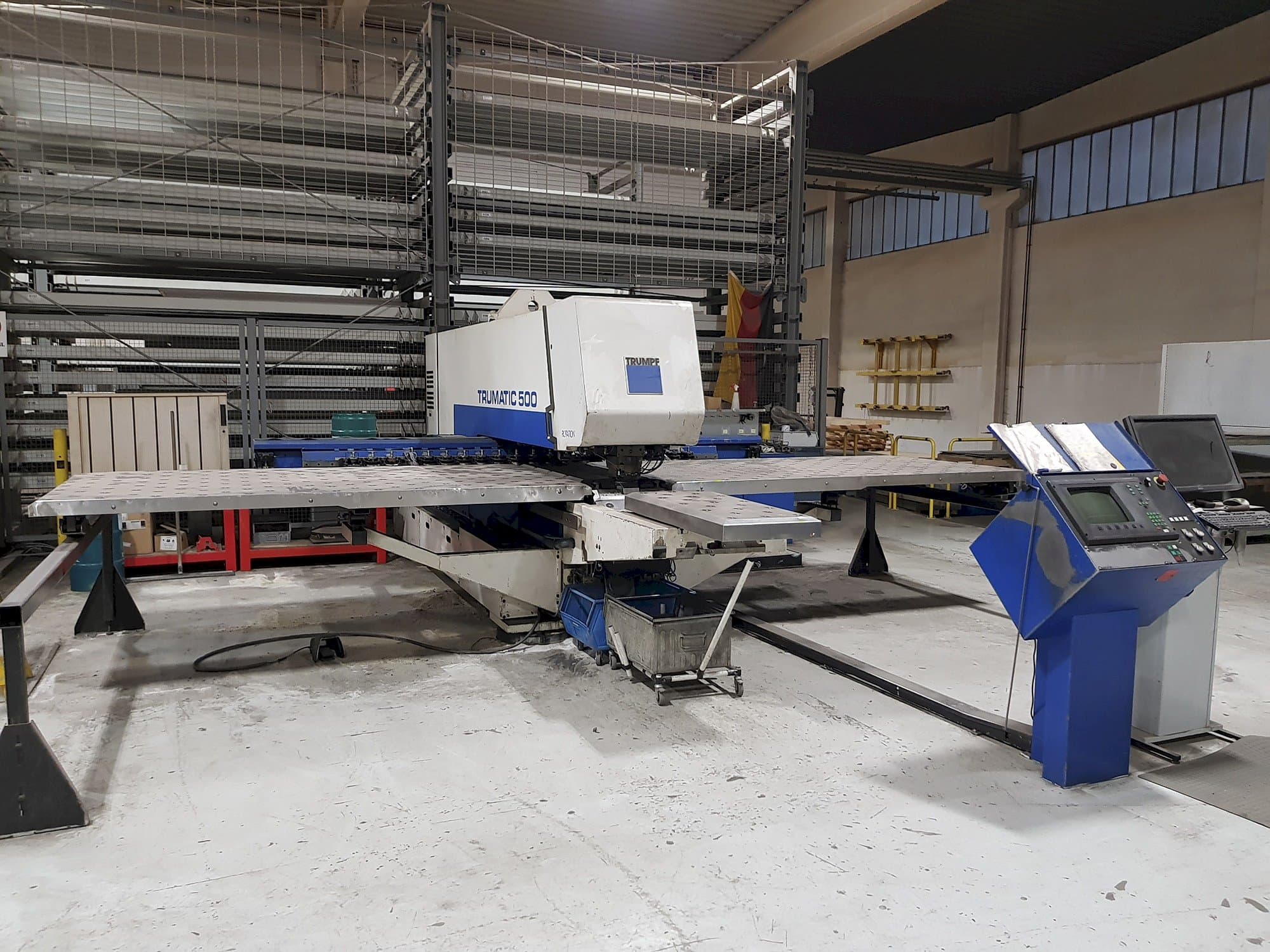

This Trumpf Trumatic 500 Turret Punching Machine was manufactured in the year 1996 in Germany and is equipped with a Bosch Trumagraph CC220S control unit. It has a production record of 79000 working hours. This machine has a punching force of 220 kN and a maximum sheet thickness of 8 mm. This machine includes the following equipment options: multitool, slot, softpunch, thread shape, signing, small parts sorting, low-scratch processing and re-setting.
Overview
- brand: TRUMPF
- year: 1996
- MODEL: Trumatic 500
- production hours: 79000
- application type: Punching
- Location: Germany
- machine type: Turret Punch Press
- control unit brand: BOSCH
Technical Information - TRUMPF Trumatic 500
Control Unit
- Control Brand: BOSCH
- Control Model: Trumagraph CC220S
Dimensions
- Machine Depth: 5800 mm
- Machine Height: 2200 mm
- Machine Weight: 11050 kg
Movement
- X-axis Travel: 2500 mm
- Y-axis Travel: 1300 mm
Technical Specification
- Max. Sheet Thickness: 8 mm
- Punching Force: 220 Kn
Additional Information
Additional equipment
- Re-setting cylinder available
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
