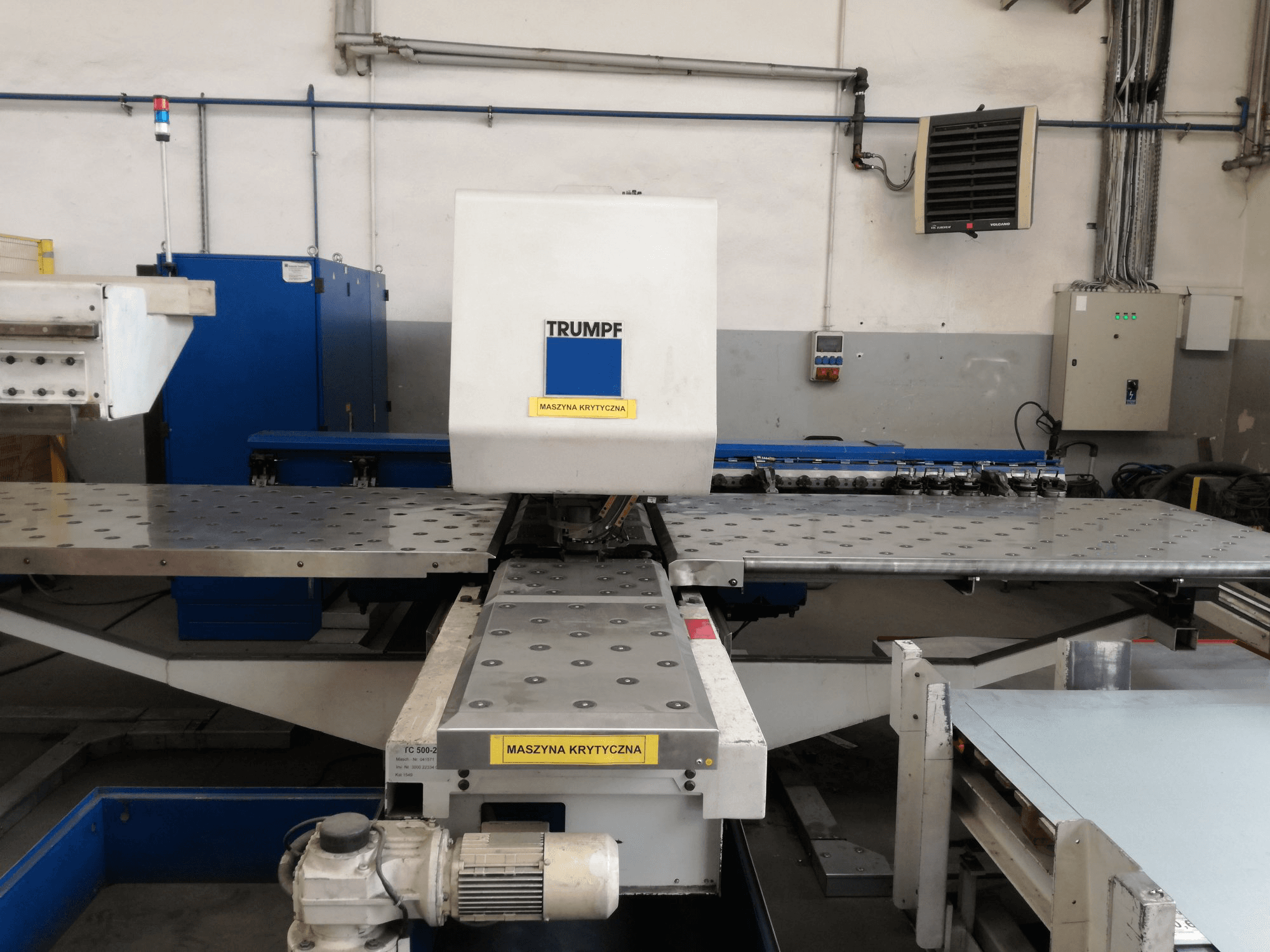

Front view of Trumpf Trumatic 500 Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF Trumatic 500

Photo Gallery

TRUMPF - Trumatic 500PL-PUN-TRU-2000-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used Turret Punching Machine - Trumpf Trumatic 500

Show in original language

This Trumpf Trumatic 500 Turret Punching Machine was manufactured in the year 2000 in Germany and has a working record of 83338 production hours. Equipped with a BOSCH Trumagraph Control unit, this machine also incorporates an Trumpf LiftMaster for automatic sheet loading and unloading. An additional set of around 90 tools is available upon request.

Overview

brand: TRUMPF
year: 2000
MODEL: Trumatic 500
production hours: 83338
application type: Punching
Location: Poland
machine type: Punch-Laser Combination
availability: Sold
control unit brand: BOSCH

Technical Information - TRUMPF Trumatic 500

General Data

Measurements width: 6900 mm
Measurements depth: 5800 mm
Measurements height: 2200 mm
Machine weight: 11050 kg

Control Unit

Model: Trumagraph
Brand: BOSCH

Main drive

Punching force: 220 kN

Movement

X-AXIS Movement: 2535 mm
Y-AXIS Movement: 1280 mm

Workpiece

Workpiece x: 2500 mm
Workpiece y: 1300 mm

Tools

Number of stations: 20

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 19 kVA

Additional Equipment

- Trumpf LiftMaster
- 89x Tools (upon request)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
