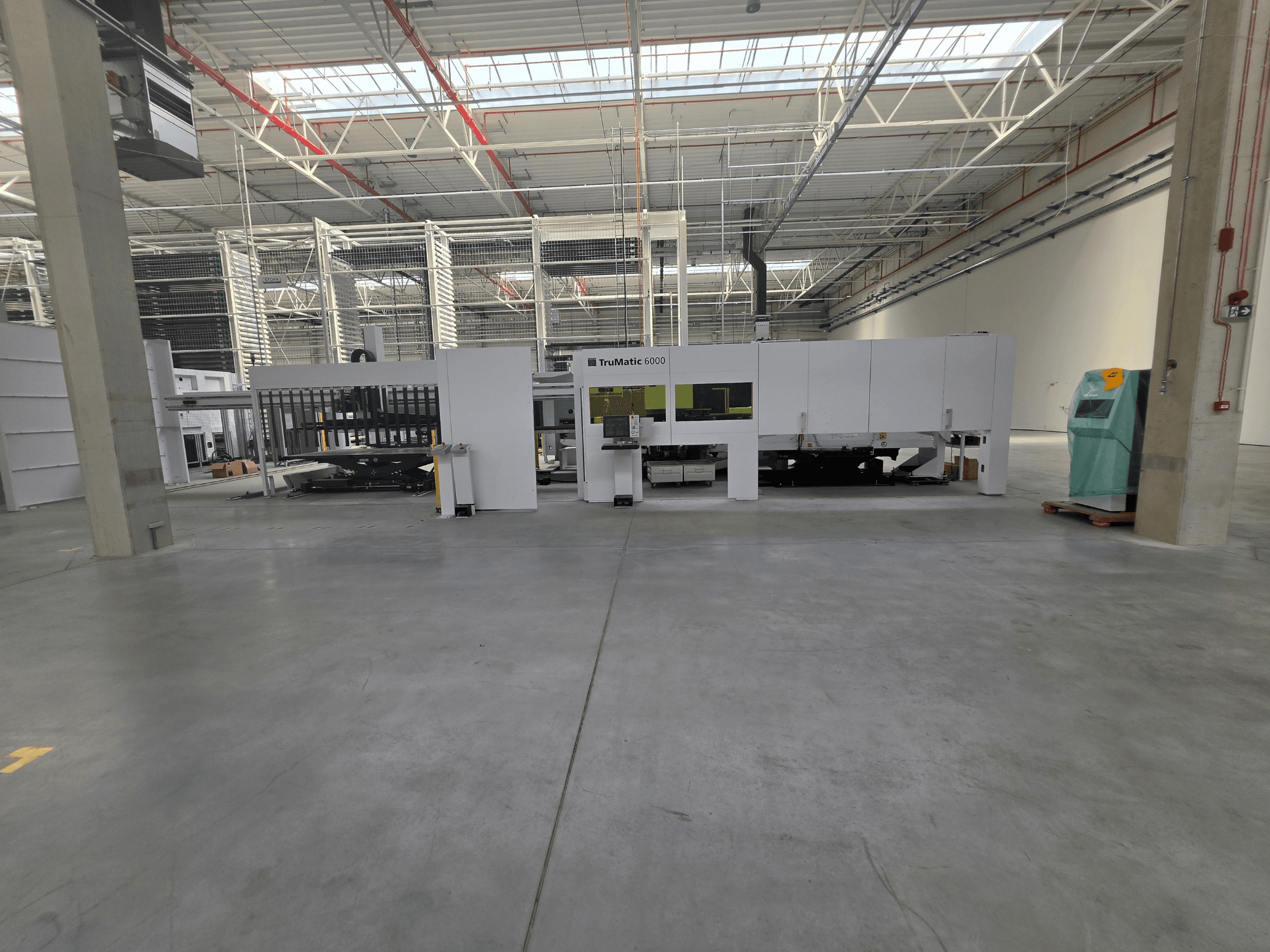

TRUMPF - TruMatic 6000-1600 fiberPL-PUN-TRU-2022-00001

• Laser source: TruDisk 3001 solid-state laser, 3,000 W, fiber-optic beam delivery (10 m), compact cutting head, anti-collision, protective glass, closed beam guidance, programmable cutting gas pressure

• Control/OS/Interface: Rexroth IndraMotion MTX CMP70; Windows Embedded; 17-inch touchscreen; 4 GB program memory; 320 GB HDD; USB; RJ45 10/100 Mbit/s; Internet teleservice; integrated technology database; NC program management; production planning; automatic machine shutdown; network connection for programming/production systems

• Working area:

  • Punching (no reposition): 3,050 x 1,550 mm

  • Laser cutting (no reposition): 3,050 x 1,550 mm

  • Combined (no reposition): 2,500 x 1,550 mm

  • Combined (with reposition): 3,050 x 1,550 mm

  • Max sheet thickness: 6.4 mm; Max workpiece weight: 230 kg

  • Max part size via flaps: 500 x 500 mm (laser) / 500 x 500 mm (punching); via chute: 80 x 50 mm

• Axes/performance:

  • Drives: Maintenance-free AC servo motors (X/Y/C); electrohydraulic punching head

  • Max speeds: X 90 m/min; Y 90 m/min; simultaneous 108 m/min; C-axis 330 rpm (punching/thread forming)

  • Frequencies: Max punching at E=1 mm: 917 strokes/min; marking: 2,800 strokes/min

  • Accuracy: Pa ±0.1 mm; Ps ±0.03 mm; min increment 0.001 mm

• Punching unit:

  • Force: 180 kN; electrohydraulic head; rotary single-station tool holder

  • Tool circumferences: punching 76.2 mm; forming 101.6 mm; optional 110 mm

  • Change times: basic 3.2 s; MultiTool 0.3 s

  • Magazine: 25 linear positions; standard 22 tools; up to 220 with MultiTool

  • Clamps: 3 hydraulic; fully rotatable tools; programmable blank-holder; tool length compensation; punch lubrication; chip extraction with automatic tube emptying and fill-level estimation; stroke counter; tool lubricant level monitoring; WhisperTools compatible

• Forming/punching functions:

  • MultiTool; MultiBend; thread forming (M2.5–M10); surface marking/embossing; vertically movable clamps

  • Max MultiBend: width 55 mm; height incl. material 25 mm; angle up to 90°

  • Automatic thread-forming lubrication; thread counter

• Laser cutting capability (max thickness):

  • Mild/structural steel: up to 6 mm (O2 or N2)

  • Stainless steel: up to 6 mm (N2)

  • Aluminum: up to 5 mm (N2)

• Laser functions: NitroLine; FocusLine; FastLine; FlyLine; ControlLine; slug detection; ejector cylinder for laser-cut parts; laser event log; automatic cutting-head height adjustment

• Standard machine equipment and safety:

  • Rigid C-shaped welded frame; coordinate guide system; linear tool magazine

  • 3 hydraulic clamps; programmable repositioning; foot switch for clamp closing

  • Radiation protection at cutting head; two 500 x 500 mm part flaps with sensors

  • Ball tables; two finished-part containers; chip container

  • Compact dust extraction and filtration unit

  • Water-air cooling unit (machine and laser)

  • Initial hydraulic oil filling

  • Two-level safety light curtains; fast drive shutdown; protection against scattered laser radiation

  • Right internal positioning pin; CE marking and Declaration of Conformity

Additional equipment

• Smart Punch Monitoring

  • Optical monitoring of last punching operation; punch-breakage detection; automatic check before tool change

• Additional/advanced clamping

  • Additional clamps for thin sheets; individually opening clamps; vertically movable clamps (max vertical stroke 12 mm); automatically closing clamp holder with optical sensor

• Pneumatic Blank Holder

  • Two pneumatic cylinders (left/right of punching head); operates independent of installed tool

• Thin sheet processing package

  • Brush tables for sensitive materials; vertically moving support-table balls; blowout tooling for small parts; sheet bulge detection

• Chip conveyor

  • Automatic chip conveyor; tilting chip container for extended unattended time

• SheetMaster 3000 x 1500 mm (AK04) – automatic sheet loading/unloading

  • Max unload sheet 3,000 x 1,500 mm; min 600 x 370 mm; thickness 0.5–8 mm; max sheet weight 230 kg

  • Max speeds: X 180 m/min; Z 30 m/min; maintenance-free digital servo drives

  • Parallel loading/unloading; sheet separation; positioning support; monitored unloading of laser-cut parts; scanner-monitored area

• GripMaster 3000 x 1500 mm – automatic skeleton removal

  • Max skeleton 3,000 x 1,500 mm; thickness up to 8 mm; weight up to 230 kg

  • Max stack height 230 mm; skeleton stack weight up to 2,000 kg

  • Sensor-monitored grippers; automatic stacking; tilting skeleton pallet; removal nearly parallel to next-sheet loading

• Double Rail Cart System – Large format

  • Double loading/unloading carts; max loading 3,000 kg; max unloading 3,000 kg

  • Upper cart edge 747 mm; lower 290 mm; Euro-pallet loading/unloading height up to 200 mm (upper/lower)

  • Double raw-material capacity; two-material supply; increased finished-part capacity

  • Part sorting support with SheetMaster; manual cart load/unload parallel to production

  • Adaptable rails; recessed or floor-mounted configurations

• Storage integration

  • Storage interface; automated connection to material storage

  • TruStore and STOPA integration; TC-CELL / TruTops Fab Module Storage connection

  • Automated production/material flow; raw/finished sheet data exchange

  • Storage-connected safety system; additional light-protection area; safety fencing where required

• Tooling and tool preparation

  • RTC cassettes incl. die plates; lightweight; high-acceleration capable; secure heavy-tool holding; ergonomic handle

  • QuickSharp tool grinding system with automatic tool length measurement; suitable for re-sharpening punches and WhisperTools; extends tool life

  • QuickSet punch setting/measuring system: punch/die clearance check; punch length measurement; grinding amount determination
