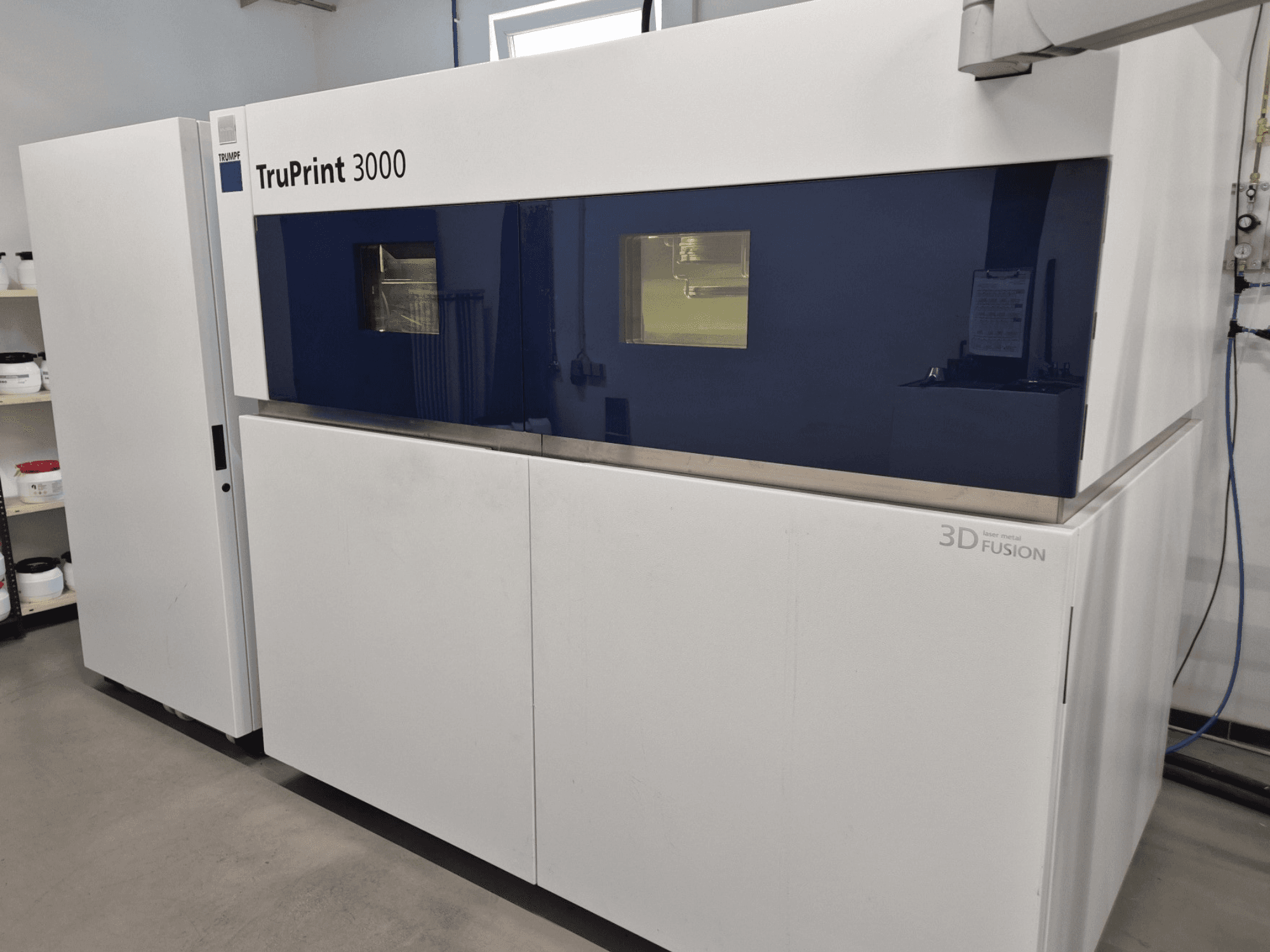

TRUMPF - TruPrint 3000DE-3DP-TRU-2017-00001

• Build volume: Ø 300 mm x 400 mm

• Laser configuration: 1x 500 W fiber laser

• Laser capacity: 500 W

• Main supply: 360 – 440 V

• Frequency: 50/60 Hz

• Control voltage: 24 VDC

• Connected load: 15 kVA

• Full load current: 32 A

• Nitrogen supply (N2): 6 – 10 bar

• Argon supply (Ar): 6 – 10 bar

• Air pressure: 5 – 10 bar

• Laser operating hours: approx. 9,000 h

• Last maintenance: 02/2024

• Condition: very good

• Build material: AlSi10Mg only

• Validated parameter sets: High Speed / High Density

• High Speed build rate: 57 cm³/h at 60 µm layer thickness and 99.6% density

• High Density build rate: 27 cm³/h at 60 µm layer thickness and 99.9% density

• Optional accessories:

• 1x build cylinder

• 2x powder supply cylinders

• Cooler

• Pallet truck

• Unpacking station

• 2x new filters

• 11x aluminum build platforms

• Vacuum conveyor system

• Sieving machine with control unit

• Optional accessories year: 2017

• Optional accessories condition: very good

Availability: approx. Q3/2026
