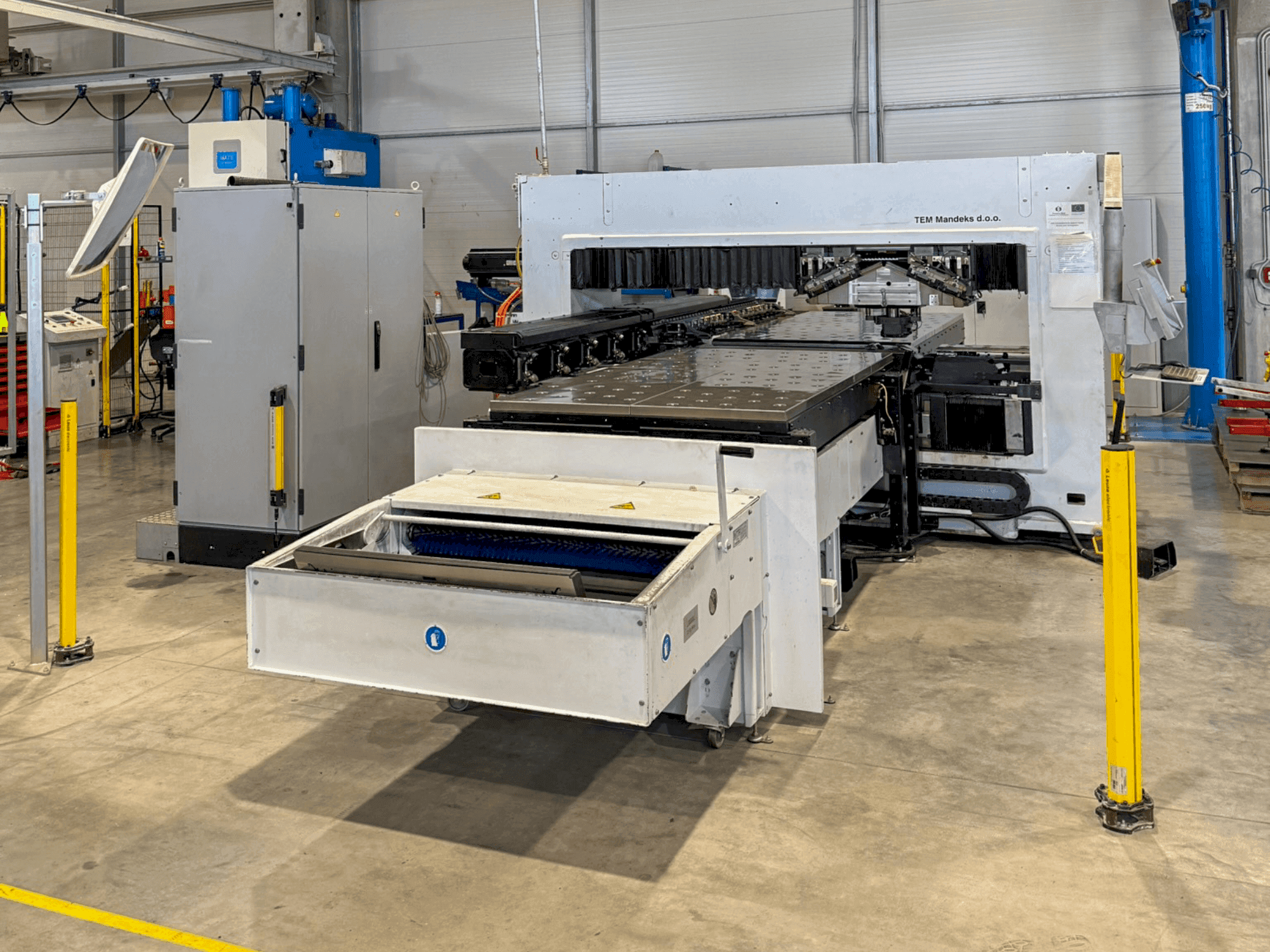

TRUMPF - TruPunch 1000 (S19)BA-PUN-TRU-2018-00001

Additional Equipment

• - Precision deburring and roller technology
• - Smart Punch Monitoring
• - Parts conveyor belt for part removal flap
• - Advanced punching equipment

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Recently changed all most important parts (guide, pump), with official service documentation
  • - Serviced with official service throughout its usage
  • - Closed machine frame
  • - Hybrid axis system
  • - Repositioning unit with programmable stripper
  • - Part chute right side
  • - Punching head
  • - Delta drive
  • - Programmable position of the presser foot
  • - Forming // stroke rate punch

Extra information

• - Control Unit TRUMPF control based on Bosch Rexroth IndraMotion MTX Control panel with 19" TFT touch screen Integrated technology data Interface Teleservice via internet Automatic shutdown mechanism NC program management Production plan Data transfer USB interface and network connection Network connection RJ45 Central Link Main Drive Drives with maintenance-free 3-phase servo motors Tools Linear magazine with 20 spots for clamps and tools Hydraulic clamps (2 pieces) Foot switch for closing clamps Rotatable single tool adapter Tool length compensation Spray lubrication for punches Vacuum slug removal Function MultiTest Function MultiBend Function tapping with thread counter Part removal flap left side Sensor for part removal flap Additional clamp The Laser cutting technology package is retrofittable Ability for retrofitting the PartMaster Advanced standard configuration 1st index pin position right hand inner side Ball-fitted tables Burr removal by Monitoring of level Sheet collision detection Straightener Compact 240 x 1250 mm Tools and specialized crane for manipulation available for extra cost.

Payment Terms

• Payment in advance

• Asset Financing
