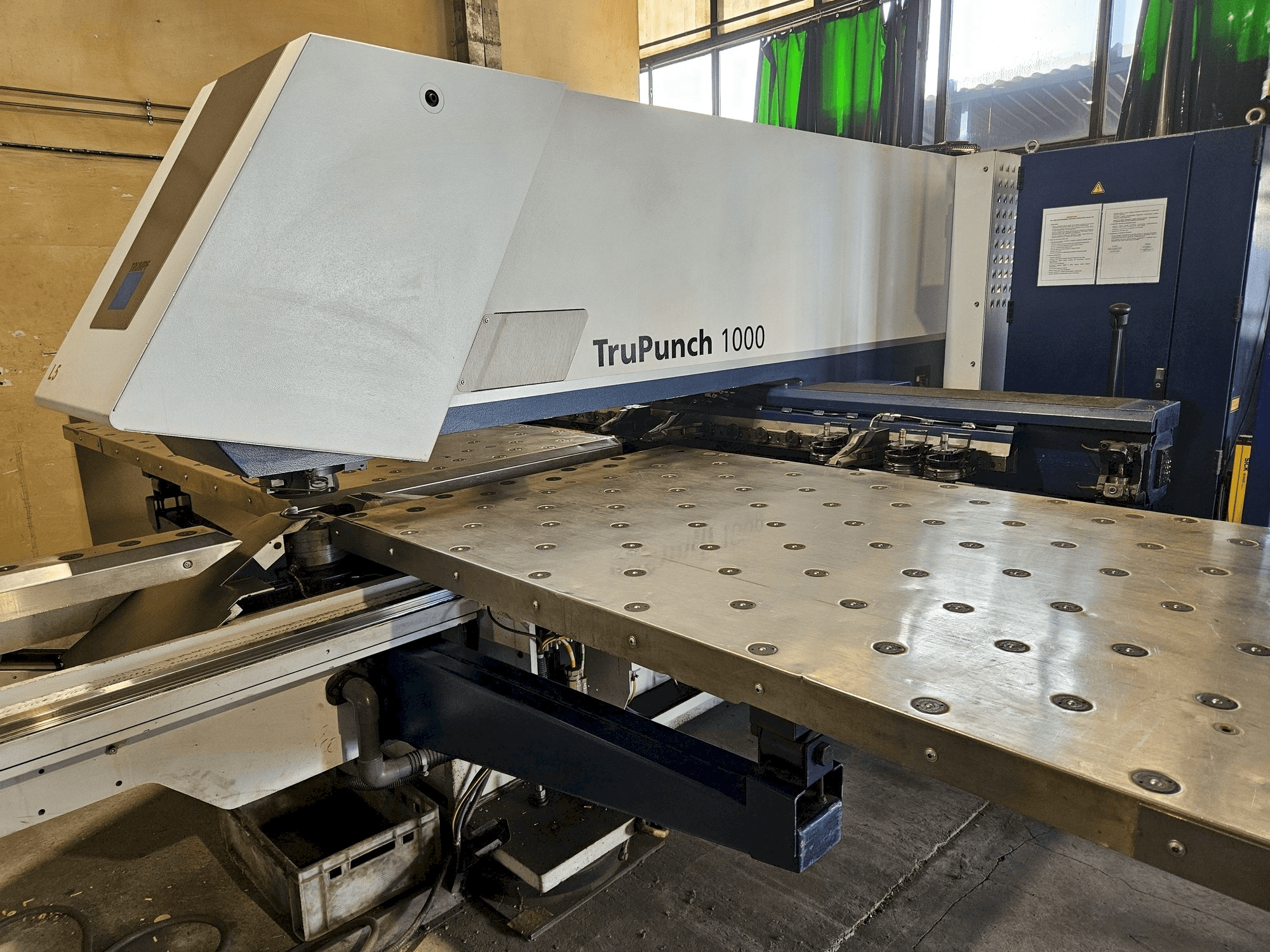

Front view of Trumpf TruPunch 1000  machine

TRUMPF TruPunch 1000

TRUMPF - TruPunch 1000

2013

79,000 €

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Trumpf TruPunch 1000 Punching machine was manufactured in the year 2013 in Germany and has 16248 production hours. It is equipped with a Trumpf BOSCH PNC-P control unit. The machine has a punching force of 165 kN.

Overview

  • brand: TRUMPF
  • year: 2013
  • MODEL: TruPunch 1000
  • production hours: 16248
  • application type: Punching
  • Location: Poland
  • machine type: Punching Machine
  • availability: Immediately
  • control unit brand: Trumpf BOSCH
  • GINDUMAC ID: PL-PUN-TRU-2013-00001

Technical Information

General Data

  • Measurements width: 6550 mm
  • Measurements depth: 7144 mm
  • Measurements height: 2155 mm

Control Unit

  • Brand: Trumpf BOSCH
  • Model: PNC-P

Main drive

  • Punching force: 165 kN

Movement

  • X-AXIS Movement: 2000 mm
  • Y-AXIS Movement: 1300 mm

Media

  • Main electronic connection: 400 V 50 Hz

    Additional Equipment

    • - Full service history and full documentation available

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Max sheet thickness: 6. 4 mm
        • - Number of tool slots: 15 pcs
        • - Max. Material weight: 150 kg
        • - Tool magazine with 15 tool stations
        • - Maintenance-free servo drives
        • - Repositioning via programmable downholder
        • - Ball table
        • - Part removal
        • - Automatic switch-off
        • - Chip container
      • Qualitative Machine Benefits:
        • - Included in the offer: 3 tool cassettes with punches dia. 3 , dia. 5, 25x5 - all these tools with peelers, dies + punch and die mounting
        • - The machine is in very good working condition, ready for tests. Full documentation available. Full service history. New pump and line amplifier installed in 2020
        • - Electro-hydraulic punching head
        • - Rotary, single-station tool holder
        • - Programmable downholder
        • - Tool length compensation
        • - Tool lubrication
        • - Chip evacuation through the table
        • - Forming
        • - Extended machine programming

      Extra information

      • - offline software licence is not included in the offer

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
