UZMA - MAKINA UZH76HU-ROL-UZM-2016-00001

Name: UZMA MAKINA UZH76
Brand: UZMA
SKU: HU-ROL-UZM-2016-00001
Price: 27000 EUR
Availability: InStock

27,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used UZMA MAKINA UZH76 For Sale | gindumac.com

Show in original language

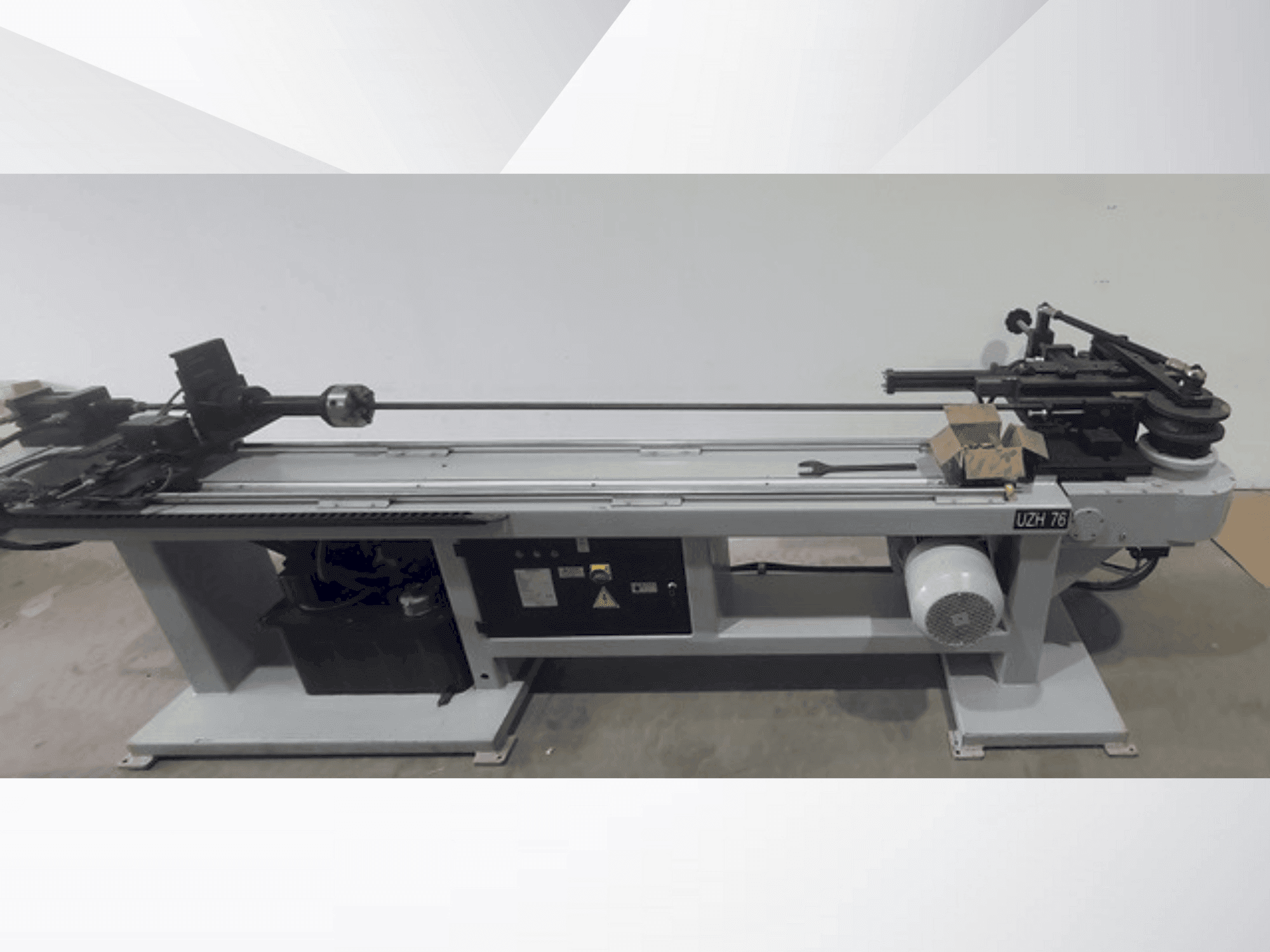

This UZMA MAKINA UZH76 was manufactured in 2016. It features a maximum tube diameter of 76 mm, a bending radius of 250 mm, and a wall thickness capacity of 4 mm. The bending angle reaches up to 190° with a speed of 48°/sec. Powered by a 13 kW total motor capacity and a hydraulic pressure of 140 bar. Consider the opportunity to buy this UZMA MAKINA UZH76 plate rolling machine. Contact us for more information.

Overview

brand: UZMA
year: 2016
MODEL: MAKINA UZH76
application type: Rolling
Location: Hungary
machine type: Plate Rolling Machine
availability: Immediately

Technical Information - UZMA MAKINA UZH76

General Data

Measurements width: 1350 MM
Measurements depth: 4400 MM
Measurements height: 1200 MM
Machine weight: 1800 KG

Main drive

Main motor power: 7.5 kw

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Voltage frequency: 380v/50hz/trifaze
- - Control voltage: 24v dc
- - Hydraulic motor power (kw): 5. 5
- - Main drive motor power (kw): 7. 5
- - Maximum bending speed (°/s): 48
- - Maximum bending angle (°): 190
- - Bending direction: right
- - Maximum tube diameter (mm): 76
- - Maximum bending radius (mm): 250
- - Maximum wall thickness (mm): 4
Qualitative Machine Benefits:
- - Maximum hydraulic pressure (bar): 140
- - Oil tank capacity (l): 65
- - Tool height (mm): 100
- - Mandrel length (mm): 3150
- - Working height (mm): 1030

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
