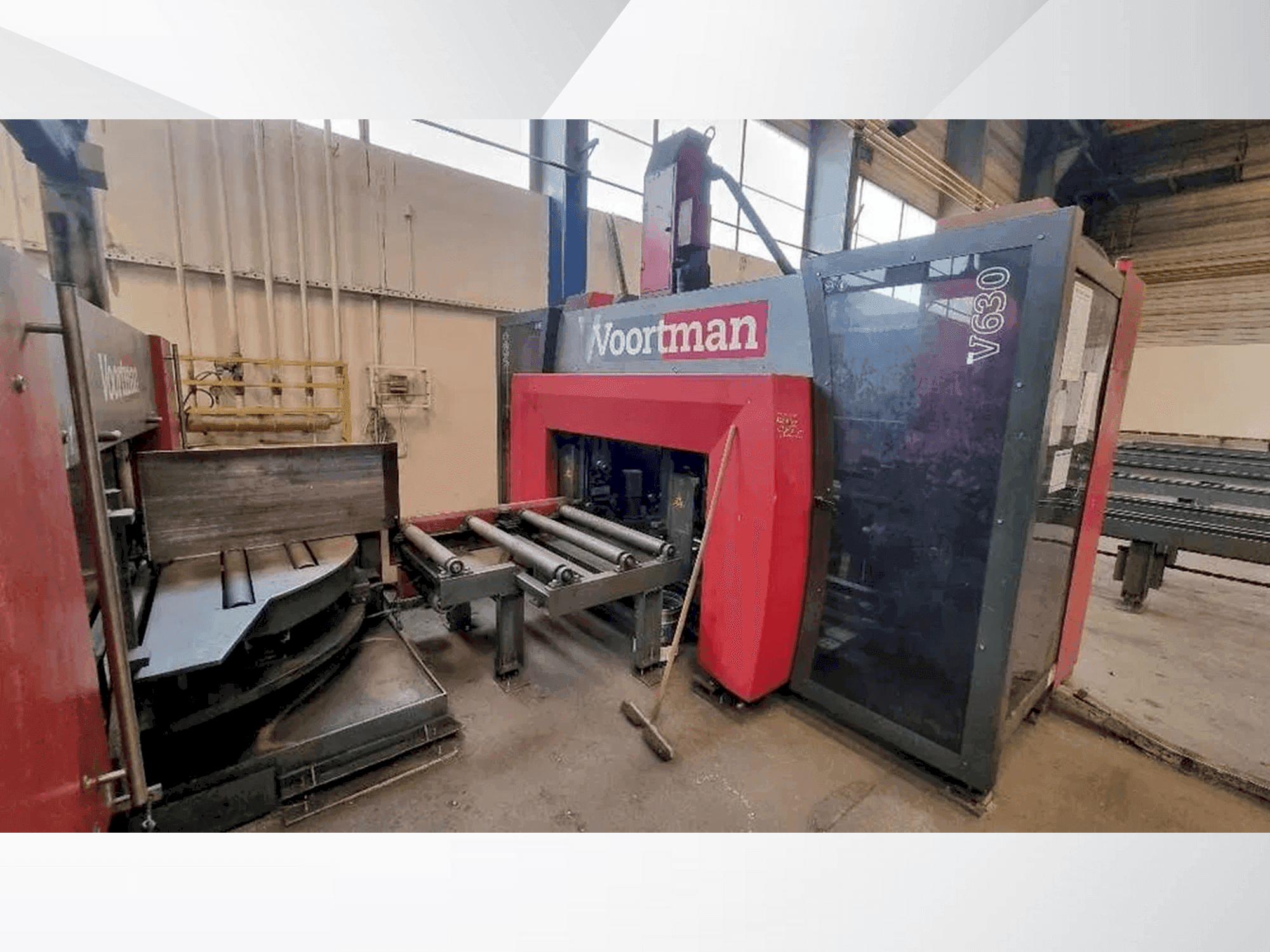

Front view of VOORTMAN V630 / VB1050 machine
Front view of VOORTMAN V630 / VB1050 machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

VOORTMAN - V630 / VB1050PL-SAW-VOO-2008-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Voortman V630 / VB1050 drilling machine was manufactured in 2008. It integrates CNC drilling and sawing capabilities, featuring a drilling unit with a nominal power of 30 kW and speeds up to 3,000 rpm. The sawing unit supports various operating ranges with a maximum of 500 x 1,130 mm. Ideal for precision and versatility in metalworking, the Voortman V630 / VB1050 machine we have for sale is robust with a combined weight of 19,500 kg. Contact us for further details.

Overview

  • brand: VOORTMAN
  • year: 2008
  • MODEL: V630 / VB1050
  • application type: Other Machine Tools
  • Location: Poland
  • machine type: Drilling Machine (Metal)

Additional Information

Machine Benefits

Technical Machine Benefits

  • Voortman v630: operating range: 10 x 60 – 450 x 1,140 mm / positioning weight: 13200 kg /
  • Drilling and positioning: servo motors / positioning speed x: 42 m/min / positioning speed y: 30 m/min /positioning speed z: 30 m/min
  • Drilling units: 3 / nominal power: 30 kw / speed: 0 - 3000 rpm (stepless) / tool changer: 3 x 6
  • Drill holder: sk40 / drill diameter: 5 - 40 mm / thread tapping: m6 - m30
  • Voortman vb1050: operating range 0°: 500 x 1,130 mm
  • Operating range 15°: 500 x 1,060 mm operating range 30°: 500 x 925 mm / operating range 45°: 500 x 725 mm / operating range 60°: 500 x 470 mm
  • Feed approach speed: 6 m/min
  • Saw band drive: 7. 5 kw / saw band speed: 40 - 120 m/min / saw band size: 54 x 1. 6 mm / saw band inclination: 5°

Extra Information

This is an integration of CNC drilling and sawing machines: drilling machine Voortman V630 and saw Voortman VB1050

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
