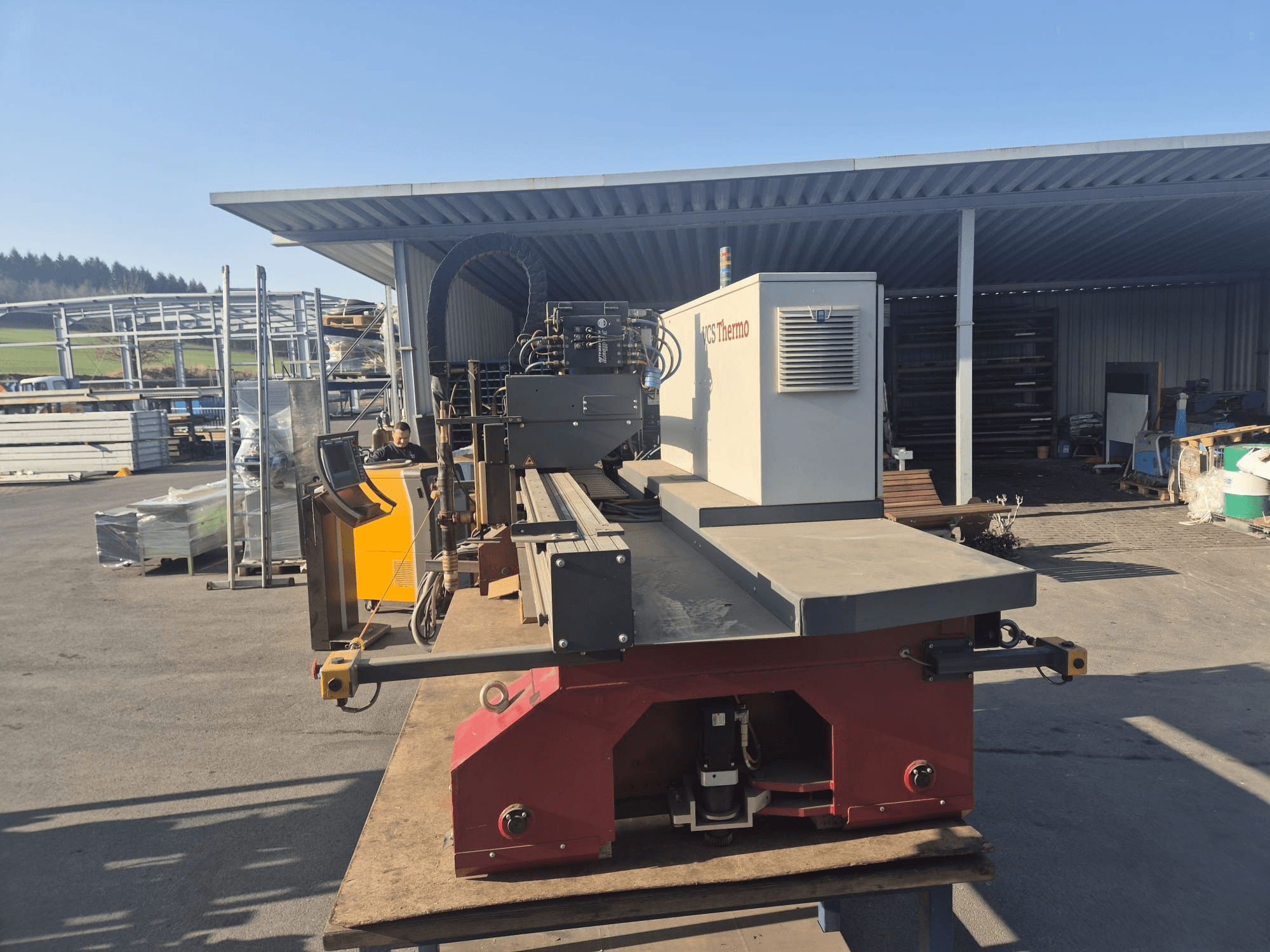

Front view of VOORTMAN VACAM VCS Thermo plasma cutting machine on a work surface, showcasing control panel and cutting area.
Front view of VOORTMAN VACAM VCS Thermo plasma cutting machine on a work surface, showcasing control panel and cutting area.

VOORTMAN - VACAM VCS ThermoDE-CUT-VOO-2013-00001

40,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 4-axis VOORTMAN VACAM VCS Thermo was manufactured in 2013. It features a working length of 3000 mm and a working width of 1500 mm, equipped with a Kjellberg HiFocus 280i plasma cutting unit capable of cutting up to 70 mm thickness. The machine offers a cutting speed range of approximately 0 – 5200 mm/min. If you are looking to get high-quality plasma cutting capabilities, consider the VOORTMAN VACAM VCS Thermo machine we have for sale. Contact us for further details.

Overview

  • brand: VOORTMAN
  • year: 2013
  • MODEL: VACAM VCS Thermo
  • production hours: 2000
  • application type: Cutting
  • Location: Germany
  • machine type: Plasma Cutting Machine

Technical Information - VOORTMAN VACAM VCS Thermo

Movement

  • Number of Axes: 4
  • X-axis Travel: 3000 mm
  • Y-axis Travel: 1500 mm

Additional Information

  • Working area: 3000 mm (length) x 1500 mm (width)

  • Machine structure: Heavy steel frame construction; portal gantry design

  • Material support: Sectional support bed

  • Plasma cutting unit: Kjellberg HiFocus 280i

  • Max plasma thickness: up to approx. 70 mm

  • Cutting capacity (steel): 6 / 12 / 20 / 25 / 30 / 40 / 50 / 70 mm

  • Cutting speed range: approx. 0–5200 mm/min

  • Positioning speed: approx. 12,000 mm/min

  • Positioning accuracy: ±0.1 mm

  • Control system: VACAM CNC control

  • Software: VACAM Machine Edition; VACAD; VANEST

  • Industrial PC: Intel Core 2 Duo; 2 GB RAM; SSD storage; Ethernet connection; touchscreen monitor; keyboard; USB ports

  • Automatic torch height control: HT4000 PCS

  • Laser pointer: Yes

  • Electrical connection: 230 V, 1 phase, 50 Hz

  • Compressed air requirement: Operating pressure approx. 6 bar

  • Noise level (idle): approx. 70 dB

  • Safety equipment: Emergency stop buttons; emergency stop cable; protective safety systems

  • Material types: Steel; structural steel; sheet metal

Additional equipment

  • TEKA Filtercube 4H extraction unit (filter system)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
