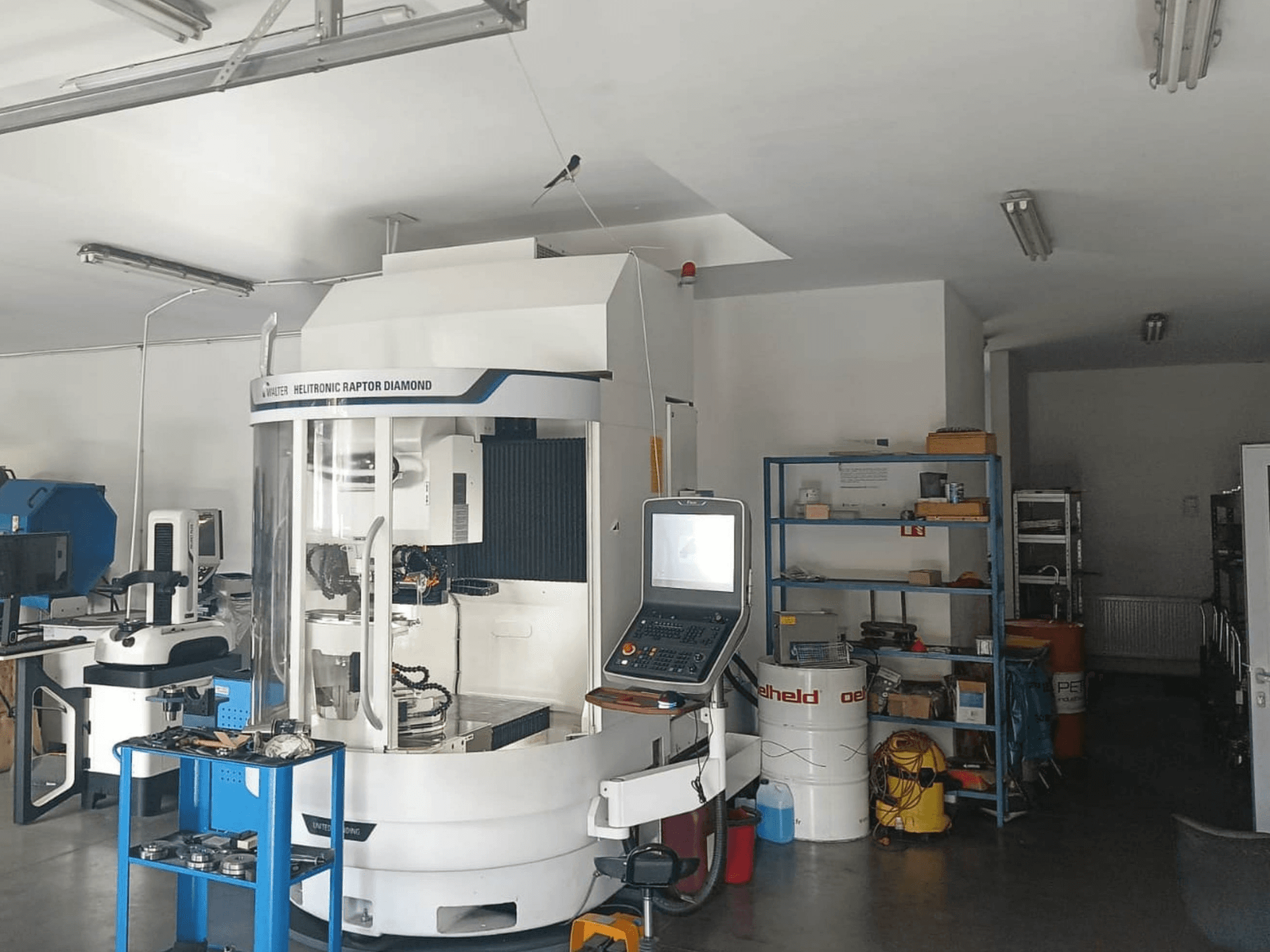

WALTER - HELITRONIC RAPTOR DIAMONDPL-GRI-WAL-2023-00001

• Operating hours: approx. 4,371 h

• Working range:

  • Tool diameter: Ø3–290 mm (optional up to Ø400 mm, depending on configuration)

  • Maximum tool length: 270 mm (optional up to 350 mm, depending on configuration)

  • Maximum tool weight: 50 kg

• Axes:

  • Number of CNC axes: 5

  • Linear axis speed: up to 15 m/min

• Spindle:

  • Max grinding wheel diameter: Ø200 mm

  • Interface: HSK

  • Belt-driven, double-ended spindle

• Grinding / Eroding:

  • Grinding and EDM in one setup

  • For carbide, HSS, PCD, CBN tools

  • Configurable for up to 3 electrodes and 3 grinding wheels, or alternatively up to 6 grinding wheels

• Control / Machine design:

  • WALTER / UNITED GRINDING CNC control

  • Enclosed working area with automatic protective door

• Installed machine options/features:

  • Upper table

  • Glass scales

  • Reinforced A-axis, up to 750 rpm

  • Preparation for automatic calibration/probe

  • Grinding wheel measuring probe

  • Automatic fire suppression system with leak detection

  • TS-Remote Ready

  • Keyboard support

  • Oil leak sensor

  • Connection for external filtration system

Additional equipment

• Automatic loading/manipulator system for shank tools (automatic tool loader/manipulator)

• Process cooling system

• Coolant/dielectric filtration and circulation system

• Coolant/dielectric system

• Tool holders

• Flanges/adapters

• Grinding wheel/electrode accessories

• Automation/handling:

  • TOP loader

  • 12 pallets

• Filtration/cooling/extraction:

  • Oil mist extraction system

  • Extraction silencer

  • Oil cooling unit

  • Filtration system with tank and pump

• Workholding/tooling:

  • Collets 6–16 mm

  • Collets 16–32 mm

  • 351 ES collets: 6, 8, 10, 12, 16 mm

  • 4 x 351 ES collet sets

  • Collets: 6, 8, 10, 12, 14, 16, 18, 20, 25 mm

  • Automatic holder 6–16 mm

  • Automatic E386 holder, 16–27 mm

  • Manual hydraulic holder, diameter 32 mm

  • ISO 50 socket

  • ISO 50 arbor

  • 2 x 50 mm HSK electrode holders

  • 4 x 45 mm HSK grinding wheel holders

  • Grinding wheel holder for dressing

  • Grinding wheel set measuring adapter

  • HSK calibration disc

  • Calibration roller

• Measuring:

  • Heliset Plus measuring device

• Software/options/packages:

  • Tool Studio for PC

  • Tool Studio Step Tools

  • 45-degree P-System sharpening option

  • P36 wood drill tooling package

  • Drill package

  • Hoger P58 package

• Consumables:

  • 4 x 208 l dielectric fluid
