Weeke - BHC 280.3SE-CNC-WEE-2003-00001

Name: Weeke BHC 280.3
Brand: Weeke
SKU: SE-CNC-WEE-2003-00001
Price: 17000 EUR
Availability: InStock

17,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Wood Working
➤ Used Weeke BHC 280.3 - 2003 - For Sale | gindumac.com

Show in original language

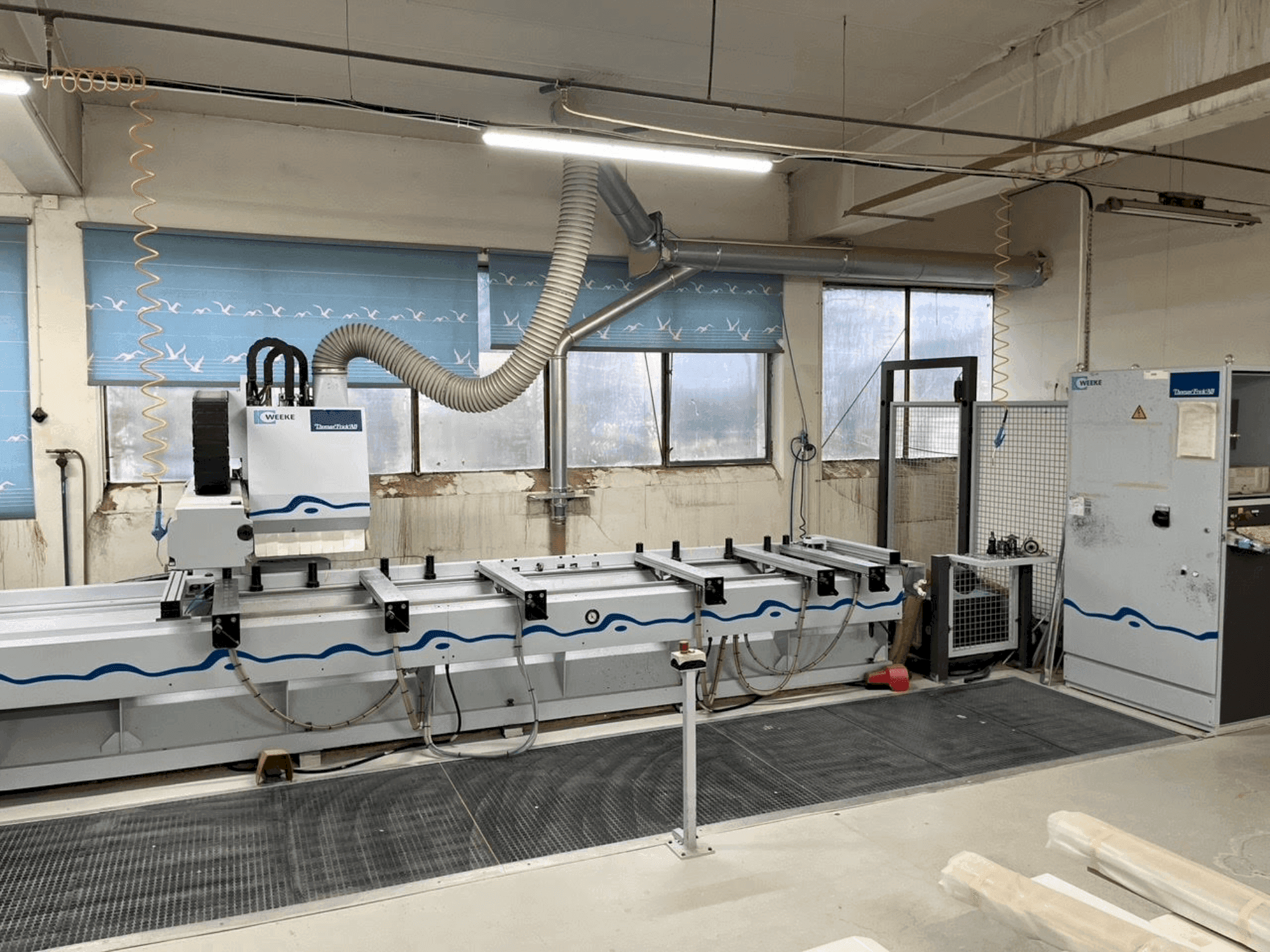

This 3-axis Weeke BHC 280.3 CNC Wood Machining Centre was manufactured in 2003. It features a robust 9 KW milling cutter with a C-axis, an 8-position tool holder, and a combination unit for versatile drilling, milling, and sawing. The machine supports a maximum workpiece thickness of 70 mm and operates with impressive X, Y, and Z travel speeds. Ideal for high-quality woodworking, consider the opportunity to buy this Weeke BHC 280.3 CNC Wood Machining Centre. Contact us for more information about this machine.

Overview

brand: Weeke
year: 2003
MODEL: BHC 280.3
application type: CNC Wood Machining
Location: Sweden
machine type: CNC Wood Machining Centre
availability: Imediately

Technical Information - Weeke BHC 280.3

General Data

Measurements width: 2300 mm
Measurements depth: 6400 mm
Measurements height: 2300 mm
Machine weight: 3600 kg

Main drive

Number of axis: 3

Movement

X-AXIS Movement: 4310 mm
X-AXIS Rapid traverse: 60 m/min
Y-AXIS Movement: 1675 mm
Y-AXIS Rapid traverse: 50 m/min
Z-AXIS Movement: 185 mm
Z-AXIS Rapid traverse: 20 m/min

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Workpiece thickness: 70 mm
- - Support table length: 3750 mm
- - Support table width: 1050 mm (standard)

Extra information

- Tools Milling Cutter: 9 kW, HSK F63, C-Axis Tool Holder Plate: 8-position, HSK-F 63 tool holder Drill Holder 1-11: Max. drill size 20 mm Drill Holder 12: Max. drill size 35 mm Horizontal Drill Holder: Max. drill size 20 mm Media Electrics & Electronics Operating Voltage: 3400 Volt, ±5% Frequency: 50 Hz Total Connected Load: Approx. 145 kW Rated Current: Approx. 26 A Recommended Pre-fuse: 35 A Protection Type: IP53 Pneumatics Quality: Standard compressed air quality according to ISO 8573-1, Quality class 3 Connection: R 1/2" Min. Pressure in Supply Line: 7 Bar Compressed Air Consumption: Approx. 100-200 L/min Extraction Extraction Connection: 0200 Connection Height: Approx. 2010 Total Extraction Capacity: Min. 3170 m3/h Air Speed: Min. 28 m/sec Pressure Loss: Conflicting information; either Min. 2200 PA or Min. 2000 PA Foundation Surface Pressure: 120 N/mm2 in the area of the support points Min. Concrete Thickness: 200 mm Concrete Quality: B25, tensile/pressure loadable Requirement: Foundation must be at ground level.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
