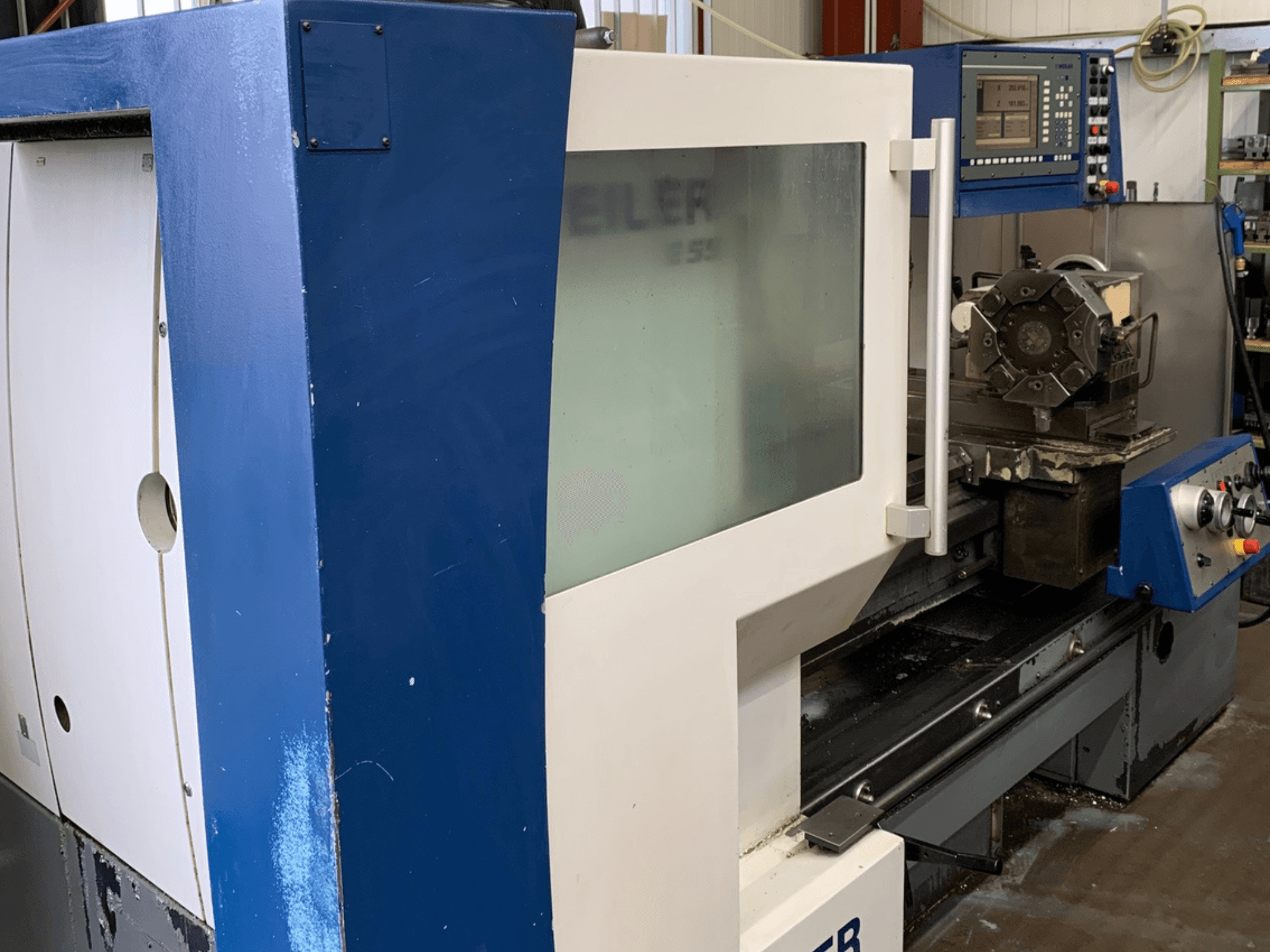

Horizontal turning machine manufactured in 2007. This Weiler E55X1000 features a maximum workpiece diameter over bed of 315 mm and a turning length of 340 mm. It is equipped with a Sauter 8-fold tool system and a spindle speed range of 1 – 2500 rpm. If you are looking to get high-quality turning capabilities, consider the Weiler E55X1000 machine we have for sale. Contact us for further details regarding this machine.
Overview
- brand: Weiler
- year: 2007
- MODEL: E55X1000
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
Technical Information - Weiler E55X1000
Dimensions
- Machine Weight: 3800 kg
Movement
- Number of Axes: 2
- X-axis Travel: 340 mm
- Z-axis Travel: 1100 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: No
- Spindle Speed: 2500 RPM
Additional Information
Internal taper: Metric 90
Spindle diameter in front bearing: 120 mm
Spindle bore: 83 mm
Flange diameter: 500 mm
Maximum workpiece diameter over bed: 315 mm
Maximum torque: 1600 Nm
Tool system: Sauter 8-fold
Number of tool positions: 8
Tool shank size: 32 x 25 mm
Turret interface: Capto C4
Number of face slides: 1
Center distance: 1100 / 2100 mm
Turning length: 340 mm
Tailstock taper: MK 5
Tailstock quill diameter: 80 mm
Tailstock quill stroke: 200 mm
Maximum tailstock travel: 1000 / 2000 mm
Gear stage I: 89 rpm at 100% duty cycle
Gear stage II: 355 rpm at 100% duty cycle
Emission level: 80 dB(A)
Operating voltage: 400 V
Control voltage: DC 24 V
Connected load: 30 kVA
Nominal current: 43 A
Frequency: 50 Hz
Main fuses: 50 A
Condition note: Ball screw in Z axis makes noise, but dimensional accuracy is not affected
Additional equipment
Extraction system
