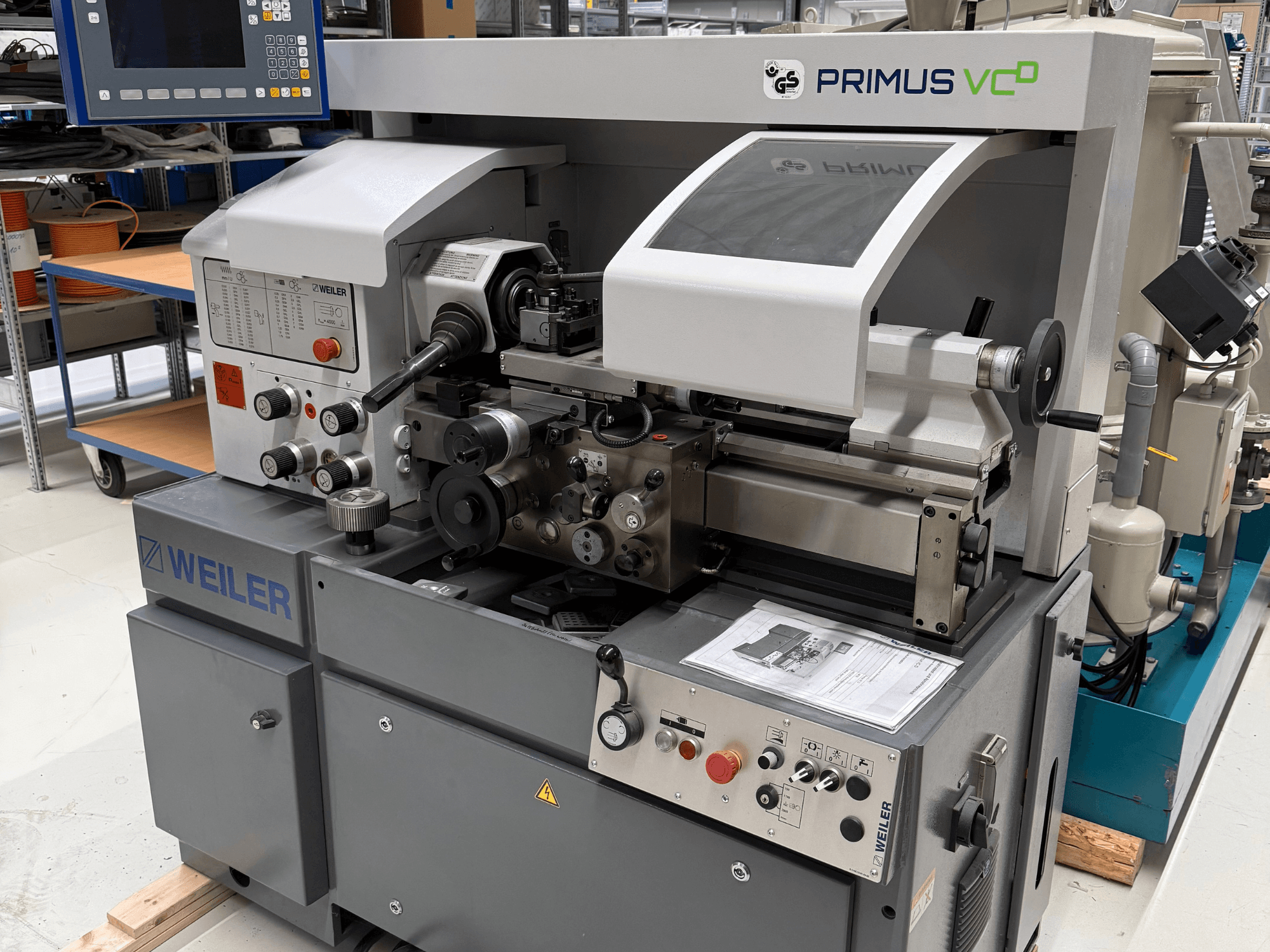

Weiler - PRIMUS VCDDE-TUR-WEI-2018-00001

• Machine Type: Centre Lathe

• Turning Length / Distance Between Centres: 500 mm

• Swing Over Bed: 280 mm

• Swing Over Cross Slide: 150 mm

• Spindle Nose (DIN 55027): Size 5

• Front Bearing Diameter: 70 mm

• Spindle Bore: 43 mm

• Main Spindle Internal Taper: ME 50

• Drive Power (100% Duty Cycle): 4 kW

• Spindle Speed Range: 30 – 4,000 rpm

• Number of Feed Rates: 24

• Longitudinal Feed Range: 0.02 – 0.63 mm/rev

• Cross Feed Range: 0.006 – 0.20 mm/rev

• Metric Thread Range: 0.25 – 8 mm

• Inch Thread Range: 80 – 2 TPI

• Module Thread Range: 0.25 – 4 Module

• Diametral Pitch (DP) Thread Range: 200 – 5 DP

• Tailstock Quill Diameter: 40 mm

• Tailstock Quill Travel: 85 mm

• Tailstock Taper: MT3

• Operating Voltage: 400 V

• Control Voltage: DC 24 V

• Connected Load: 7.5 kVA

• Nominal Current: 15.5 A

• Frequency: 50 Hz

• Main Fuses: 25 A

• Machine Weight: 1,050 kg

• Machine Dimensions (L × W × H): 1,570 × 890 × 1,700 mm

Additional Equipment

• 4-Position Quick-Change Tool Post PARAT Size 1, incl. 1 × WD 1/12 Tool Holder

• 2 × WD 1/12 Tool Holders

• Lever-Operated Collet Chuck for 173 E Collets

• 13 × 173 E Collets, Clamping Range: 3–15 mm (1 mm Increments)

• Fixed Steady Rest with Roller Jaws, Capacity: 15–100 mm

• Movable Chip Splash Guard with Viewing Window

• 8 × Levelling Elements
