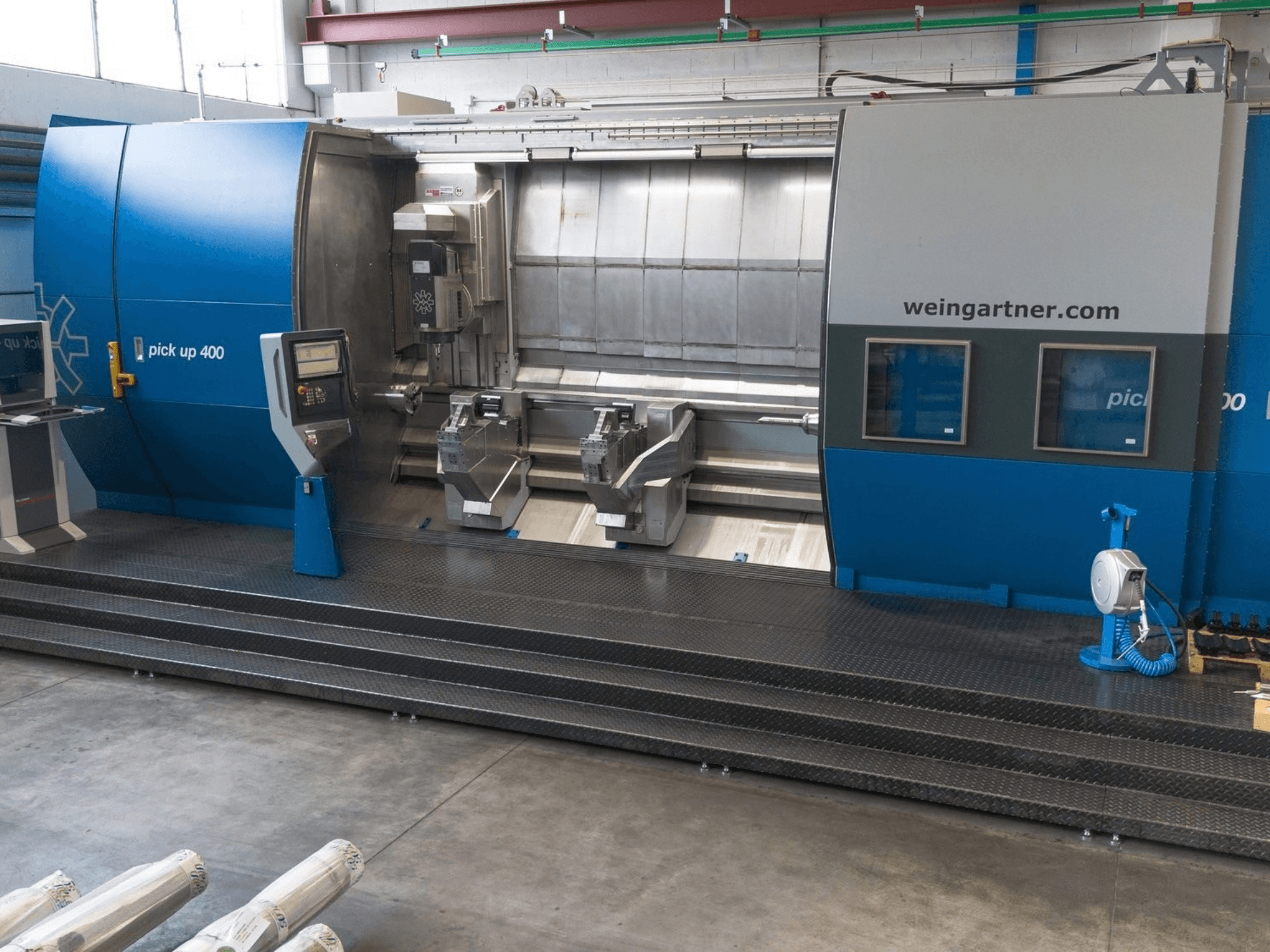

Weingartner - Pick Up 400IT-MIL-WEI-2023-00001

• Control: Siemens 840D solution line (NCU 720.3), OP19 touchscreen + Siemens TP700 touch panel

• Simultaneous machining: 5-axis; B‑axis turning

• Workpiece capacity: max length between centers 4,000 mm; max diameter for milling 180 mm; chuck size Ø260 mm

• Power supply: 3 × 400 V / 50 Hz; main fuse approx. 200 A

Axes

• X: travel 450 mm; rapid 20 m/min

• Y: travel −80 / +150 mm; rapid 20 m/min

• Z: rapid 25 m/min

• B: swivel range ±45°; max swivel speed 90°/s; clamping torque 5,000 Nm

• C: max speed 50 rpm; max torque 1,740 Nm (cont.) / 2,580 Nm (40% duty)

• W (tailstock slide): rapid 15 m/min

• VZ1 / VZ2 (steady rest slides): rapid 15 m/min

Turning / Milling Unit

• Unit: UFE-400; tool spindle: MDFK

• Power: 45 kW (continuous) / 70 kW (40% duty)

• Max spindle speed: 14,000 rpm; nominal speed: 1,560 rpm

• Torque: 275 Nm (continuous) / 430 Nm (40% duty)

• Tool interface: HSK 100‑T (compatible HSK 100‑A / HSK 100‑T); additional interface: Capto C8

• Internal coolant: 80 bar; 20 l/min

Tailstock

• Hydraulically operated quill; diameter 190 mm; stroke 200 mm; Morse taper MK6

Machine equipment / configuration

• Front and rear self-centering steady rests; independently CNC-positionable

• 2 prismatic steadies for screw milling

• Steady jaw ranges: 15–30 / 30–65 / 65–140 / 140–200 mm

• Hydraulic SMW KNCS‑N 260 power chuck with quick jaw change

• Central lubrication system

• Fully enclosed machine housing with driven safety doors; Visiport inspection windows

• Hydraulic and pneumatic systems

• Coolant and oil mist extraction preparation

• Electronic hand control for B/C/X/Y/Z axes

Software / control functions

• Siemens Safety Integrated; Profibus / Profinet; OPC UA interface

• 5‑axis simultaneous machining; B‑axis turning; TRANSMIT / TRACYL

• Temperature compensation X/Y

• DNC remote diagnostics; WMDS Diagnostic System; Telediagnosis capability

• weinCAD EXTRUDER DESIGNER; WeinEXT – Praxis

Additional equipment

• Hinge-belt chip conveyor

• Coolant filtration system KF 200: 1,400 l tank; 40 µm filtration; high‑pressure pump 80 bar / 46 l/min; low‑pressure pump 13 bar / 160 l/min; automatic oil skimmer

• Oil mist extraction unit: airflow approx. 4,000 m³/h

• Operating platform with stairs and railing
