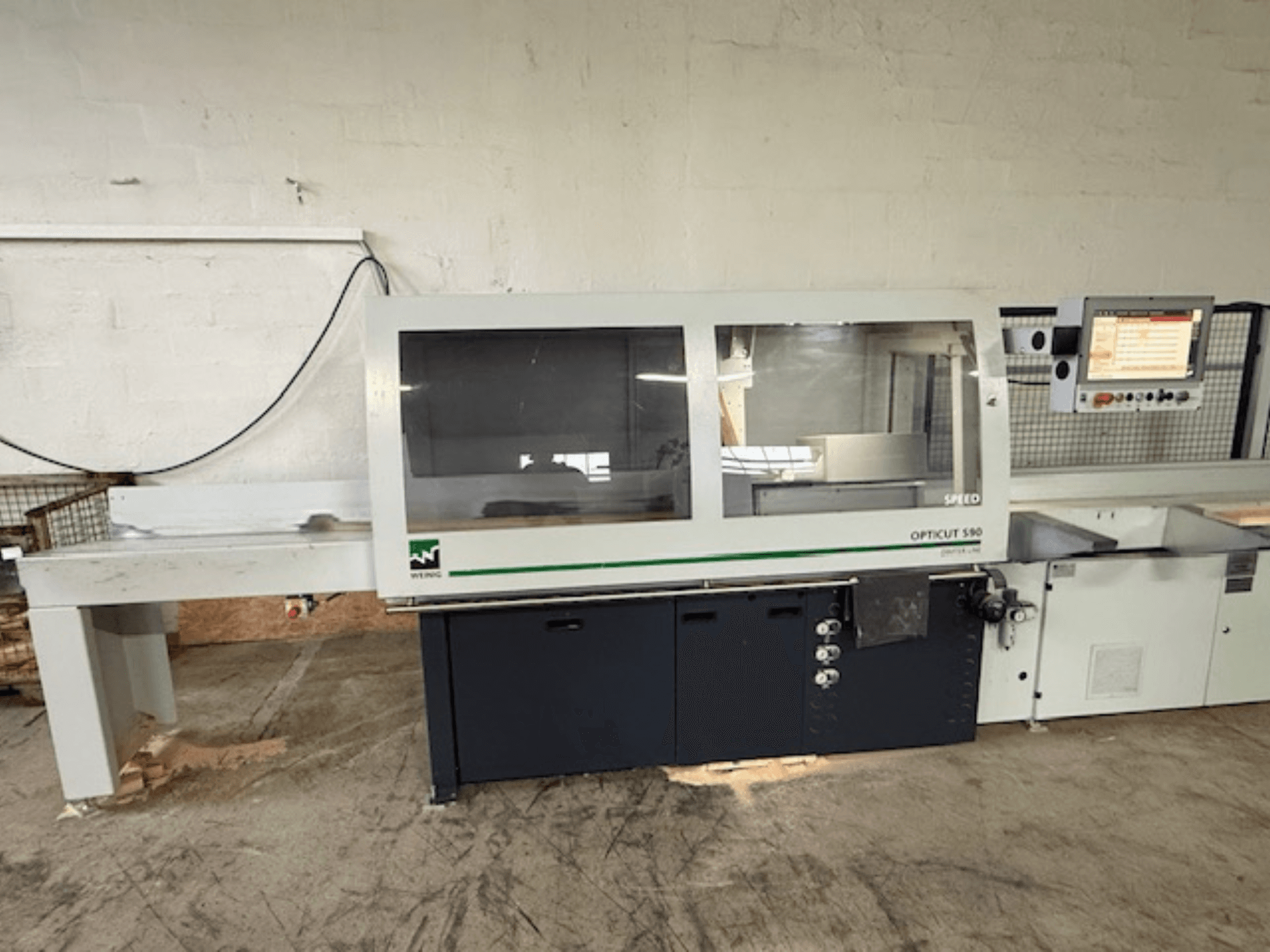

WEINIG OPTICUT S90 optimizing cross-cut saw, front view showing control panel, saw unit, and feed table.
WEINIG OPTICUT S90 optimizing cross-cut saw, front view showing control panel, saw unit, and feed table.

WEINIG / DIMTER - Opticut S90DE-SAW-WEI-2018-00001

62,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

Optimizing Cross-Cut Saw manufactured in 2018. This WEINIG DIMTER Opticut S90 features a saw blade diameter of 500 mm and a maximum cutting height of 120 mm. It accommodates input lengths from 400 to 6,300 mm and widths from 20 to 300 mm. If you are looking to get high-quality cutting capabilities, consider the WEINIG DIMTER Opticut S90 machine we have for sale. Contact us for further details.

Overview

  • brand: WEINIG / DIMTER
  • year: 2018
  • MODEL: Opticut S90
  • application type: Sawing (Wood)
  • Location: Germany
  • machine type: Optimizing Cross-Cut Saw

Additional Information

  • Saw blade

    • Diameter: 500 mm

    • Bore: 30 mm

    • Adjustable saw blade speed: 40–100% via frequency converter

  • Workpiece capacity

    • Input length (min/max): 400–6,300 mm

    • Width (min/max): 20–300 mm

    • Thickness (min/max): 10–120 mm

    • Maximum cutting height: 120 mm

    • Minimum cross-section: 20 x 10 mm

    • Maximum cross-section 1: 215 x 120 mm

    • Maximum cross-section 2: 300 x 40 mm

    • Permissible timber curvature: max 2 mm/m or 8 mm over entire length

    • Table inclination: 10°

  • Motion and accuracy

    • Positioning speed (reverse stroke): max approx. 180 m/min

    • Positioning speed (forward stroke): max approx. 60 m/min

    • Positioning accuracy: +/- 0.1 mm

  • Motors and power

    • Pusher motor power: 5.1 kW

    • Saw motor power: 7.5 kW

    • Total electrical load: approx. 15 kW

  • Control and interface

    • Control unit: OptiCom Pro with 18.5" touch screen

    • Screen resolution: 1366 x 768 pixels

    • Protection class (front): IP65

    • Interface: USB port and Ethernet network connection

    • Data format: CSV (ASCII) for import/export

  • Utilities and environment

    • Voltage: 400 V / 50 Hz

    • Operating pressure: 6–8 bar (min.)

    • Air consumption: approx. 250 NL/min

    • Extraction connection: diameter 125 mm

    • Required extraction performance: speed approx. 30 m/s; volume approx. 1,300 m³/h

    • Noise level (idling): ≤ 85 dBA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
