Wenzel - LH 54DE-MEA-WEN-2003-00001

Name: Wenzel LH 54
Brand: Wenzel
SKU: DE-MEA-WEN-2003-00001
Price: 34000 EUR
Availability: InStock

34,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Wenzel LH 54 - 2003 - CMM For Sale | gindumac.com

Show in original language

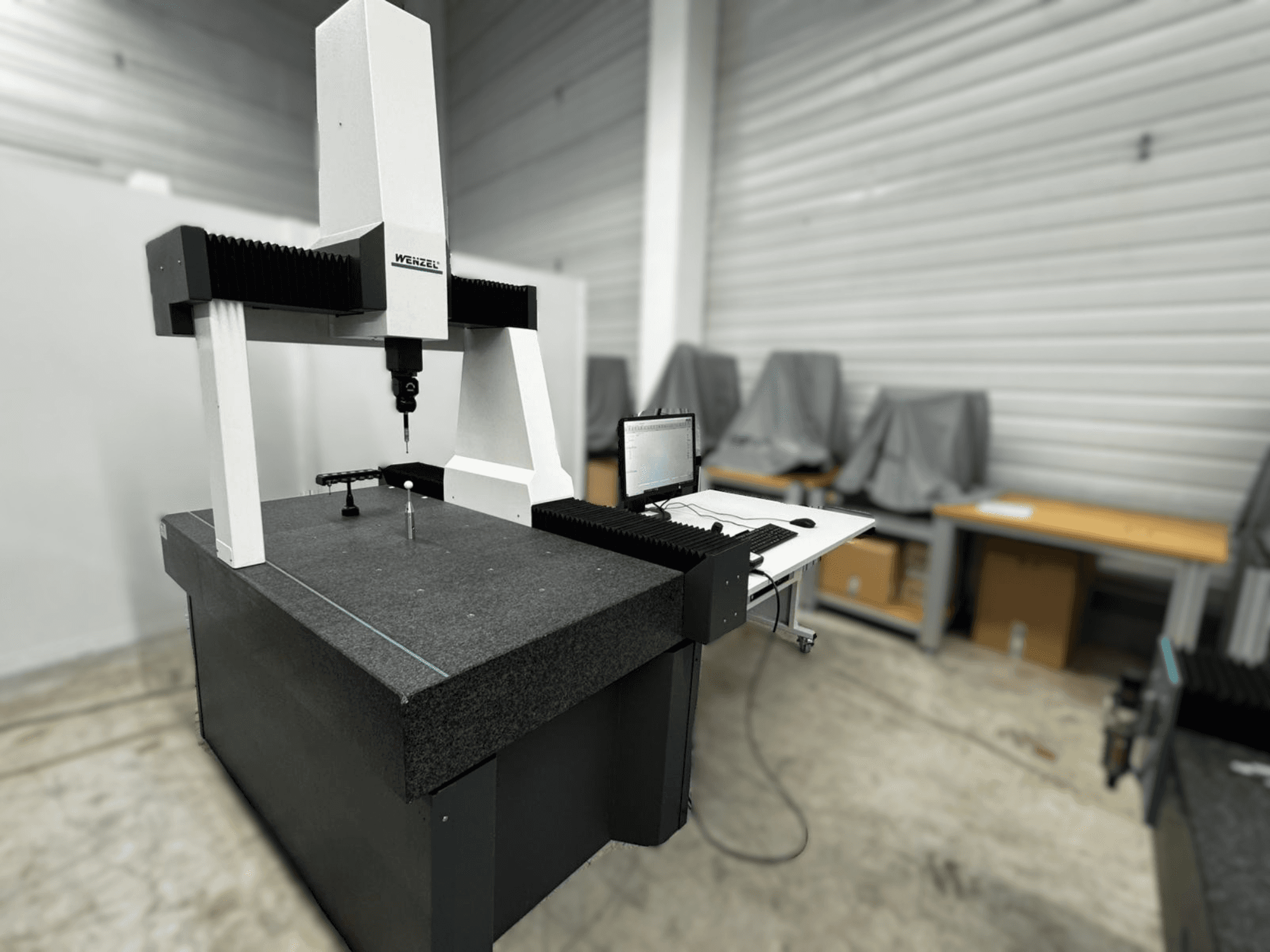

This 5-axis Wenzel LH 54 CMM machine was manufactured in 2003. It features a measuring range of 500 mm in the X-axis, 1000 mm in the Y-axis, and 400 mm in the Z-axis. The machine includes a granite structure base, air bearing guideways, and a portal design, making it suitable for quality assurance and series production applications. If you are looking to get high-quality measurement capabilities, consider the Wenzel LH 54 CMM machine we have for sale. Contact us for further details.

Overview

brand: Wenzel
year: 2003
MODEL: LH 54
application type: Measuring
Location: Germany
machine type: Coordinate Measuring Machine (CMM)

Technical Information - Wenzel LH 54

Movement

Number of Axes: 5
X-axis Travel: 500 mm
Y-axis Travel: 1000 mm
Z-axis Travel: 400 mm

Additional Information

Condition: completely checked and retrofitted; new software
Machine design: granite structure base; air bearing guideways; portal design
Applications: quality assurance; series production
Availability: currently powered and available for demonstration
Calibration/verification: factory calibration certificate available; determination of length measurement uncertainty, probing uncertainty, and repeatability range
Measuring range: maximum space diagonal 4660 mm
Measurement uncertainty: E0 = 2.5 + L/300 µm
Controls and software: controller WPC2040 Basic; installed software WM Quartis R2026-1
Probe system: TP20; probe head PH10T; probe head interface PHC10-3 PLUS; probe interface PI200 Combi; joystick HT400
Options and services: measurement program creation for customer parts available; optional upgrade with Renishaw SP25M probe system (additional hardware and service included with upgrade); additional software modules on request; custom accessories and fixturing systems available

Additional equipment

PC system with Windows 11 (compliant with current Wenzel requirements) and WM Quartis R2026-1 installed
2 × 24" TFT monitors (new)
Mouse and keyboard
Probe change rack MCR20 (unpopulated/empty)
1 × TP20 Standard Force Module
Stylus kit M2

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
