WMW-Heckert - SZ10-10-03DE-GRI-WMW-1989-00001

Name: WMW-Heckert SZ10-10-03
Brand: WMW-Heckert
SKU: DE-GRI-WMW-1989-00001
Price: 40000 EUR
Availability: InStock

40,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used WMW-Heckert SZ10-10-03 For Sale | gindumac.com

Show in original language

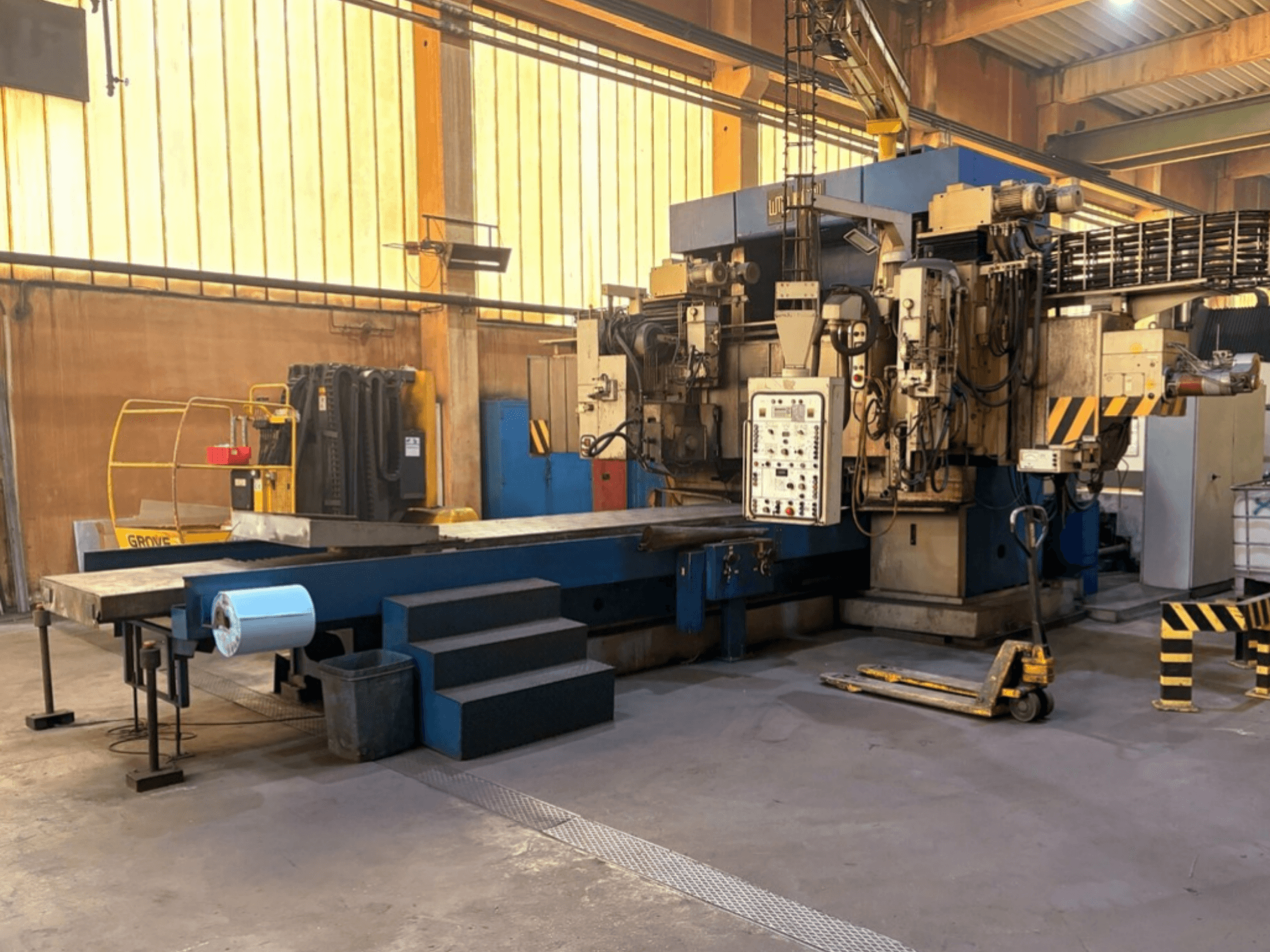

This 3-axis WMW-Heckert SZ10-10-03 surface grinding machine was manufactured in 1989. It features a grinding length of 3,000 mm and a working width of 1,250 mm, with a maximum workpiece weight of 9,450 kg. The machine includes a clamping table surface of 3,230 x 1,000 mm and a permissible table load of 3,150 kg/m. If you are looking to get high-quality grinding capabilities, consider the WMW-Heckert SZ10-10-03 machine we have for sale. Contact us for further details.

Overview

brand: WMW-Heckert
year: 1989
MODEL: SZ10-10-03
application type: Grinding
Location: Germany
machine type: Surface Grinding Machine
control unit brand: SIEMENS

Technical Information - WMW-Heckert SZ10-10-03

Control Unit

Control Brand: SIEMENS

Movement

Number of Axes: 3
X-axis Travel: 3000 mm

Additional Information

- Grinding / Working Length: 3,000 mm

- Grinding / Working Width: 1,250 mm

- Grinding / Working Height: 1,000 mm

- Clearance Width Between Columns: 1,410 mm

- Clearance Width Between Covers: 1,310 mm

- Clearance Height: Max. 1,120 mm

- Table Height Above Workshop Floor: Approx. 785 mm

- Clamping Table Surface: 3,230 x 1,000 mm

- T-Slots (per TGL 3045): 8 slots; Width 22H12 mm; Spacing 125 mm

- Permissible Table Load: 3,150 kg/m (evenly distributed)

- Maximum Workpiece Weight: 9,450 kg

- Table Speed: Infinitely variable 2 – 50 m/min

- Crossbeam Traverse Speed: 560 mm/min

- Overall Machine Dimensions (L x W x H): Approx. 10,700 x 7,395 x 4,710 mm

- Total Machine Weight: 39.3 t (nameplate) / approx. 50,000 kg (technical data sheet)

- Main Power Supply: 3N~ / 50 Hz, 380 V - Control Voltage: 110 V

- Auxiliary Voltage: 24 V - Connected Load: 126 kW

- Machine Rated Current: 190 A - Mains Supply Fuse: 224 A slow-blow

- Grinding Supports: Surface grinding support and swiveling grinding support

- Control / Interface: Swiveling control pendant equipped with a Siemens SIMATIC OP3 panel and analog controls/dials

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
