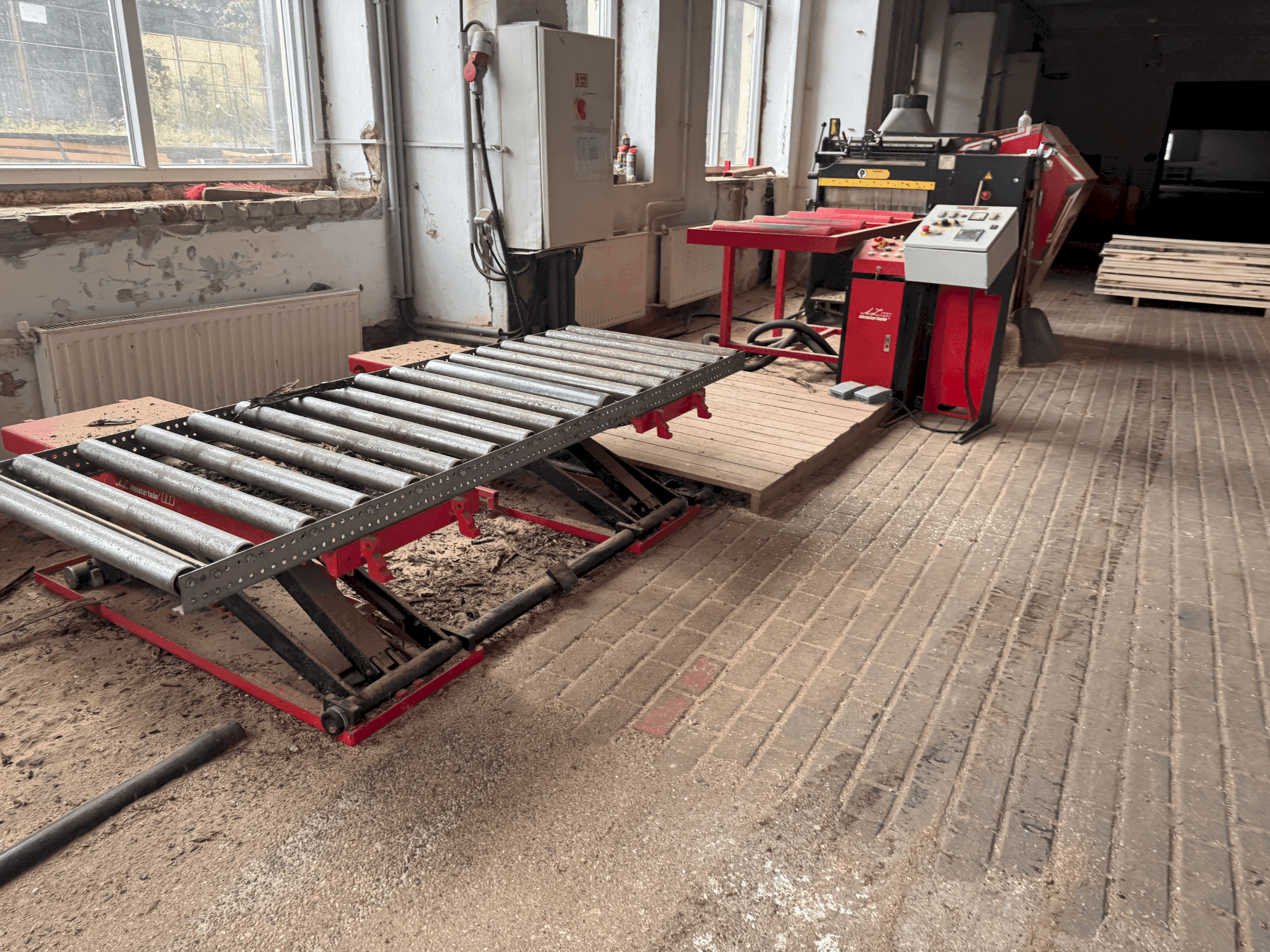

Front view of WRAVOR Multirip 750 20-100  machine

WRAVOR - Multirip 750 20-100HU-SAW-WRA-2023-00001

47,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This WRAVOR Multirip 750 20-100 was manufactured in 2023. It features a maximum cutting thickness of 100mm and a width of 750mm. The machine includes a robust hydraulic system with a 60 bar operating pressure and a 1.1 kW pump drive. It also boasts a high-powered main spindle drive of 22 kW and a conveyor system powered at 0.75 kW. Consider the opportunity to buy this WRAVOR Multirip 750 20-100 Circular Wood Saw. Contact us for more information.

Overview

  • brand: WRAVOR
  • year: 2023
  • MODEL: Multirip 750 20-100
  • application type: Sawing (Wood)
  • Location: Hungary
  • machine type: Circular Wood Saw
  • availability: Immediately

Technical Information - WRAVOR Multirip 750 20-100

General Data

  • Measurements width: 1893 MM
  • Measurements depth: 2033 MM
  • Measurements height: 1790 MM
  • Machine weight: 2100 KG

Main drive

  • Spindle speed range: 2800 1/MIN
  • Spindle motor power: 22 kW
  • Maximum sheet thickness: 20 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Max width: 750 mm
      • - Circular blade: circular blade for side cut with cleaners
      • - Number and type of lasers: 3 pcs – 10 mw
      • - Pump drive: 1. 1 kw
      • - Pump flow rate: 9 l/min
      • - Tank capacity: 5 l
      • - Hydraulic system operating pressure: 60 bar
      • - Hydraulic system safety valve: 80 bar
      • - Saw blades diameter: Ø 250 mm
      • - Air velocity: 30 m/s
    • Qualitative Machine Benefits:
      • - Air flow: 5000 m³/h
      • - Rated power: 24 kw
      • - Conveyor: 0. 75 kw
      • - Hydraulic drive: 1. 1 kw
      • - Permissible load on main em: 44 a
      • - Supply voltage: 3n ~ 400/230 v
      • - Frequency: 50 hz
      • - Control voltage: 24 vdc
      • - Precursor: 63 a
      • - Connection cable cross-section: 16 mm²

    Extra information

    • - Machine still under power. Allowed Voltage Drop When Entering the Electrical Cabinet: 5%. The number of circular blades depends on the thickness and type of wood.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
