XYZprinting 200TC LT

Photo Gallery

XYZprinting - 200TC LTHU-TUR-XYZ-2008-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

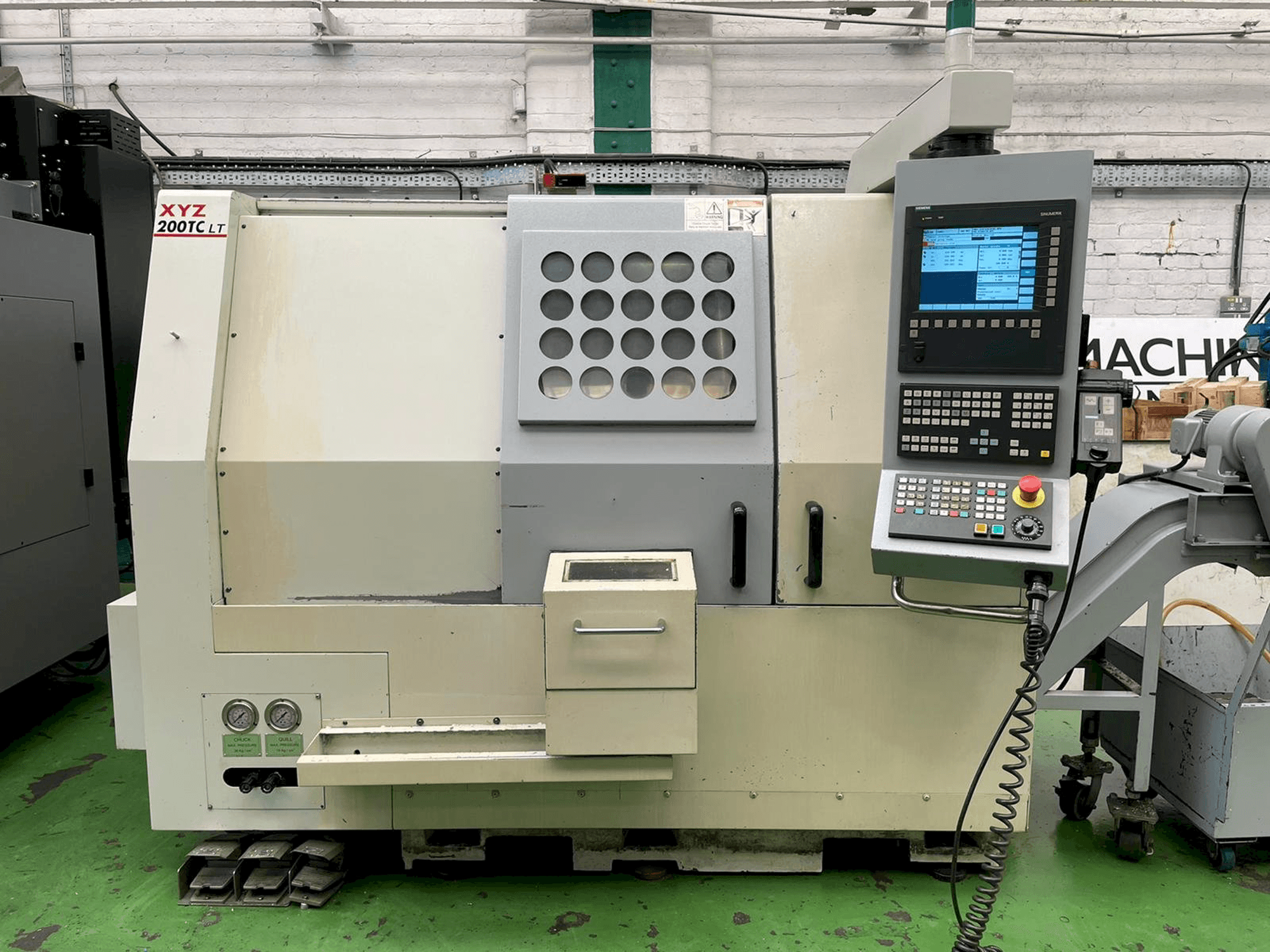

XYZ 200TC LT Lathe

Show in original language

This XYZ 200TC LT Lathe machine was manufactured in the year 2008. It is equipped with a SIEMENS POWERLINE 810D control unit. The machine has a spindle speed up to 4800 rpm. It includes 3-jaw hydraulic chuck D of 210 mm, an electric handwheel and their documentation.

Overview

brand: XYZprinting
year: 2008
MODEL: 200TC LT
application type: Turning
Location: Hungary
machine type: Turn-Mill Centre
control unit brand: SIEMENS

Technical Information - XYZprinting 200TC LT

General Data

Measurements width: 2200 mm
Measurements depth: 1900 mm
Measurements height: 2150 mm
Machine weight: 4100 KG

Control Unit

Model: POWERLINE 810D
Brand: SIEMENS

Main drive

Spindle speed range: 4800 1/MIN
Spindle motor power: 14.7 kW

Additional Information

Additional equipment

3-jaw hydraulic chuck D210 mm
Built-in tool gauge
Workpiece catcher
Hinged chip carrier
Hydraulic saddle
Programmable C axis with 0.001 degree accuracy
Driven tool turret
Spare standard and driven tool holders
Foot pedals
Tool cooling

Machine Benefits

Qualitative Machine Benefits

Excellent condition
Machine documentation

Technical Machine Benefits

Max swivel diameter: 420 mm
Max turnable diameter: 200 mm
Max turning length: 550 mm
Revolver head duplomatic 12 position (vdi30)
Spindle throughput d62 mm (bar capacity d52 mm)
Electric handwheel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
