- Yang ML 25A Lathe
Show in original language

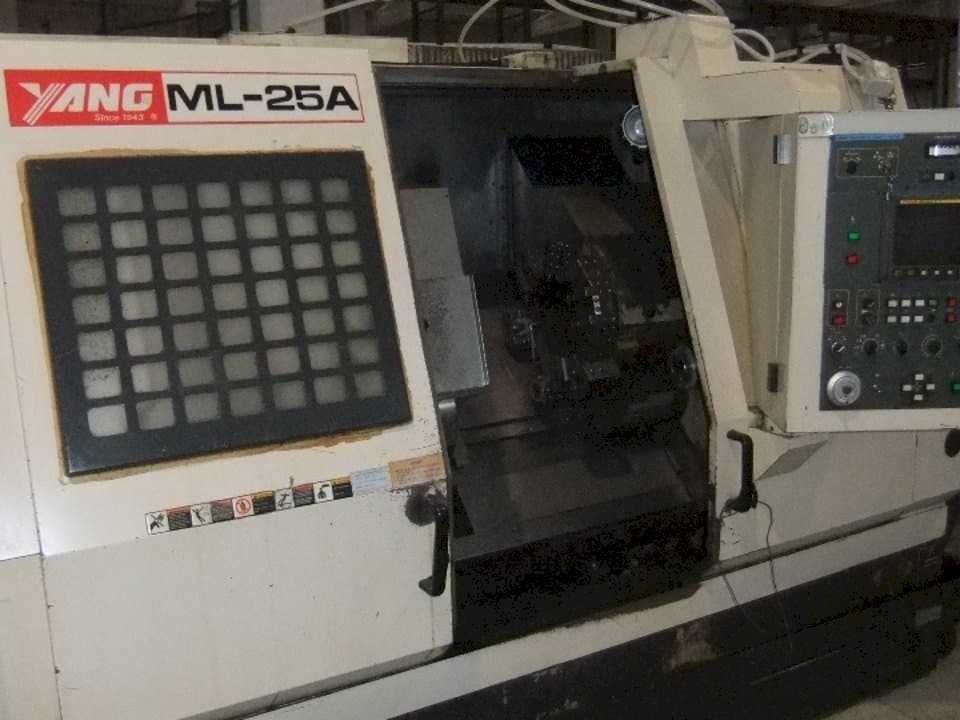

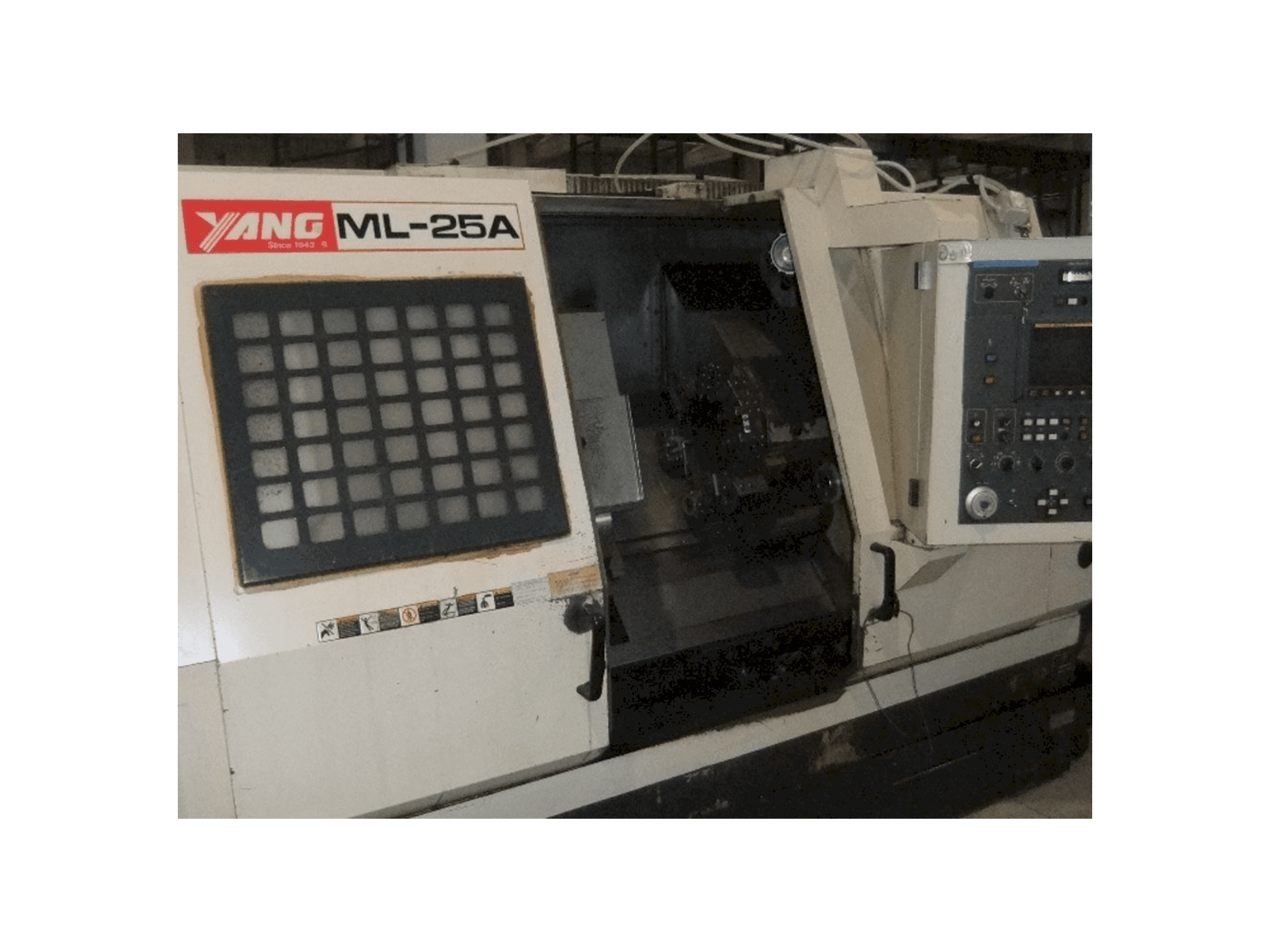

This Yang ML 25A Lathe was built in the year 1996. It is equipped with a FANUC OT control unit. This 2 axis machine operates with a spindle speed range between 45 - 4500 rpm. Includes self-centering automatic and auto turret with 6 positions.
Overview
- brand: Yang
- year: 1996
- MODEL: ML 25A
- application type: Turning
- Location: Italy
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - Yang ML 25A
Control Unit
- Control Brand: FANUC
- Control Model: OT
Dimensions
- Machine Depth: 2000 mm
- Machine Height: 2200 mm
- Machine Weight: 5000 kg
Movement
- Number of Axes: 2
Technical Specification
- Spindle Power: 11 kW
- Spindle Speed: 4500 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Tailstock diameter: 85 mm
- Maximum travel tailstock: 449 mm
- Self-centering automatic diam. : 300 mm
- Auto turret. 6 pos
Technical Machine Benefits
- Center height: 295 mm
- Distance between centers: 600 mm
- Turnable diameter on the carriage: 350 mm
- Bench inclination deg. 45 °
- Diameter admitted on the bed: 550 mm
- Maximum longitudinal stroke: 520 mm
- Max. Turning for max. Turning length: Ø280 mm x 520 mm
- Rapid z axis feeds: 12 m/min
- Rapid feeds x axis: 20 m/min
- Cone tip of the head mt 7
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
