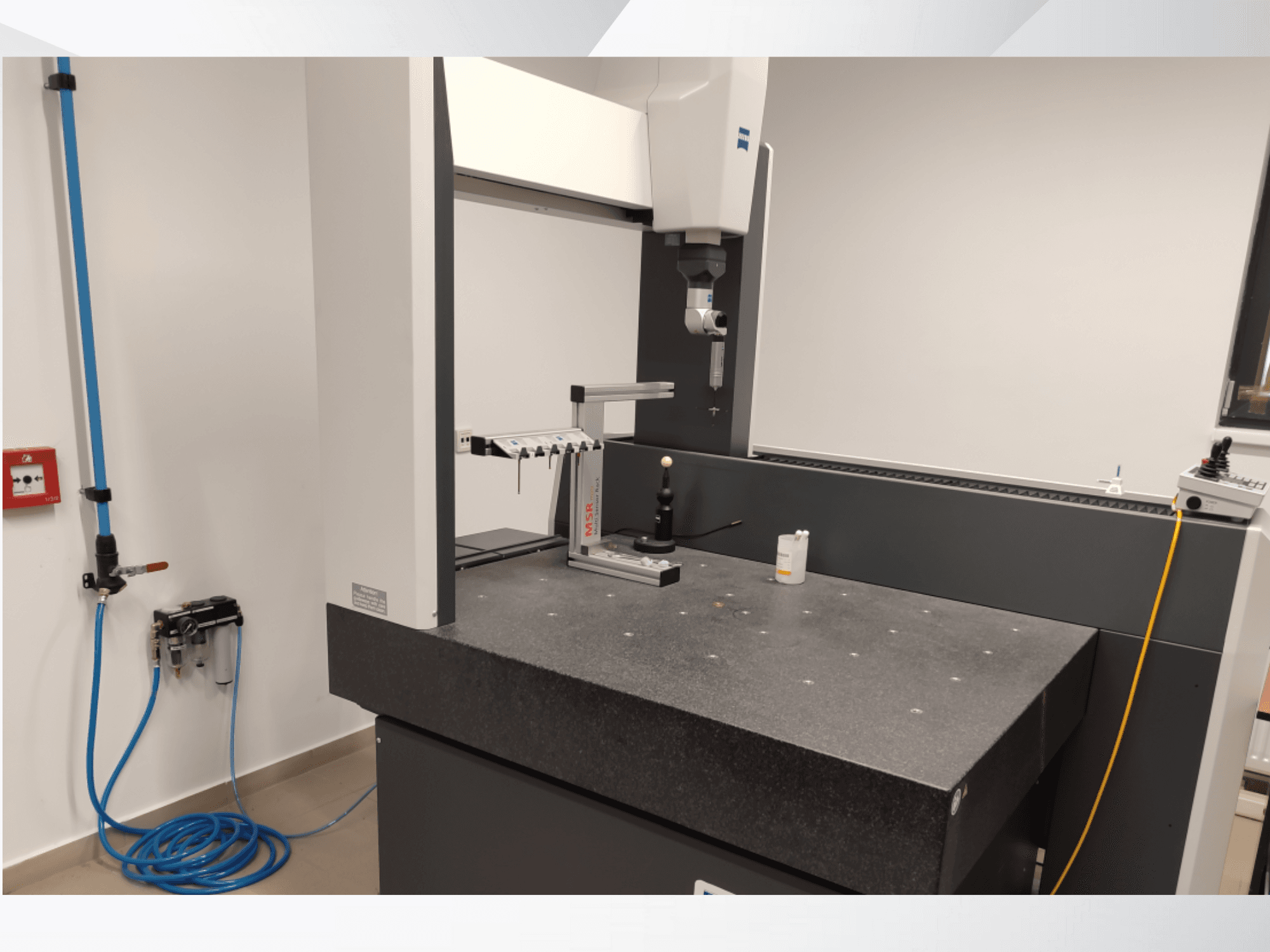

This 3-axis ZEISS Contura 7/10/6 RDS was manufactured in 2019 and features a robust motorized CNC drive system with a maximum vector speed of 465 mm/s. It includes the ZEISS RDS-C articulating head and VAST XXT TL3 sensor, capable of scanning speeds up to 150 points/second. Ideal for precise measurements with a maximum workpiece weight of 730 kg. Consider the opportunity to buy this ZEISS Contura 7/10/6 RDS CMM machine. Contact us for more information about this machine.
Overview
- brand: ZEISS
- year: 2019
- MODEL: Contura 7/10/6 RDS
- application type: Measuring
- Location: Romania
- machine type: Coordinate Measuring Machine (CMM)
Technical Information - ZEISS Contura 7/10/6 RDS
Dimensions
- Machine Depth: 1975 mm
- Machine Height: 2797 mm
- Machine Weight: 1570 kg
Additional Information
Additional information
Maximum workpiece size: approx. 1344 x 910 x 716 mm
Maximum workpiece weight: 730 kg
Table height: 850 mm
Equipped with vibration damping system
Sensor System:
Articulating head: tilt ±180°, rotation increments 2.5°
Scanning speed: up to 150 points/second
Max. stylus length: 150 mm
Max. stylus weight: 15 g
Min. stylus tip diameter: 0.3 mm
Accuracy (per ISO 10360 standards):
Length measurement error (E₀): 1.7 + L/350 µm (at 18–22°C)
Scanning error (THP): 2.7 µm
Form measurement error (RONt): 1.7 µm
Repeatability (R₀): 1.2 µm
Controller: ZEISS C99L
Software: ZEISS CALYPSO, ZEISS GEAR PRO, ZEISS HOLOS
Control mode: Motorized / CNC
Interface: Ethernet, USB
Performance:
Drive system: Motorized CNC
Travel speed (axes): 0–70 mm/s
Max. vector speed: 465 mm/s
Max. acceleration: 1.85 m/s²
Scanning speed: up to 125 mm/s
Utilities:
Power supply: 100–240V AC (±10%), 50–60 Hz
Max. power consumption: 800 VA
Typical power usage: 200 W
Compressed air: 6–8 bar, pre-cleaned, dry (ISO 8573-1 Class 4)
Air consumption: max. 120 Nl/min
Environmental Conditions:
Operating temperature: 18°C–22°C
Relative humidity: 30–60% (non-condensing)
Compliance & Certifications:
Conforms to EC Machine Directive 2006/42/EC
EMC Directive 2014/30/EU
Quality management: ISO 9001:2008
Environmental management: ISO 14001:2004
Accredited ISO / IEC 17025:2005
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
