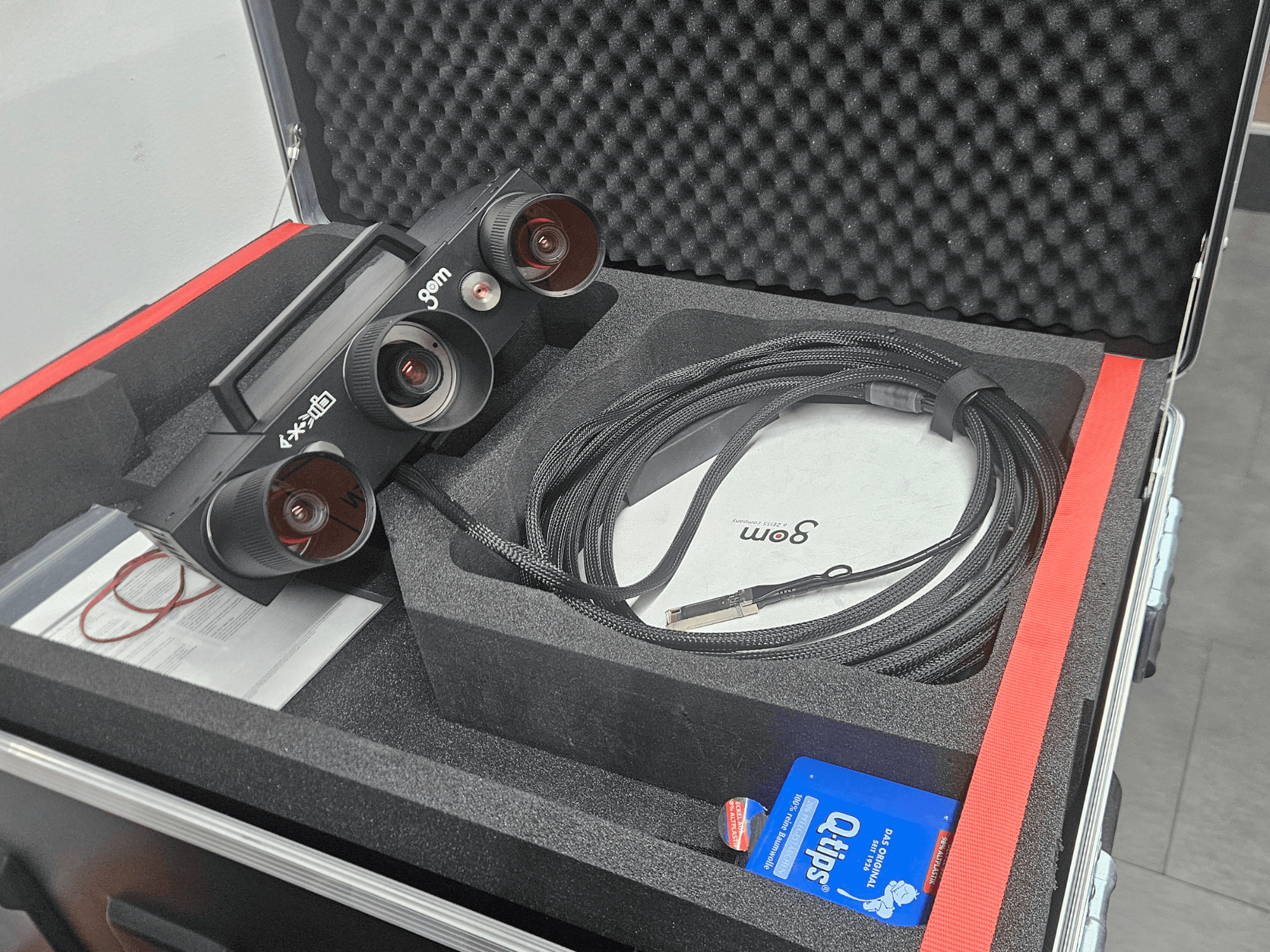

Optical measurement machine manufactured in 2022. This ZEISS GOM ATOS Q features a scanning principle based on the Triple Scan Principle and utilizes LED structured blue light for precise measurements. If you are looking to get high-quality optical measurement capabilities, consider the ZEISS GOM ATOS Q machine we have for sale. Contact us for further details.

Overview

  • brand: ZEISS
  • year: 2022
  • MODEL: GOM ATOS Q
  • application type: Measuring
  • Location: Germany
  • machine type: Optical Measurement Machine
  • control unit brand:

Additional Information

  • ZEISS ATOS Q – Optical 3D Measuring System

  • System type: Industrial structured-light 3D scanner

  • Measuring principle: Fringe projection / Triple Scan technology

  • Light source: LED with Blue Light Equalizer

  • Laser pointer for distance adjustment

  • Cameras: 2 × 8 megapixel CMOS

  • Camera resolution: 3357 × 2456 pixels

  • Measuring fields included:

  • 350 × 260 mm

  • 170 × 130 mm

  • Sensor dimensions: approx. 325 × 240 × 90 mm

  • Sensor weight: approx. 4 kg

  • Robust industrial housing

  • Fiber-optic sensor cable connection

  • Calibration objects with DAkkS certificate

  • Acceptance test according to VDI/VDE 2634 Sheet 3

  • Traceable acceptance certificate

  • Mobile controller: Converter box with image processing card (fiber optic to Thunderbolt)

  • External power supply

  • Workstation (Laptop 7760 Mobile): Intel 2.6 GHz Octa-Core CPU

  • 64 GB RAM

  • NVIDIA Quadro graphics card

  • 17" display

  • 1 TB SSD

  • External USB backup drive

  • WiFi / LAN / USB 3.2 / Thunderbolt

  • Operating system: Windows 10 (64-bit)

  • Software: ZEISS Quality Suite

  • ATOS sensor driver

  • GOM Inspect

  • CAD import formats: IGES, STEP, VDA, JT, STL, PLY

  • Export formats: STL, G3D

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
