Zeroclamp - Zerobot 100PDE-ROB-ZER-2014-00001
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Automation Equipment
- ➤ Used Zeroclamp Zerobot 100P For Sale | gindumac.com
Show in original language

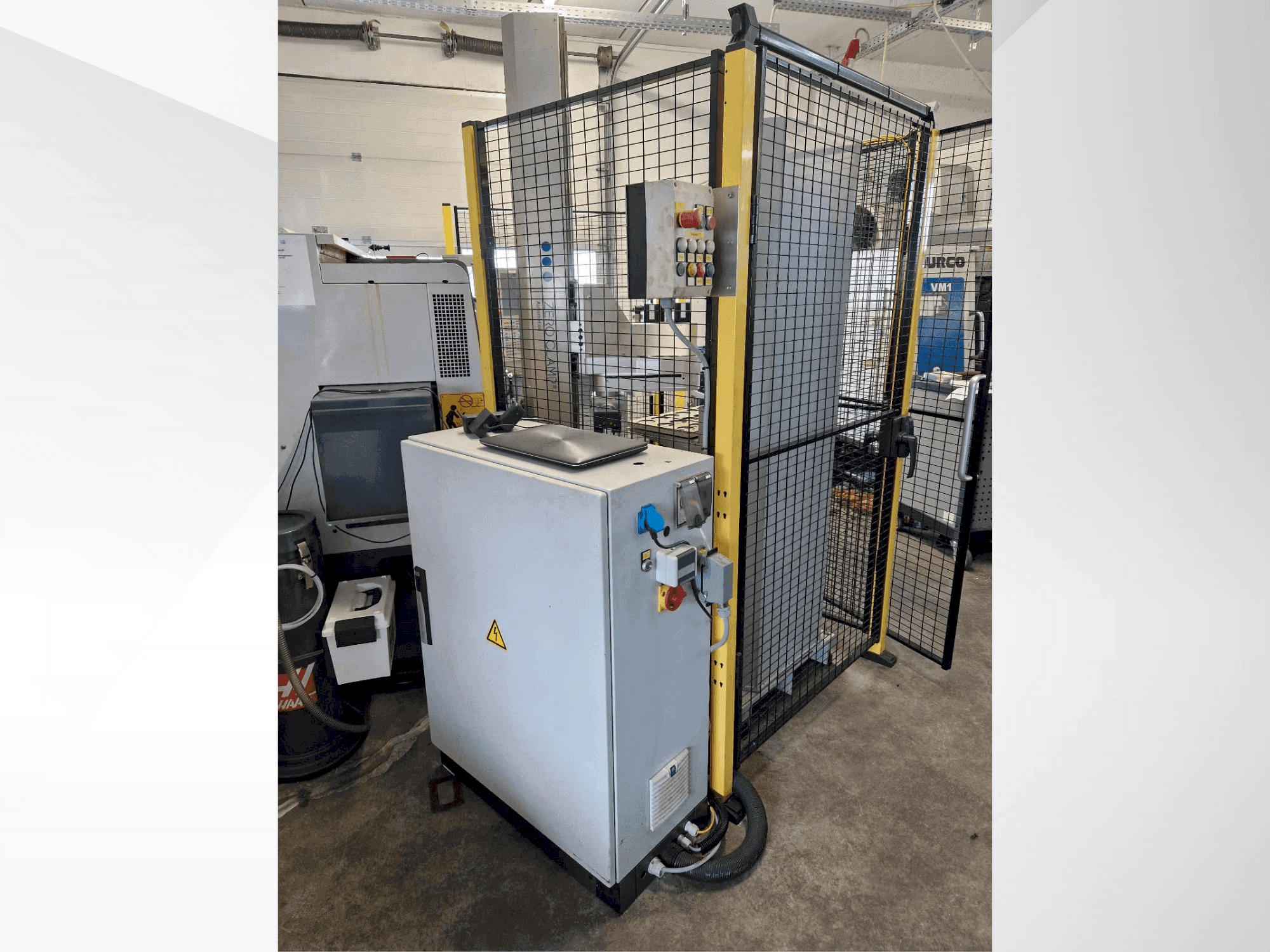

This Zeroclamp Zerobot 100P was manufactured in 2014. It is an automation system designed for efficient operations. Ideal for those looking to enhance their automation capabilities. Contact us for more information.
Overview
- brand: Zeroclamp
- year: 2014
- MODEL: Zerobot 100P
- application type: Other Automation Equipment
- Location: Germany
- machine type: Automation System
Technical Information - Zeroclamp Zerobot 100P
Movement
- Number of Axes: 4
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Production materials that may be used are: workpieces made of metal, non-ferrous metals, non-ferrous metals and plastic that do not generate explosive dusts
Technical Machine Benefits
- Zeroclamp 100p, 2 racks, 1 gripper for turned parts, protective enclosure
- Hinged door: 3040 x 1750 x 2630 mm
- Safety fence 1 rack: 3025 x 1660 x 2520 mm (approximate) / safety fence 2 racks: 2410 x 1775 x 2520 mm (approximate) / the protective fence dimensions vary depending on the machine type.
- Dimensions racks: 663 x 666 x 1931 mm / robot dimensions: 660 x 1323. 5 x 2500 mm
- Weight of the robot: approx. 380 kg / weight of a rack without load: approx. 216 kg / weight of the protective housing: revolving door: approx. 150 kg / protective fence: not specified
- 4 axes: a, b, c, z
- Operating temperature: minimum: +5 °c / maximum: +40 °c / air humidity / maximum: 50% at +40°c / higher relative humidities are permissible at lower temperatures (e. G. 90% at +20°c). / altitude: the maximum permissible altitude is 1000m
- Electrical data: mains voltage 400 v /current 16 a /frequency 50 hz /maximum power 6. 4 kw /required phases l1, l2, l3, n, pe /voltage between phase conductor and neutral conductor approx. 230 v /voltage between two outer conductors approx. 400 v
- Pneumatic data: minimum: 6 bar /maximum: 8 bar
- Airborne noise: the a-weighted sound pressure level is below 70 db(a).
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
