Zoller H420

Photo Gallery

Zoller - H420DE-MEA-ZOL-2018-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Zoller H420 Measuring Machine

Show in original language

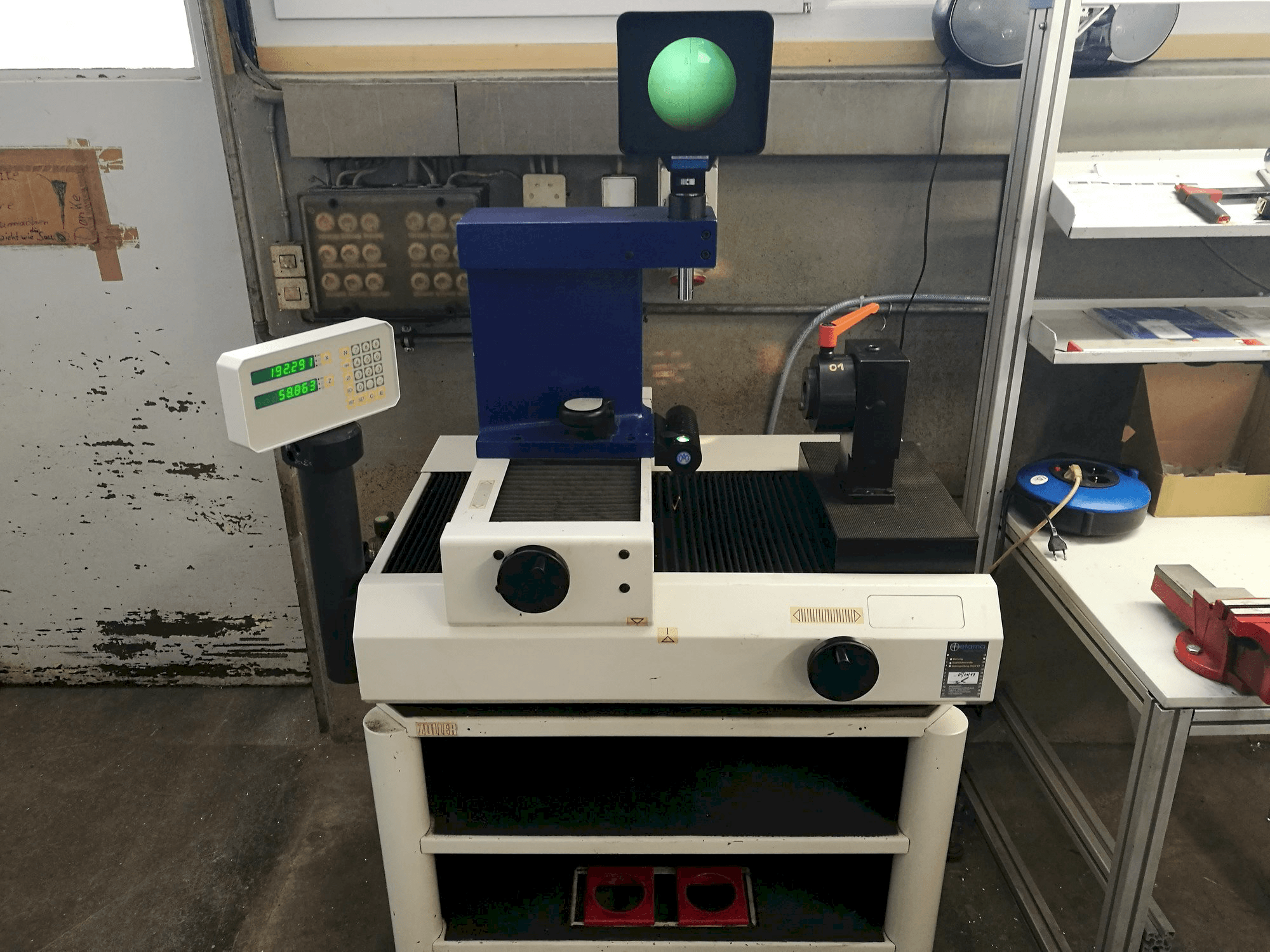

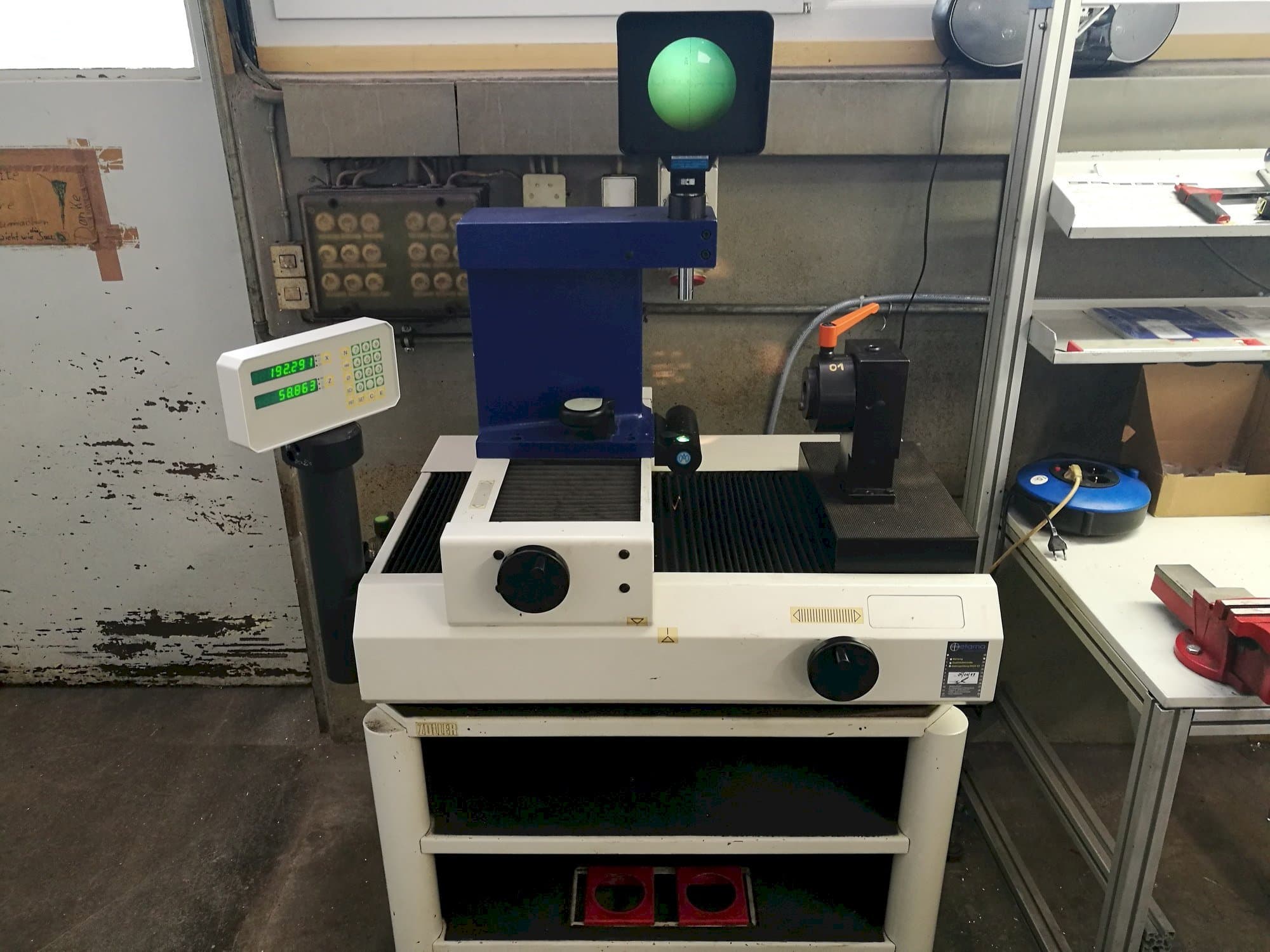

This Zoller H420 Measuring Machine was manufactured in Germany. It is equipped with a digital display control unit. This model comes with a Marcela Aubert camera and a resolution of 1 MP. The machine includes a tool holder VDI40. It was refurbished in 2018.

Overview

brand: Zoller
year: 2018
MODEL: H420
application type: Measuring
Location: Germany
machine type: Optical Measurement Machine

Technical Information - Zoller H420

General Data

Measurements width: 1000 mm
Measurements depth: 800 mm
Measurements height: 1800 mm
Machine weight: 450 kg

Main drive

Camera: Marcel Aubert
Resolution: 1 MP

Movement

X-AXIS Movement: R 200 mm
Z-AXIS Movement: 400 MM

Table

Number of tslots: 1

Media

Main electronic connection: 230 V
Power consumption: 1 kVA

Additional Information

Machine Benefits

Technical Machine Benefits

Tool holder vdi40
Trough light projektor marcel aubert
20 times magnification with rotation crosshair
2 axis digital display
Very easy to use
99 adapter zero points

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
