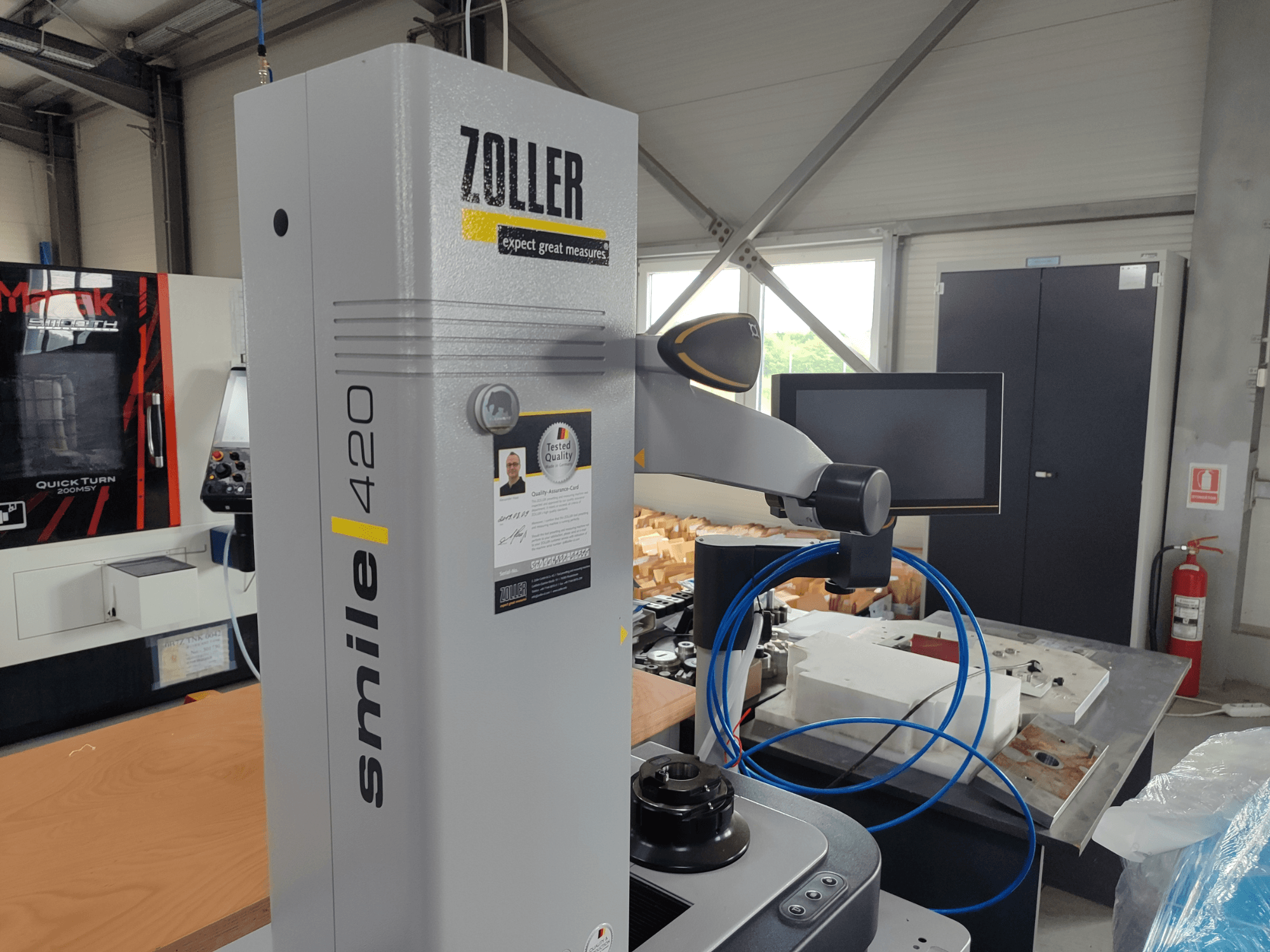

This Zoller SMILE PILOT 1,0 was manufactured in 2019. It features image processing technology Pilot 1.0, a Z-axis length of 400 mm, and a radius on the X-axis of 200 mm. The machine can handle diameters up to 400 mm and snap gauge diameters of 100 mm. Weighing 175 kg and standing 1620 mm tall, it requires a power input of 1000-2000 mA. Consider the opportunity to buy this Zoller SMILE PILOT 1,0 optical measurement machine. Contact us for more information.
Overview
- brand: Zoller
- year: 2019
- MODEL: SMILE PILOT 1,0
- application type: Measuring
- Location: Romania
- machine type: Optical Measurement Machine
Technical Information - Zoller SMILE PILOT 1,0
Additional Information
Additional information
Machine Weight: 175 kg
Dimensions of Machine (LxWxH): Provided height is 1620 mm
Measuring system: Image processing technology Pilot 1.0
Length Z-axis: 400 mm
Radius X-axis: 200 mm
Diameter D: Ø400 mm
Snap gauge D1: Ø100 mm
Concentricity: 2 µm
Setting accuracy: 2 µm
Display accuracy: 1 µm
Repeating accuracy: 2 µm
Compressed Air Required pressure: 4–6 bar, dry and slightly lubricated
Electrical Data (Pilot 1.0):
Voltage: 115–230 V
Frequency: 50/60 Hz ±2%
Power consumption: 230 VA
Power input: 1000–2000 mA
Fuse: F6A (slow)
Operating humidity: 10–95% (non-condensing)
Measurement humidity: 80% (non-condensing)
Noise level: <45 dBA during normal operation, up to 53 dBA with printer
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
