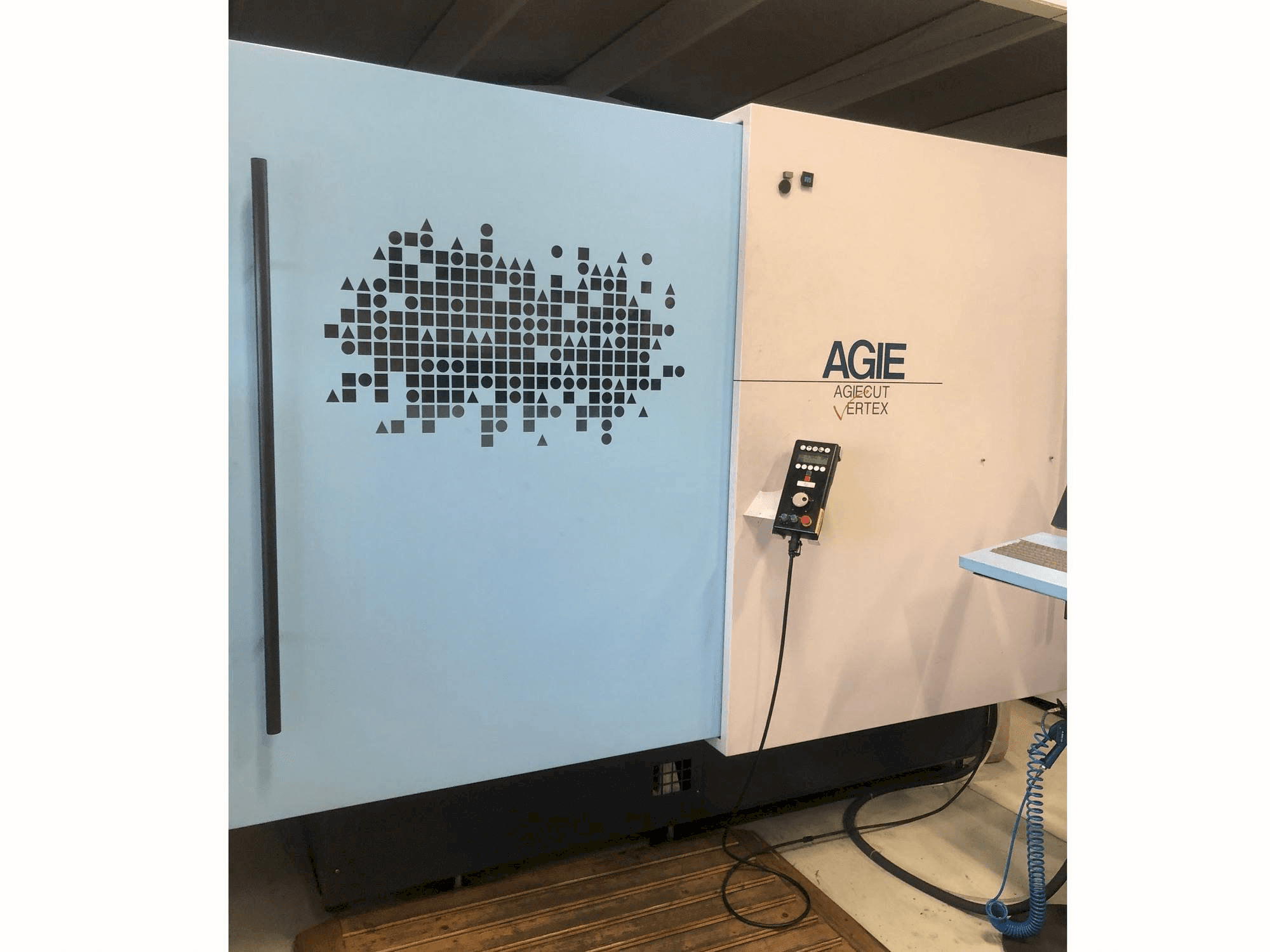

AGIE - Agiecut VERTEX 3SI-EDM-AGI-2006-00001

Control: Agievision 5 (software version 07.08.01)

Condition: Excellent; regular maintenance; major service recently completed; fully operational; can be tested under power

EDM operating hours: approx. 37,021 h

Travels (U/V): ±70 / 70 mm

Distance for clamping: 1,100 mm

Max workpiece dimensions: 1050 × 650 × 250 mm

Max workpiece weight: submerged 400 kg / non-submerged 800 kg

Max cutting height: up to 250 mm

Taper capability: ±30° / 100 mm

Positioning

• Max manual speed: 2 m/min

• Max programmable speed: 3 m/min

• Resolution: 0.0001 mm

• Geometric tolerances: per manufacturer specifications

Wire system

• Wire diameter range: 0.07–0.33 mm (standard 0.20 mm)

• Wire spool capacity: up to 25 kg

• Wire tension: 0–25 N

• Wire speed: 60–300 mm/s

• Wire feed: semi-automatic

• Wire disposal: chopper system

Equipment & features

• Automatic wire threading system

• Threading nozzles: 2 mm (optional 1 mm / 0.6 mm)

• Combined wire guide system and cylindrical wire guide

• Electronic handwheel (manual control)

• Remote control with LCD display

• TFT control screen (1024 × 768)

• Keyboard and mouse control
