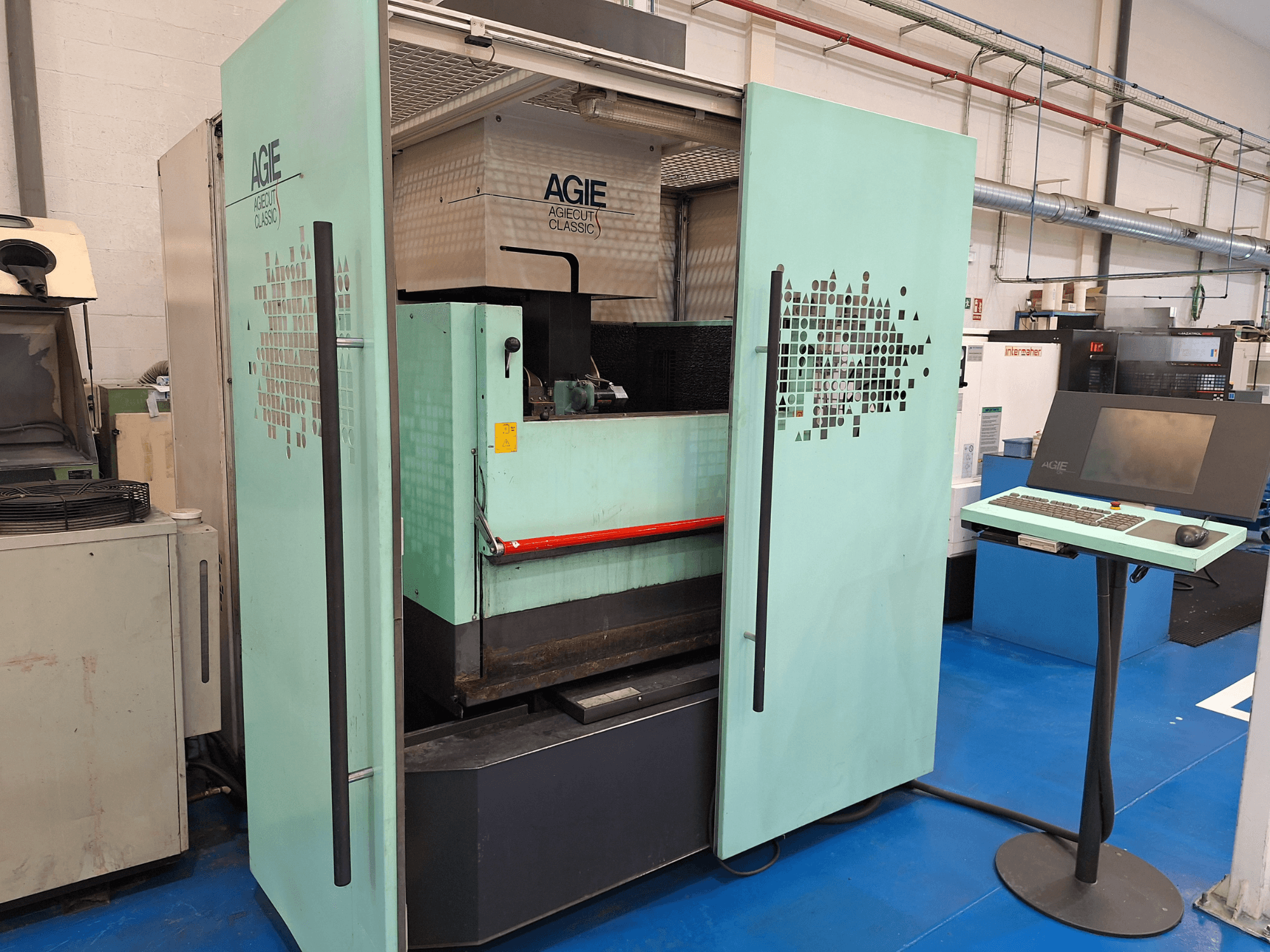

This 5-axis AGIE Classic 3s wire EDM machine was manufactured in 2002. It features an X-axis travel of 500 mm, Y-axis travel of 350 mm, and Z-axis travel of 426 mm. The machine is equipped with a submerged head and includes a chiller, resin filters, and a wire feed/recovery system. If you are looking to get high-quality wire EDM capabilities, consider the AGIE Classic 3s machine we have for sale. Contact us for further details.
Overview
- brand: AGIE
- year: 2002
- MODEL: Classic 3s
- application type: EDM
- Location: Spain
- machine type: Wire EDM Machine
- control unit brand:
Technical Information - AGIE Classic 3s
Dimensions
- Machine Weight: 3900 kg
Movement
- Number of Axes: 5
- X-axis Travel: 500 mm
- Y-axis Travel: 350 mm
- Z-axis Travel: 426 mm
Technical Specification
- Max. Wire Diameter: 0.3 mm
- Min. Wire Diameter: 0.15 mm
Additional Information
U/V axes travel: ±70 mm
Number of controlled axes: 5 (X, Y, Z, U, V)
Taper cut: up to ±30°
Generator: MC 3S (Lista 030.844)
Axis driver (DA): DA MC 3S (Lista 030.834)
Electrical cabinet: Cabinet Classic 3S (Lista 027.254)
Power supply voltage: 3×400 V / 50 Hz
Installed power: 9 kVA
Rated current: 14 A
Dielectric: Deionized water
Heads type: Submerged with wire guide nozzles
Wire drive motor: +GF+ / Maxon Motor (Swiss made)
Circuit diagram: 628.992
Additional equipment
MTA chiller (included in the sale)
Resin filters
Deionizers
Wire feed/recovery system
