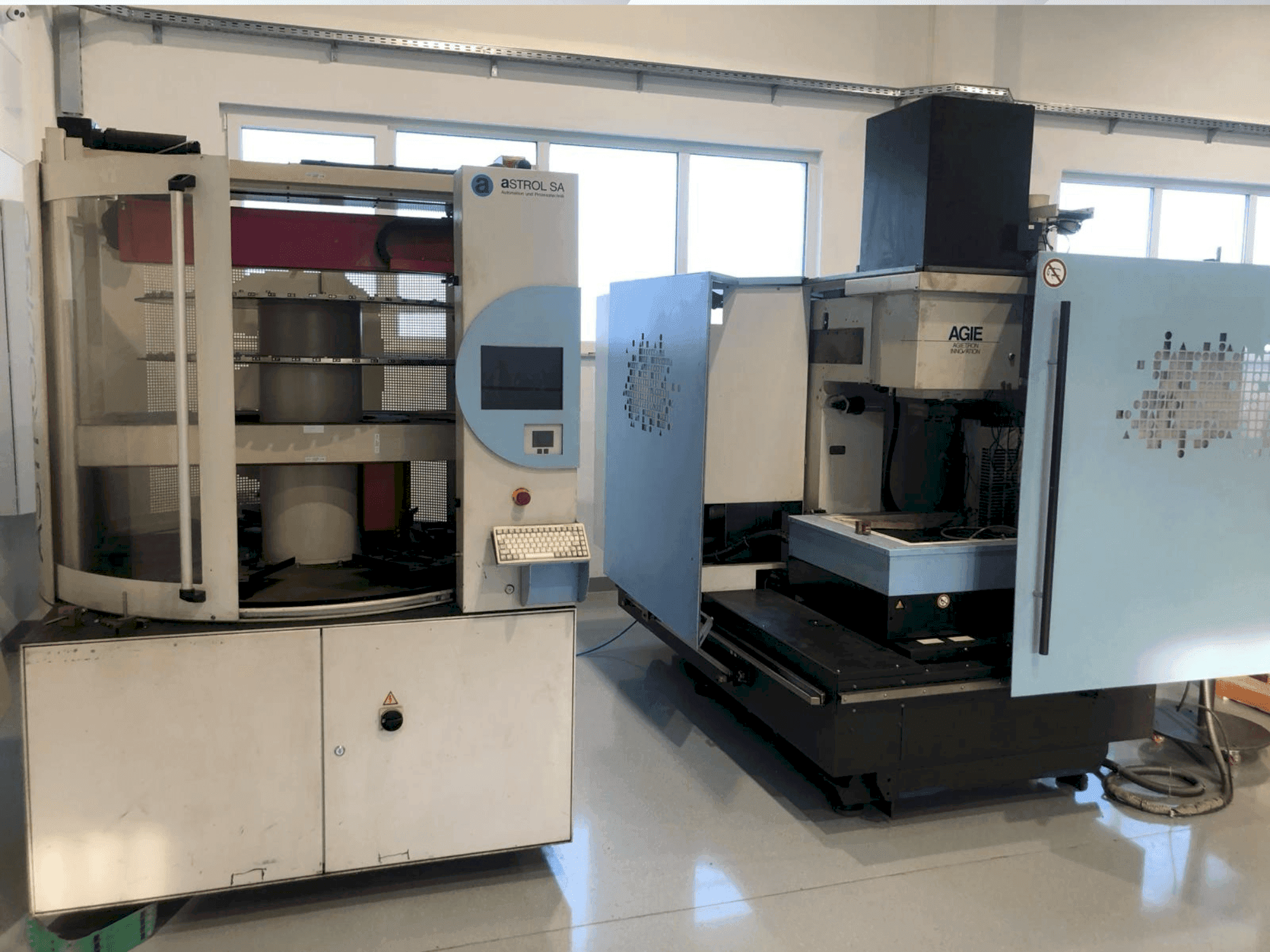

Front view of AGIE AGIETRON Innovation 2  machine

AGIE - AGIETRON Innovation 2HR-CUT-AGI-2002-00001

14,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis AGIE AGIETRON Innovation 2 die-sinking EDM machine was manufactured in 2002. It features a robust AGIEVISION control system, a 28-position electrode changer, and a C-axis for rotation, indexing, and erosion. The machine can handle workpieces up to 650 x 580 x 250 mm and 400 kg. It boasts a high-performance AGIE IPG generator with a removal rate of 450 mm³/min for copper/steel. Consider the opportunity to buy this AGIE AGIETRON Innovation 2. Contact us for more information.

Overview

  • brand: AGIE
  • year: 2002
  • MODEL: AGIETRON Innovation 2
  • application type: Cutting
  • Location: Croatia
  • machine type: Die-Sinking EDM Machine
  • availability: Immediately
  • control unit brand: AGIE

Technical Information - AGIE AGIETRON Innovation 2

Control Unit

  • Brand: AGIE
  • Model: AGIEVISION control system

Main drive

  • Number of axis: 3

Movement

  • X-AXIS Movement: 350 mm
  • Y-AXIS Movement: 250 mm
  • Z-AXIS Movement: 350 mm

Workpiece

  • Workpiece x: 650 mm
  • Workpiece y: 580 mm
  • Workpiece z: 250 mm
  • Workpiece weight: 400 kg

    Additional Equipment

    • - AGIE IPG high-performance generator with 72 A

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Distance from table to quill: 170-520 mm
        • - Electrode changer: 28-position
        • - C-axis for rotation, indexing, and erosion (u = 0-60 rpm)
        • - Removal rate copper/steel: 450 mm³/min
        • - Removal rate graphite/steel: 530 mm³/min
        • - Best achievable surface finish: ra 0. 2 µm
      • Qualitative Machine Benefits:
        • - Liftable keyboard and mouse
        • - Work bowl can be lowered for optimum accessibility

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
