AGIE - AGIETRON INTEGRAL 2BG-EDM-AGI-2006-00001

Name: AGIE AGIETRON INTEGRAL 2
Brand: AGIE
SKU: BG-EDM-AGI-2006-00001
Price: 12000 EUR
Availability: InStock

12,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used AGIE AGIETRON INTEGRAL 2 For Sale | gindumac.com

Show in original language

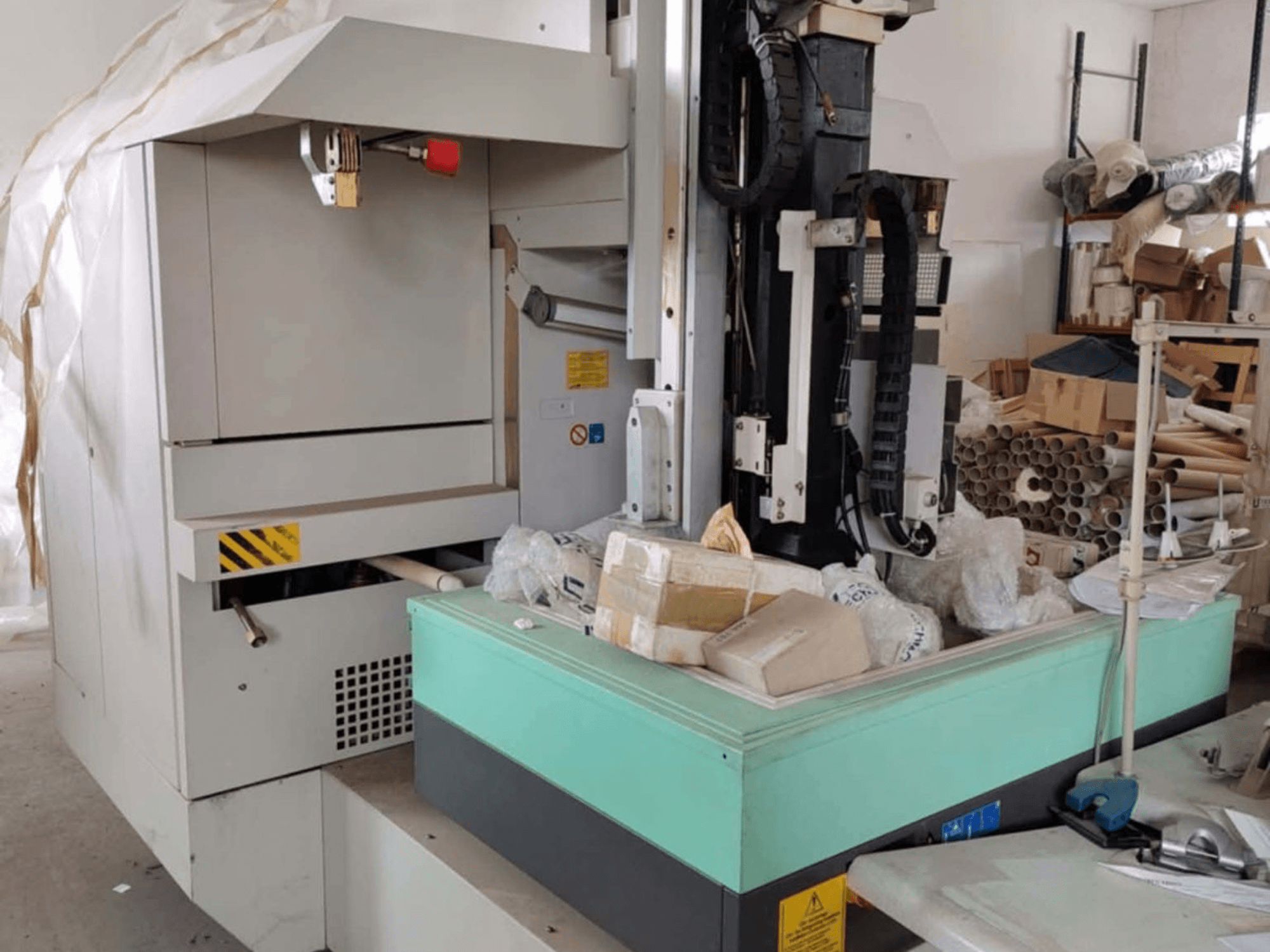

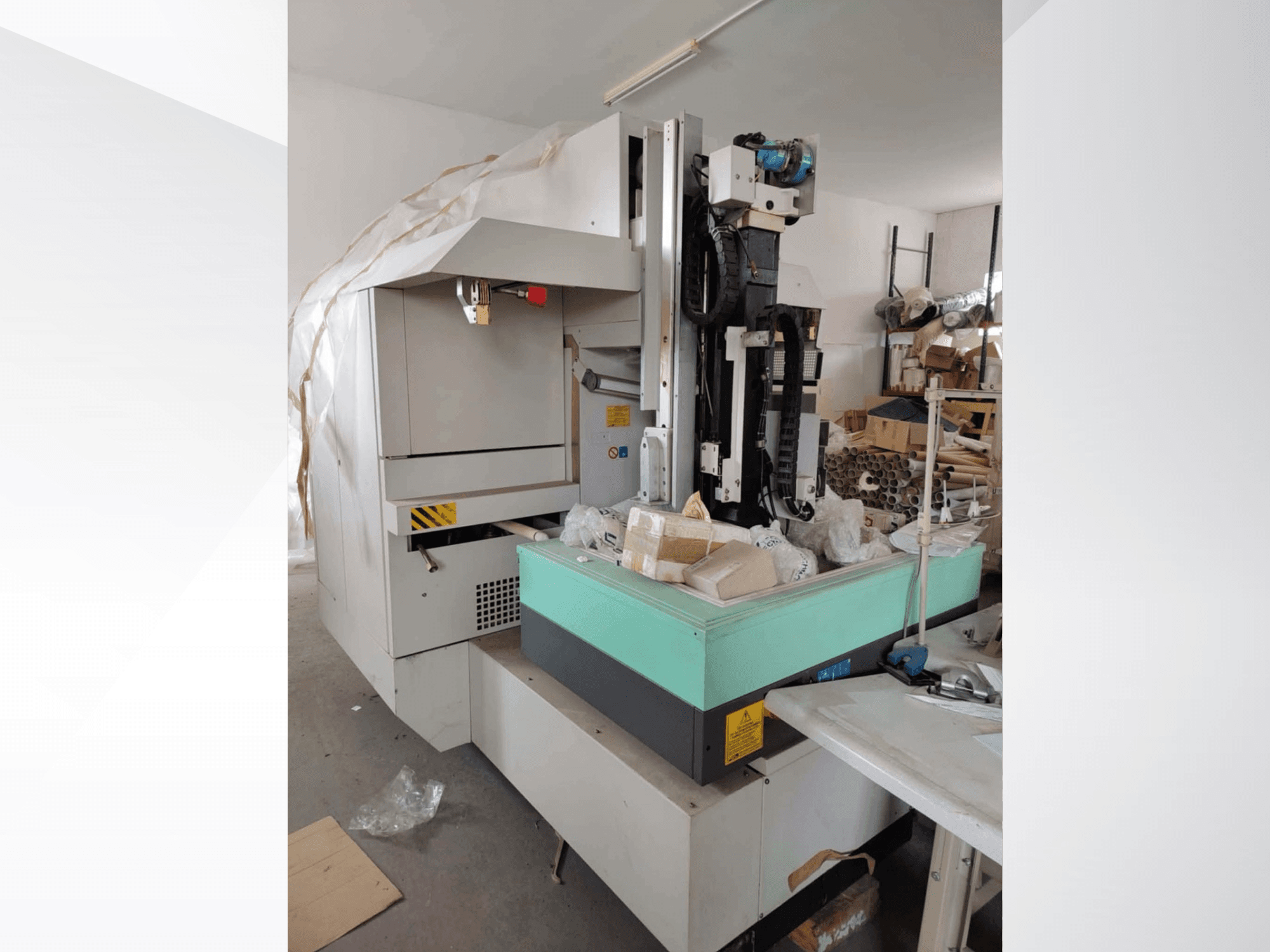

This 3-axis AGIE AGIETRON INTEGRAL 2 was manufactured in 2006. It features a travel of 350 mm in the X-axis, 250 mm in the Y-axis, and 350 mm in the Z-axis. The machine can accommodate workpieces up to 840 x 670 x 250 mm and has a maximum electrode weight of 100 kg. If you are looking to get high-quality die-sinking capabilities, consider the AGIE AGIETRON INTEGRAL 2 machine we have for sale. Contact us for further details.

Overview

brand: AGIE
year: 2006
MODEL: AGIETRON INTEGRAL 2
application type: EDM
Location: Bulgaria
machine type: Die-Sinking EDM Machine

Technical Information - AGIE AGIETRON INTEGRAL 2

Dimensions

Machine Height: 2580 mm
Machine Length: 1630 mm
Machine Weight: 3200 kg
Machine Width: 3350 mm

Movement

Number of Axes: 3
X-axis Travel: 350 mm
Y-axis Travel: 250 mm
Z-axis Travel: 350 mm

Additional Information

Units available: 2
Workpiece size: 840 x 670 x 250 mm
Weight: 400 kg
Number of electrodes: 28
Max. electrode weight: 100 kg
Circuit diagram: 625942.8
Electrical: 3 × 400 V, 50 Hz, 6.1 kVA, 8.8 A

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
