- ➤ Used AgieCharmilles Cut-20 P For Sale | gindumac.com

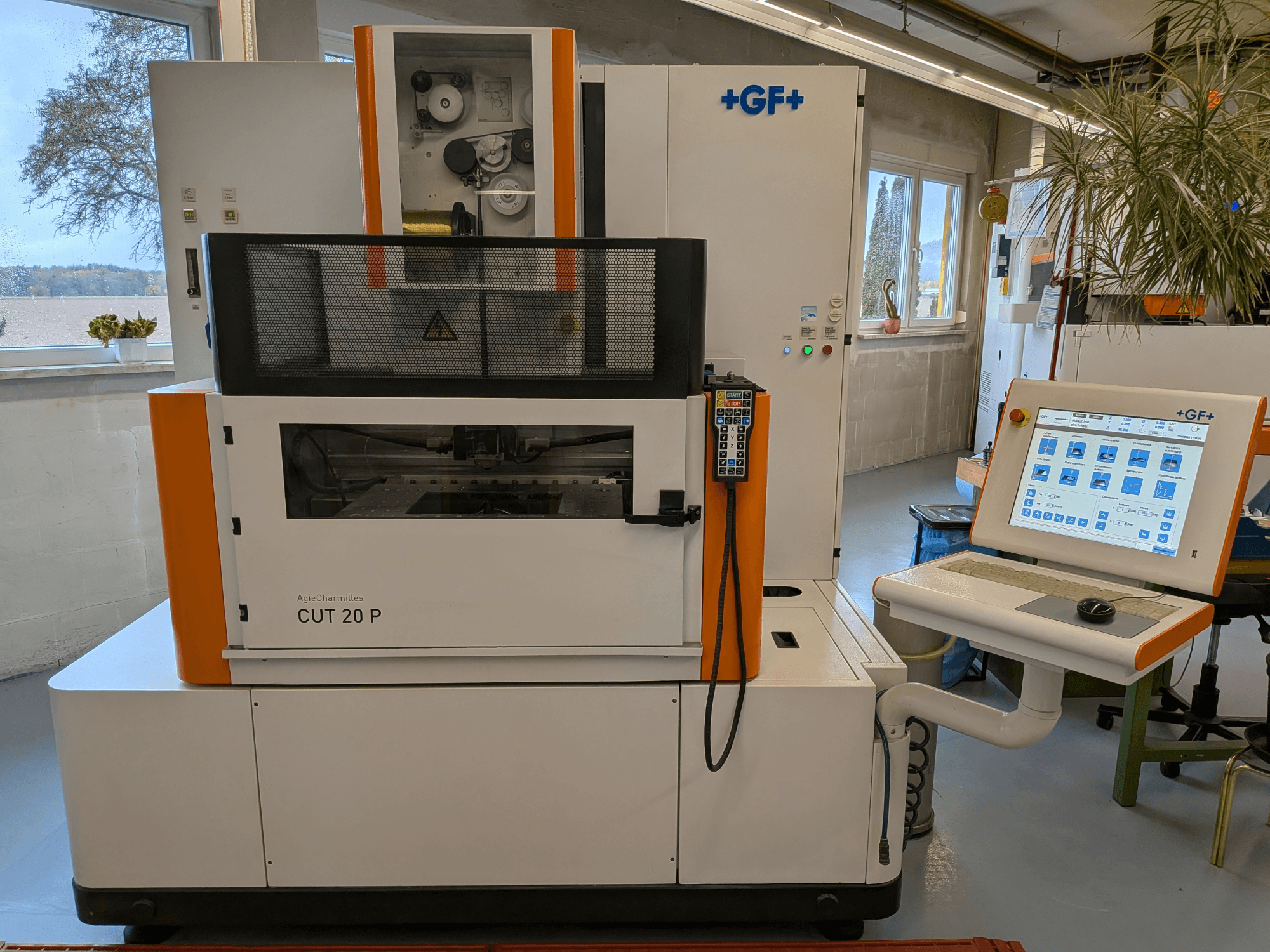

This 3-axis AgieCharmilles Cut-20 P wire EDM machine was manufactured in 2016. It features a power of 11 kVA and operates at a voltage of 380 V. The machine weighs 2,890 kg and comes with complete documentation, manuals, and optional accessories. If you are looking to get high-quality wire EDM capabilities, consider the AgieCharmilles Cut-20 P machine we have for sale. Contact us for further details.
Overview
- brand: AgieCharmilles
- year: 2016
- MODEL: Cut-20 P
- production hours: 4560
- application type: EDM
- Location: Germany
- machine type: Wire EDM Machine
Technical Information - AgieCharmilles Cut-20 P
Dimensions
- Machine Weight: 2890 kg
- Table Length: 600 mm
- Table Load: 400 kg
- Table Width: 400 mm
Movement
- Number of Axes: 3
- X-axis Travel: 350 mm
- Y-axis Travel: 250 mm
- Z-axis Travel: 250 mm
Technical Specification
- Max. Wire Diameter: 0.3 mm
- Min. Wire Diameter: 0.1 mm
Additional Information
General
Type: Wire EDM Machine
Manufacturer: GF
Model: Cut 20
Year of Manufacture: 2016
Technical Data
Table Size: 600 × 400 mm
Max. Workpiece Size: 820 × 680 × 250 mm
Max. Workpiece Weight: 400 kg
Automatic Wire Threading
Water Bath Cutting
Electrical Data
Phase: 3
Voltage: 380 V
Power: 11 kVA
Current: 17 A
Short-Circuit Current: 10 kA
Frequency: 50 Hz
Additional Information
Machine Weight: 2,890 kg
Total Erosion Time: 4,560 h
Documentation: Complete documentation, manuals and accessories included
Cooling Unit: Not included (machine was operated with a central cooling system)
Condition: Fully functional
Repair History: Wire guide at the end of the machine (wire feed to the wire container) has been repaired due to damage.
Wire Container: Two minor chips
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
