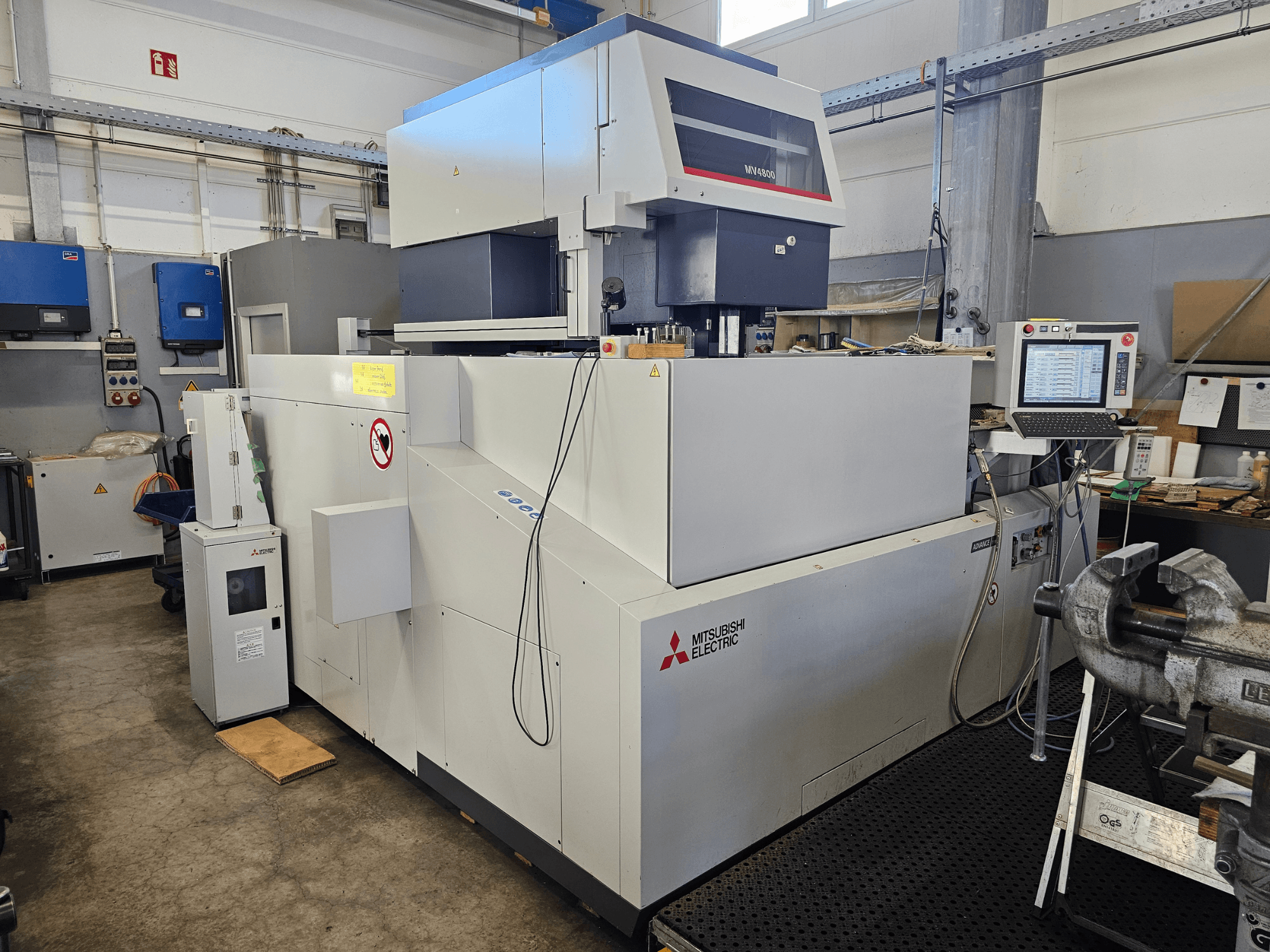

This 5-axis Mitsubishi MV4800 was manufactured in 2018. It features an X-axis travel of 800 mm, Y-axis travel of 600 mm, and Z-axis travel of 510 mm, making it suitable for precision cutting of conductive materials. The machine includes a water-based dielectric system and automatic wire threading. If you are looking to get high-quality wire erosion cutting capabilities, consider the Mitsubishi MV4800 wire EDM machine we have for sale. Contact us for further details.
Overview
- brand: Mitsubishi
- year: 2018
- MODEL: MV4800
- application type: EDM
- Location: Germany
- machine type: Wire EDM Machine
Technical Information - Mitsubishi MV4800
Dimensions
- Machine Height: 2815 mm
- Machine Weight: 5700 kg
Movement
- Number of Axes: 5
- X-axis Travel: 800 mm
- Y-axis Travel: 600 mm
- Z-axis Travel: 510 mm
Technical Specification
- Max. Wire Diameter: 0.3 mm
- Min. Wire Diameter: 0.1 mm
Additional Information
Control: Mitsubishi CNC control
Machining type: wire erosion cutting (Wire EDM)
Dielectric system: water-based dielectric system
Cooling/filtration: integrated dielectric filtration system
Automatic wire threading: included
Wire type: brass wire (e.g. OBN 0.25 mm)
Wire diameter capability: approx. 0.1–0.3 mm
Wire diameter (standard range): 0.15–0.30 mm (standard 0.30 mm)
Application: precision cutting of conductive materials
Typical materials: hardened steel, tool steel, carbide, aluminum
Axis travels: U ±100 mm, V ±100 mm
Maximum workpiece dimensions: X 1250 mm, Y 1020 mm, Z 505 mm
Maximum workpiece weight: 3000 kg
Tank weight (empty): 450 kg
Generator weight: 240 kg
Required door opening (W x H): 2587 x 2815 mm
Power supply: 3 phase 400 V AC ±10% 50/60 Hz
Minimum fuse protection: 32 A slow
Pneumatic pressure: 5–7 kgf/cm² (500–700 kPa)
Air consumption: minimum 42 l/min (more than 75 l/min for AT system with 0.1 mm wire)
Air connection: 3/8"
Machine footprint length: approx. 3299 mm
Minimum clearance around machine: 1 m
Recommended working platform height: minimum 500 mm
Handling requirement: forklift minimum 10 t capacity, fork length minimum 3.5 m
Additional equipment
Power supply transformer: 20 kVA
Dimensions: 1.2 x 0.4 x 1.2 m
Weight: 300 kg
Ionizer unit: E.KO ionizer system (included)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
