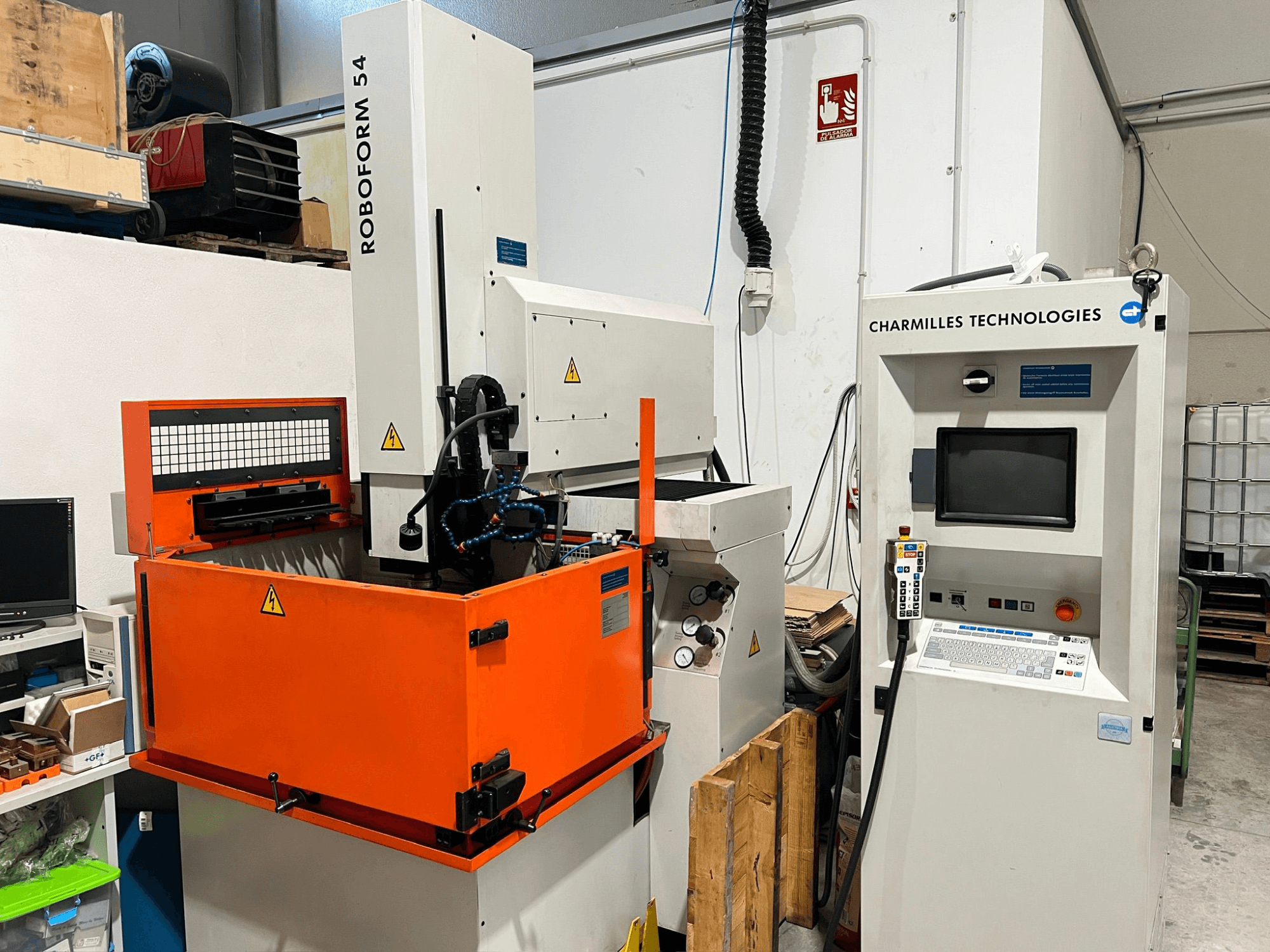

This 4-axis AgieCharmilles Roboform 54 was manufactured in 2000. It features an X-axis travel of 500 mm, Y-axis travel of 350 mm, and Z-axis travel of 256 mm. The machine can accommodate workpieces up to 850 x 650 x 256 mm and has a maximum workpiece weight of 400 kg. If you are looking to get high-quality die-sinking capabilities, consider the AgieCharmilles Roboform 54 machine we have for sale. Contact us for further details.
Overview
- brand: AgieCharmilles
- year: 2000
- MODEL: Roboform 54
- application type: EDM
- Location: Spain
- machine type: Die-Sinking EDM Machine
Technical Information - AgieCharmilles Roboform 54
Dimensions
- Machine Weight: 2356 kg
Movement
- Number of Axes: 4
- X-axis Travel: 500 mm
- Y-axis Travel: 300 mm
- Z-axis Travel: 256 mm
Additional Information
Taper (conicity): ±30° / 100 mm
Max. workpiece dimensions: 850 x 650 x 256 mm
Max. workpiece weight: 400 kg
Best surface roughness: Ra ≤ 0.2 µm
Best precision: ±0.005 mm
Generator model: 3R-600.83
Electrical supply: 3~ 400 V / 50–60 Hz
Installed power: 5 kVA
Current: 5 A
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
