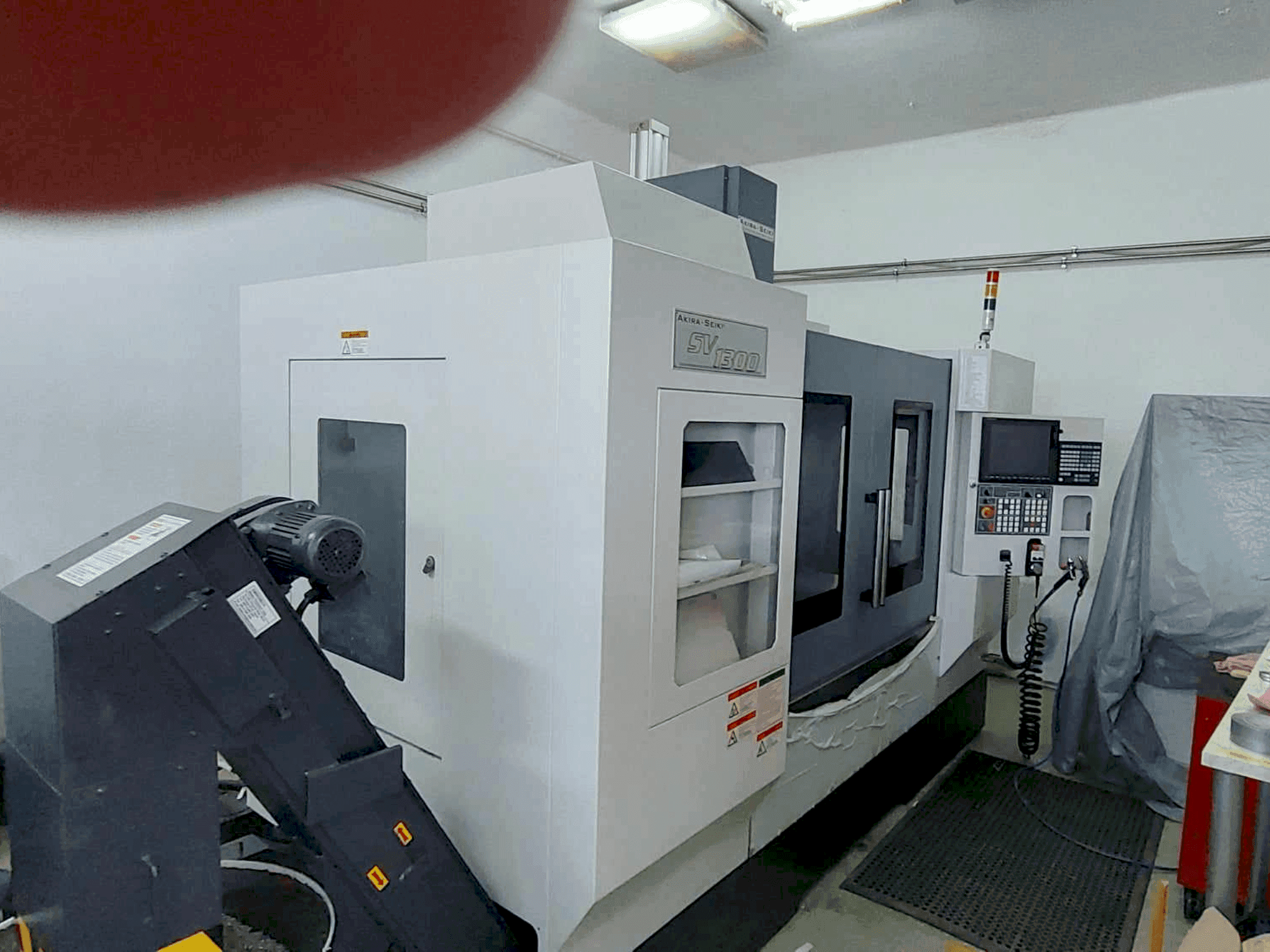

Front view of Akira Seiki SVI300  machine

Akira Seiki - SVI300HU-MIL-AKI-2015-00001

62,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 4-axis Akira Seiki SVI300 vertical machining centre was manufactured in 2015. It features a robust BT40 spindle with a maximum speed of 15,000 RPM and oil chilling for optimal performance. The machine offers a large table size, rapid feed rates, and a high-capacity ATC with 36 tool slots. Ideal for precision machining with its extensive travel distances and high load capacity. Consider the opportunity to buy this Akira Seiki SVI300 vertical machining centre. Contact us for more information.

Overview

  • brand: Akira Seiki
  • year: 2015
  • MODEL: SVI300
  • application type: Milling
  • Location: Hungary
  • machine type: Vertical Machining Centre
  • availability: Immediately

Technical Information - Akira Seiki SVI300

General Data

  • Measurements width: 3400 / 3800 / 4200 mm
  • Measurements depth: 2240 mm
  • Machine weight: 6180 kg / 7158 kg / 7678 kg

Main drive

  • Spindle speed range: 15000 RPM 1/MIN
  • Spindle motor power: 42 HP
  • Tool taper: BT40
  • Number of axis: 4

Movement

  • X-AXIS Movement: 815 mm / 1050 mm / 1300 mm
  • X-AXIS Rapid traverse: 48 / M/min
  • Y-AXIS Movement: 540 mm
  • Y-AXIS Rapid traverse: 48 / M/min
  • Z-AXIS Movement: 560 mm
  • Z-AXIS Rapid traverse: 36 M/min

Tools

  • Number of index: 36T
  • Max weight: 7 kg
  • Max tool diameter: 65 mm
  • Max tool length: 250 mm

    Additional Equipment

    • - Chip Disposal: Chain Type Chip Conveyor

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Method of spindle chilling: oil chilling
        • - Table size (l x w): 950 x 480 mm / 1200 x 480 mm / 1450 x 480 mm
        • - T slot: 18 x 80 x 5 slots
        • - 1080 kg / 1176 kg / 1296 kg
        • - 900 kg / 980 kg / 1080 kg
        • - Cutting feed x/y/z: 15 / 15 / 10 m/min
        • - Positioning: 0. 01 mm repeatability: ±0. 003 mm
        • - Tool change time (t to t, 60hz): 1. 9 sec.
        • - Air pressure requirement: 0. 5 mpa
        • - Power requirement: 35 kva
      • Qualitative Machine Benefits:
        • - Coolant tank capacity: 350/400 liter

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
