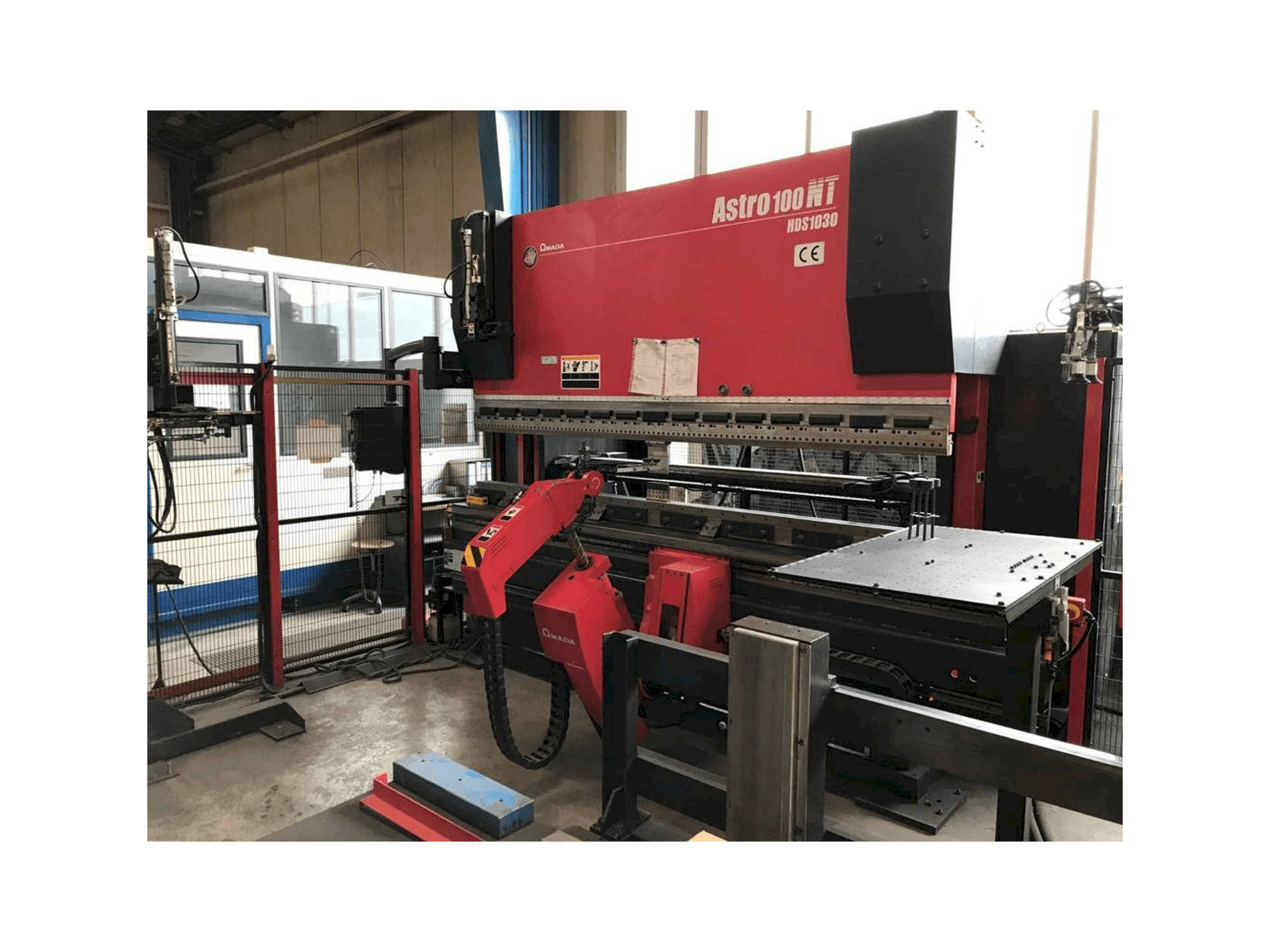

Front view of AMADA Astra 100-NT HDS-1030NTR machine
Front view of AMADA Astra 100-NT HDS-1030NTR machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

AMADA - ASTRO 100-NT HDS-1030NTRDE-BEN-AMA-2004-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This AMADA ASTRO 100-NT HDS-1030NTR Bending and Punching Machine was built in 2004 in Japan. It is operated through a AMADA AMNC II-PC control unit. This machine can work with a pressing force of 1000 kN, and bending length of 3000 mm. It includes: Press brake: HDS-1030NTR, Bending robot: ASTRO-100NT, Loading and unloading robot: ASTRO-MP20.

Overview

  • brand: AMADA
  • year: 2004
  • MODEL: ASTRO 100-NT HDS-1030NTR
  • application type: Bending
  • Location: Germany
  • machine type: Press Brake
  • control unit brand: AMADA

Technical Information - AMADA ASTRO 100-NT HDS-1030NTR

Control Unit

  • Control Brand: AMADA
  • Control Model: AMNC II-PC

Dimensions

  • Machine Weight: 8700 kg

Movement

  • Number of Axes: 7

Technical Specification

  • Bending Length: 3000 mm
  • Max. Stroke: 200 mm
  • Pressing Force: 1000 Kn

Additional Information

Additional equipment

  • ASTRO-100 NT Bending Robot: Weight 450 kg
  • Control unit AMADA AMNC II - AS100CE
  • Max. Capacity (incl. gripper) 20 kg, Number of controlled axes 5
  • Length of linear axis 3080 mm, Max. Material thickness 0.6 - 2.5 mm
  • Max. Blank size 800 x 1000 mm, 300 x 1800 mm, Drive AC servo motors
  • ASTRO-MP 20 Loading and unloading robot:
  • Control unit AMADA AMNC II - AS100CE
  • Max. Capacity (incl. gripper) 20 kg, Number of controlled axes 6
  • Max. Workpiece dimensions as ASTRO-100 NT
  • Stack height raw material 500 mm, Drive AC servo motors

Machine Benefits

Technical Machine Benefits

  • Drive servo-hydraulic
  • Deflection compensation active hydraulic cylinder
  • Passage between machine uprights 2700 mm
  • Installation height 500 mm
  • Adjustment range back gauge 600 mm
  • Width of worktable 60 mm
  • Speed of infeed/return stroke 200 mm/s
  • Max. Work 20 mm/s
  • Oil volume 57 l

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
