AMADA LC-2415 A3
AMADA - LC-2415 A3
1999
11,000 €
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- AMADA LC-2415 A3 Laser cutting machine

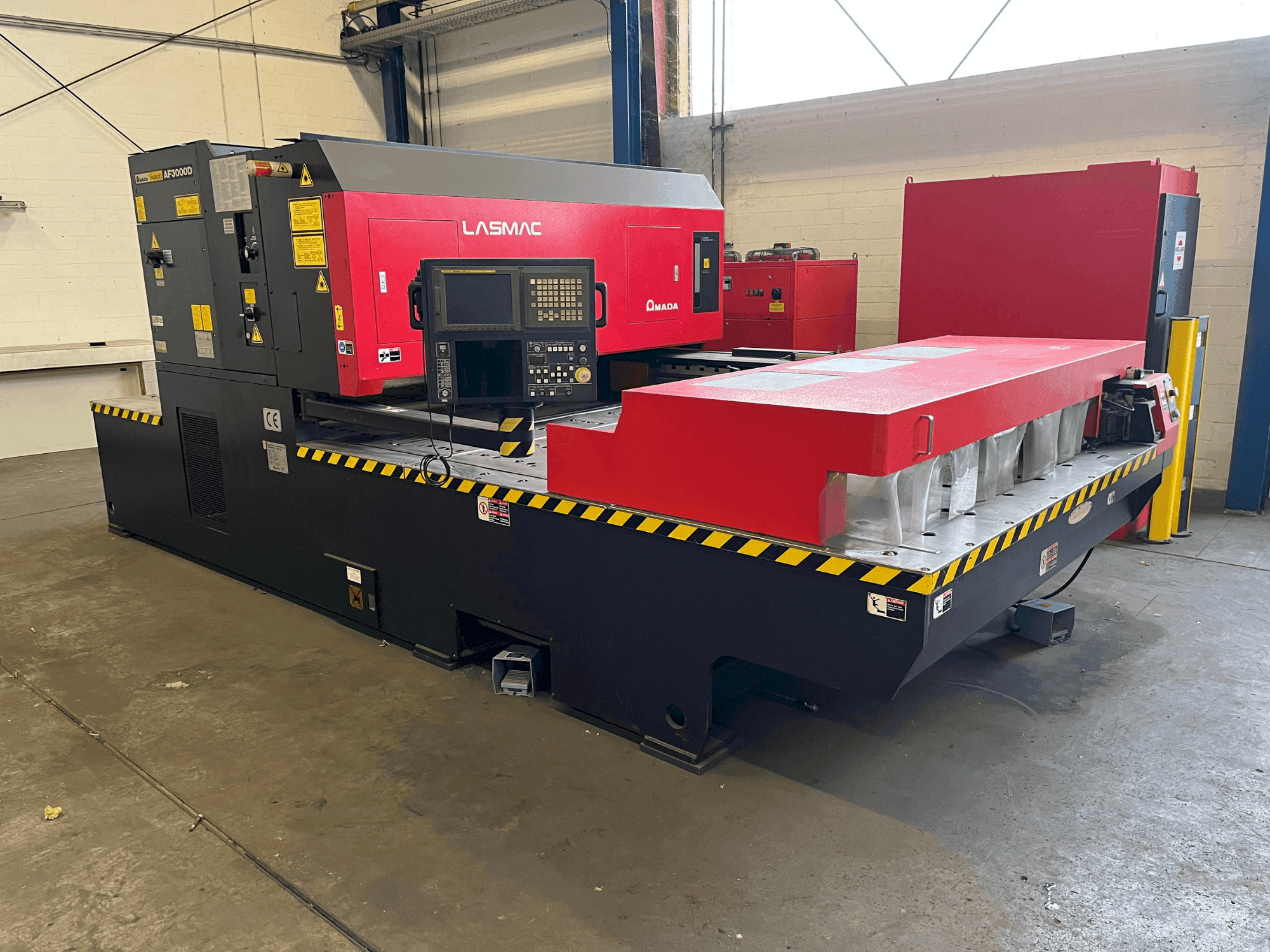

This AMADA LC-2415 A3 Laser cutting machine was manufactured in the year 1999 in Japan. It is equipped with a FANUC Series 160i-L control unit and a FANUC C-3000 D laser with 3kW laser power. The laser can cut 12 mm mild steel and 6 mm stainless steel. See tech specs (DE) as PDF attached.
Overview
- brand: AMADA
- year: 1999
- MODEL: LC-2415 A3
- production hours: 32500
- application type: Laser Cutting
- Location: Germany
- machine type: Laser Cutting Machines (CO2)
- availability: Immediately
- control unit brand: FANUC
- GINDUMAC ID: DE-LAS-AMA-1999-00002
Technical Information
General Data
- Measurements width: 2500 MM
- Measurements depth: 5654 MM
- Measurements height: 2275 MM
- Machine weight: 6400 kg
Control Unit
- Brand: FANUC
- Model: Series 160i-L
Main drive
- Laserpower: 3 KW
- Number of axis: 3
Movement
- X-AXIS Movement: 2520 MM
- X-AXIS Rapid traverse: 80 M/MIN
- Y-AXIS Movement: 1550 MM
- Y-AXIS Rapid traverse: 80 M/MIN
- Z-AXIS Movement: 300 MM
- Z-AXIS Rapid traverse: 60 M/MIN
Workpiece
- Workpiece x: 5040 mm
- Workpiece y: 1550 mm
- Workpiece weight: 330 KG
Max Material thickness
- Steel: 12 mm
- Stainless steel: 6 mm
Additional Information
- Technical Machine Benefits:
- - Max. Cutting speed x- and y-axis 20 m/min
- - Max. Sheet dimensions 5040 x 1550 mm
- - Positioning accuracy 0. 01 mm/500 mm
- - Repeatability +/- 0. 005 mm
- - Height of the table 820 mm
- - Size of the opening 550 x 1550 mm
- Qualitative Machine Benefits:
- - The laser can cut 12 mm mild steel and 6 mm stainless steel
- - Supply voltage 200 V (10 %) // Main frequency 50/60 Hz (1 Hz) // Installed power 10 k/A, 3 phases // Compressed air requirement (machine functions) 6 bar; 20 m3 / h // Compressed air requirement (compressed air as cutting gas) additional 17 bar; 63 m3 / h
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
