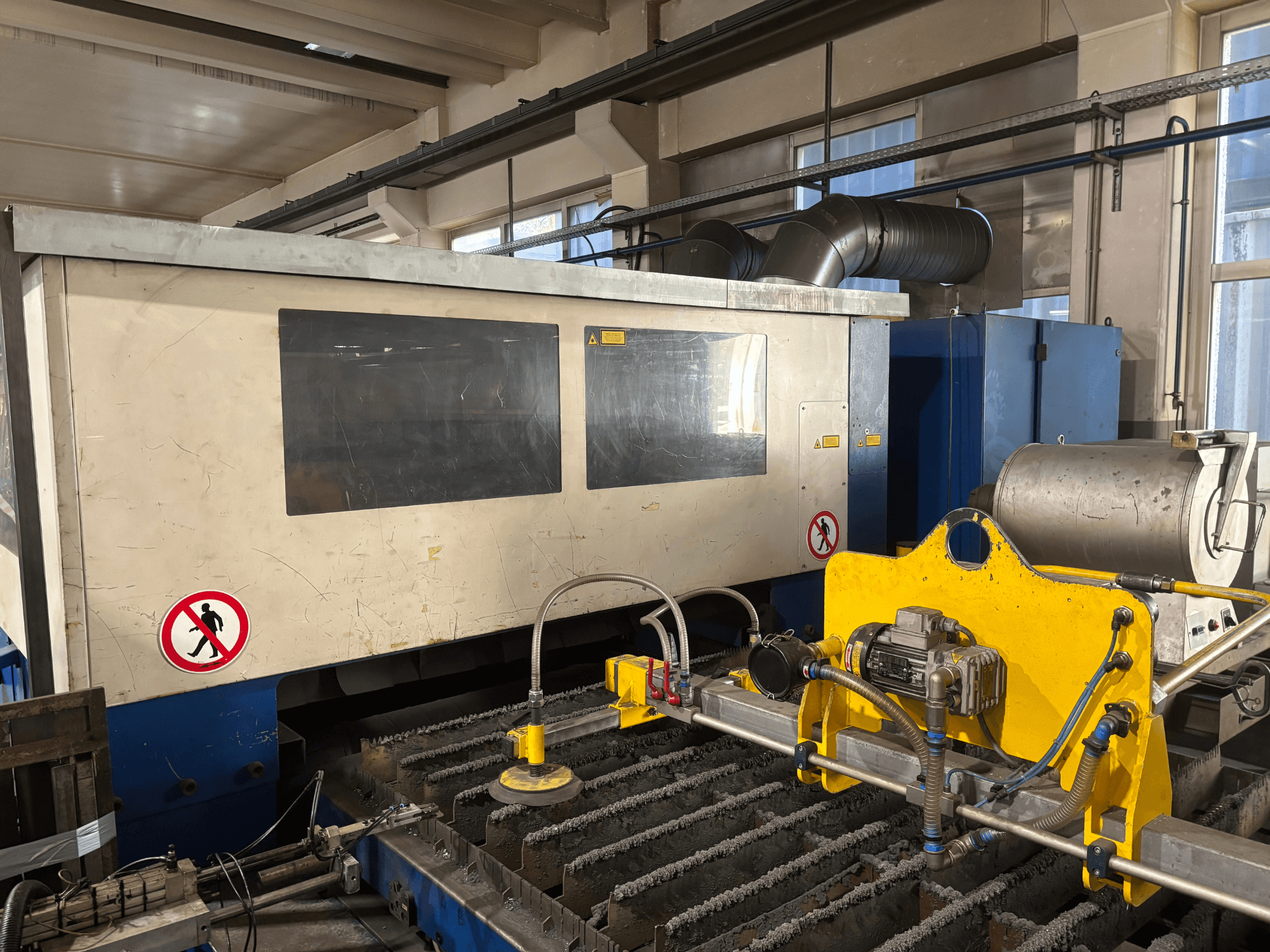

TRUMPF - Trumatic L3030 DE-CUT-TRU-2001-00001

• Electrical

  • Supply voltage: 400 V

  • Phases: 3-phase AC

  • Frequency: 50 Hz

  • Rated power: 73 kVA

  • Rated current: 105 A

  • Maximum fuse protection: 125 A

  • Control voltage: 24 V DC

• Control

  • Control system: Siemens Sinumerik 840D (CNC) with TRUMPF TASC3 laser control

  • Control software version: 2.4

• Laser performance

  • CW mode power:

    • 100%: 3208 W

    • 85%: 2756 W

    • 75%: 2407 W

  • Pulsed (5 kHz) power:

    • 100%: 3208 W

    • 75%: 2416 W

    • 50%: 1610 W

    • 25%: 810 W

    • 10%: 328 W

    • 5%: 157 W

    • 1%: 0 W

• RF/drive

  • Reflected RF power: 0.3 kW

  • Maximum CW RF amplitude: 100%

  • Switching frequency (CW): 50 kHz

  • Maximum pulse voltage: 10,000 V

• Pressure and leakage

  • Operating pressure limits: 20.01–27.00 kPa

  • Maximum turbine pressure: 200 hPa

  • Leakage rate: 0.04 hPa/min

• Thermal/CPU

  • Maximum CPU temperature: 49 °C

  • Actual CPU temperature: 43 °C

• Optics/Alignment

  • Maximum beam alignment time: 600 s

• Hours

  • Laser on hours: 65,000 h

Additional equipment

• RIEDEL chiller (cooling system) (2001), Type: L 15/21 TR3

  • Supply voltage: 400 V

  • Phases: 3-phase

  • Frequency: 50 Hz

  • Nominal current: 42 A

  • Protection class: IP54

  • Refrigerant: R134a

  • Refrigerant charge: 11.5 kg

  • Maximum water pressure: 20.2 bar
