ARES-SEIKI - R4530ES-MIL-ARE-2006-00001

12,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

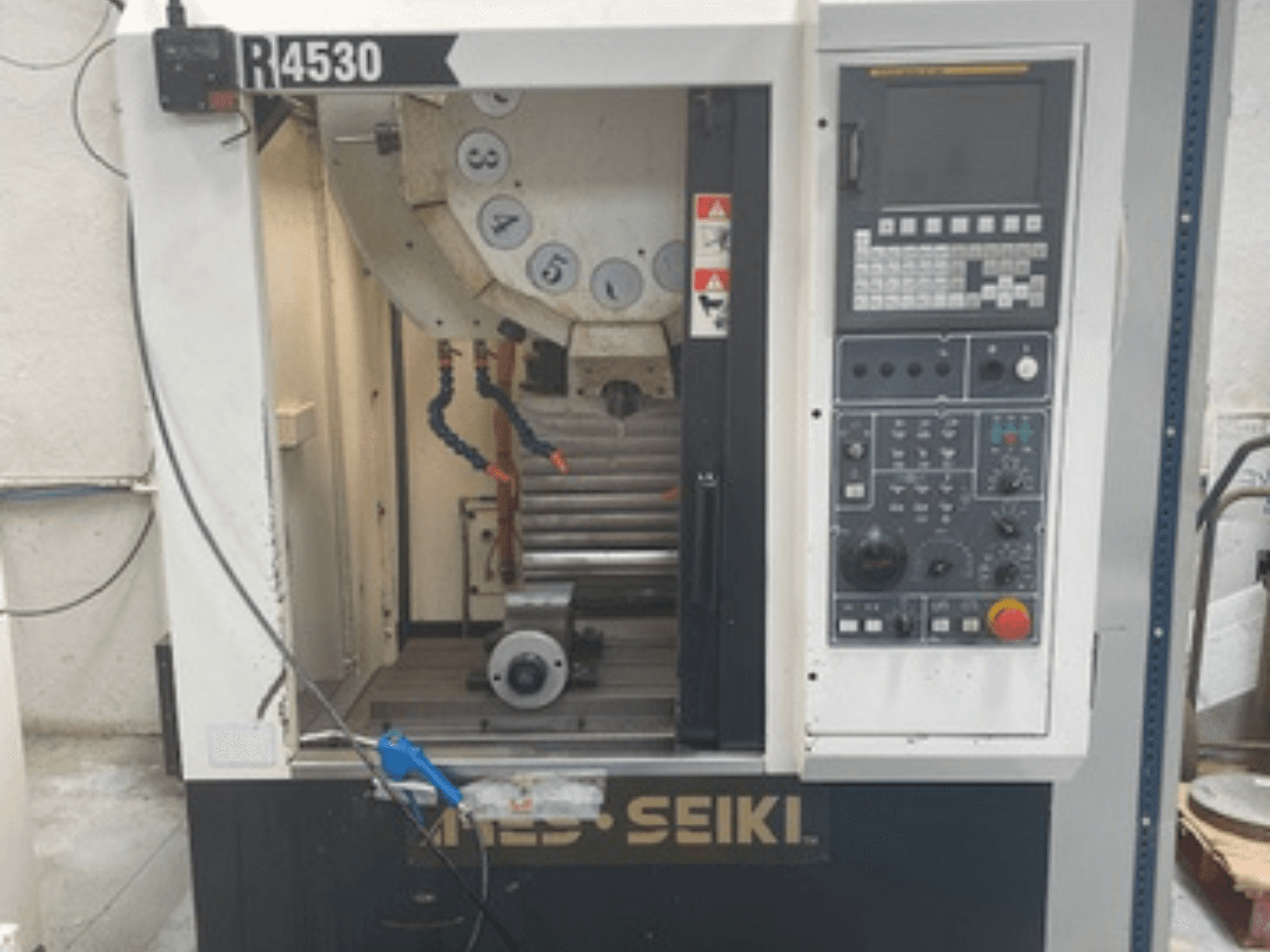

This 3-axis ARES-SEIKI R4530 was manufactured in 2006. It features an X-axis travel of 450 mm, Y-axis travel of 300 mm, and Z-axis travel of 300 mm. The machine includes a work table size of 600 mm x 300 mm and a maximum table load of 200 kg. If you are looking to get high-quality machining capabilities, consider the ARES-SEIKI R4530 vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: ARES-SEIKI
  • year: 2006
  • MODEL: R4530
  • application type: Milling
  • Location: Spain
  • machine type: Vertical Machining Centre

Technical Information - ARES-SEIKI R4530

Dimensions

  • Machine Weight: 2550 kg
  • Table Load: 200 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 450 mm
  • Y-axis Travel: 300 mm
  • Z-axis Travel: 300 mm

Technical Specification

  • Max. Tool Weight: 3 kg
  • Spindle Power: 5.5 kW
  • Spindle Speed: 8000 RPM
  • Taper Size: BT 30

Additional Information

  • Travels & Table

    • Work table size: 600 x 300 mm

  • Automatic Tool Changer (ATC)

    • Tool storage capacity: 10 tools

    • Tool selection: Random, bi-directional

    • Max. tool diameter: 80 mm

    • Max. tool length: 200 mm

    • Tool-to-tool change time: 1.0 s

  • Motion & Accuracy

    • Rapid traverse (X/Y/Z): 30,000 mm/min

    • Cutting feedrate: 1–5,000 mm/min

    • Positioning accuracy: ±0.005/300 mm

    • Repeatability: ±0.002 mm

  • General Data

    • Power requirement: 15 kVA

    • Air pressure requirement: 5 kg/cm²

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
