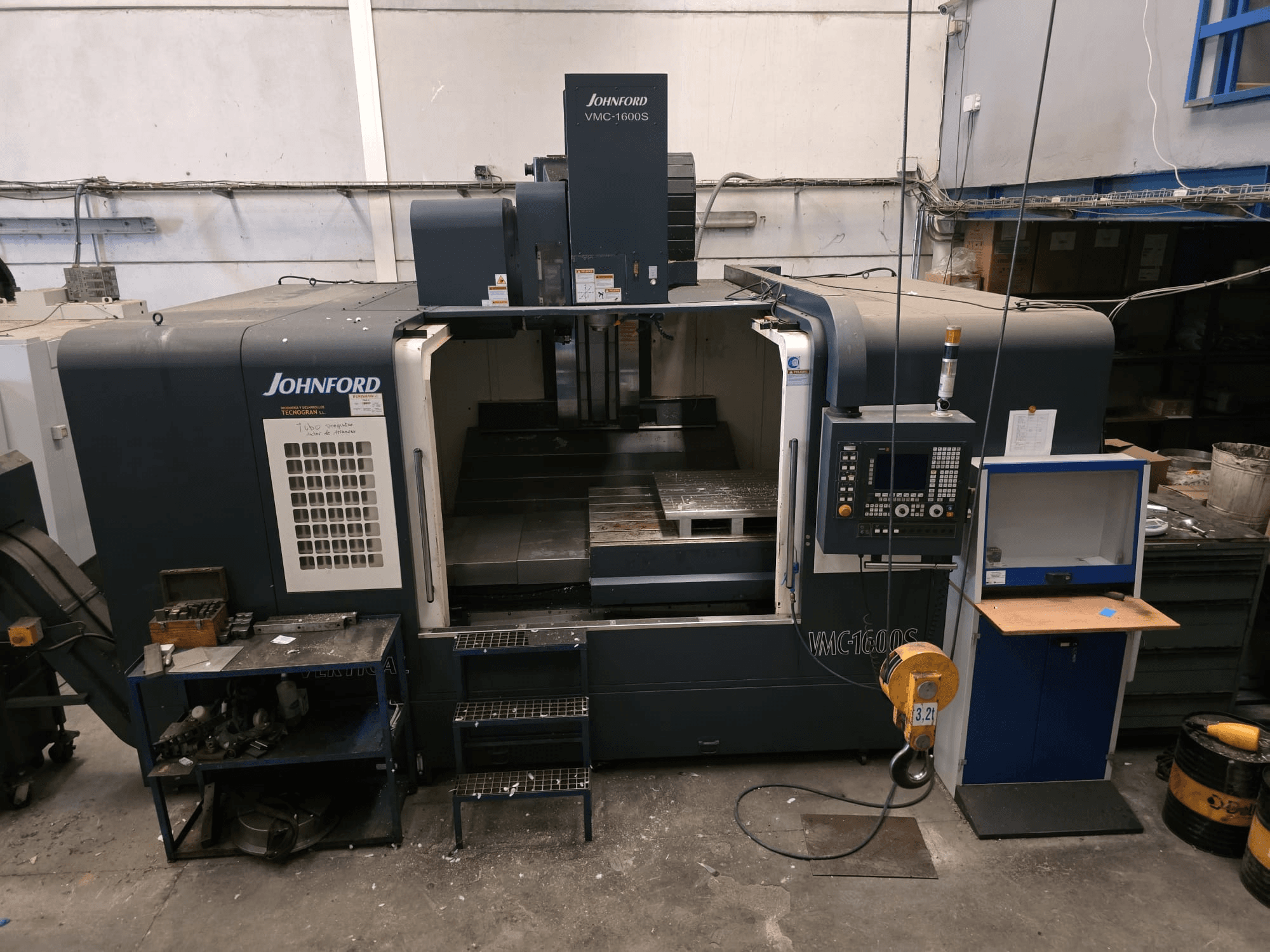

Front view of a Johnford VMC-1600S vertical machining centre with controls and a workspace, in a workshop setting.
Front view of a Johnford VMC-1600S vertical machining centre with controls and a workspace, in a workshop setting.

Johnford - VMC-1600SES-MIL-JOH-2014-00001

62,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis Johnford VMC-1600S was manufactured in 2014. It features a longitudinal travel of 1600 mm, cross travel of 1100 mm, and vertical travel of 800 mm. The machine has a robust table working surface of 1800 x 1000 mm and a maximum table load capacity of 4600 kg. If you are looking to get high-quality milling capabilities, consider the Johnford VMC-1600S vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: Johnford
  • year: 2014
  • MODEL: VMC-1600S
  • application type: Milling
  • Location: Spain
  • machine type: Vertical Machining Centre

Technical Information - Johnford VMC-1600S

Dimensions

  • Machine Weight: 18600 kg
  • Table Load: 4600 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 1600 mm
  • Y-axis Travel: 1100 mm
  • Z-axis Travel: 800 mm

Technical Specification

  • Spindle Speed: 8000 RPM

Additional Information

  • Table working surface: 70.9” x 39.4” (1800 x 1000 mm)

  • Spindle nose to table: 5.9”–37.4” (150–950 mm)

  • Spindle center to column: 45.3” (1150 mm)

  • Spindle taper:

    • VMC-1600S: BT-40 / CAT-40

    • VMC-1600SHD: BT-50 / CAT-50

  • Spindle diameter:

    • VMC-1600S: 2.75” (70 mm)

    • VMC-1600SHD: 3.9” (100 mm)

  • Spindle speed:

    • VMC-1600S: Auto Hi-Lo Gear 80–8000 rpm

    • VMC-1600SHD: Auto Hi-Lo Gear 10–4500 rpm

  • Spindle motor:

    • VMC-1600S: 15/10 HP (15/20 HP optional)

    • VMC-1600SHD: 25/20 HP

  • Rapid traverse (X/Y/Z): 18 / 18 / 12 m/min

  • Feed (spindle): 1–12,000 mm/min

  • Tool selection: Bi-direction random type, shortest path

  • Number of tools:

    • VMC-1600S: Armless 24; Arm type 24/32 (optional)

    • VMC-1600SHD: Armless 20; Arm type 24/32 (optional)

  • Max tool diameter:

    • VMC-1600S: 4” (100 mm)

    • VMC-1600SHD: 9.8” (250 mm)

  • Max tool length:

    • VMC-1600S: 12.5” (320 mm)

    • VMC-1600SHD: 15.7” (400 mm)

  • Max tool weight:

    • VMC-1600S: 22 lbs (10 kg)

    • VMC-1600SHD: 33 lbs (15 kg)

  • Floor space: 177.2” x 209.8” (4500 x 5330 mm)

  • X/Y/Z ballscrew diameter: φ50 / φ63 / φ50

  • Cutting capacity (S45C):

    • Milling: 180 cc/min (S) / 320 cc/min (SHD)

    • Drilling: φ40 mm (S) / φ52 mm (SHD)

    • Tapping: M30 x P3.5 (S) / M50 x P4.5 (SHD)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
