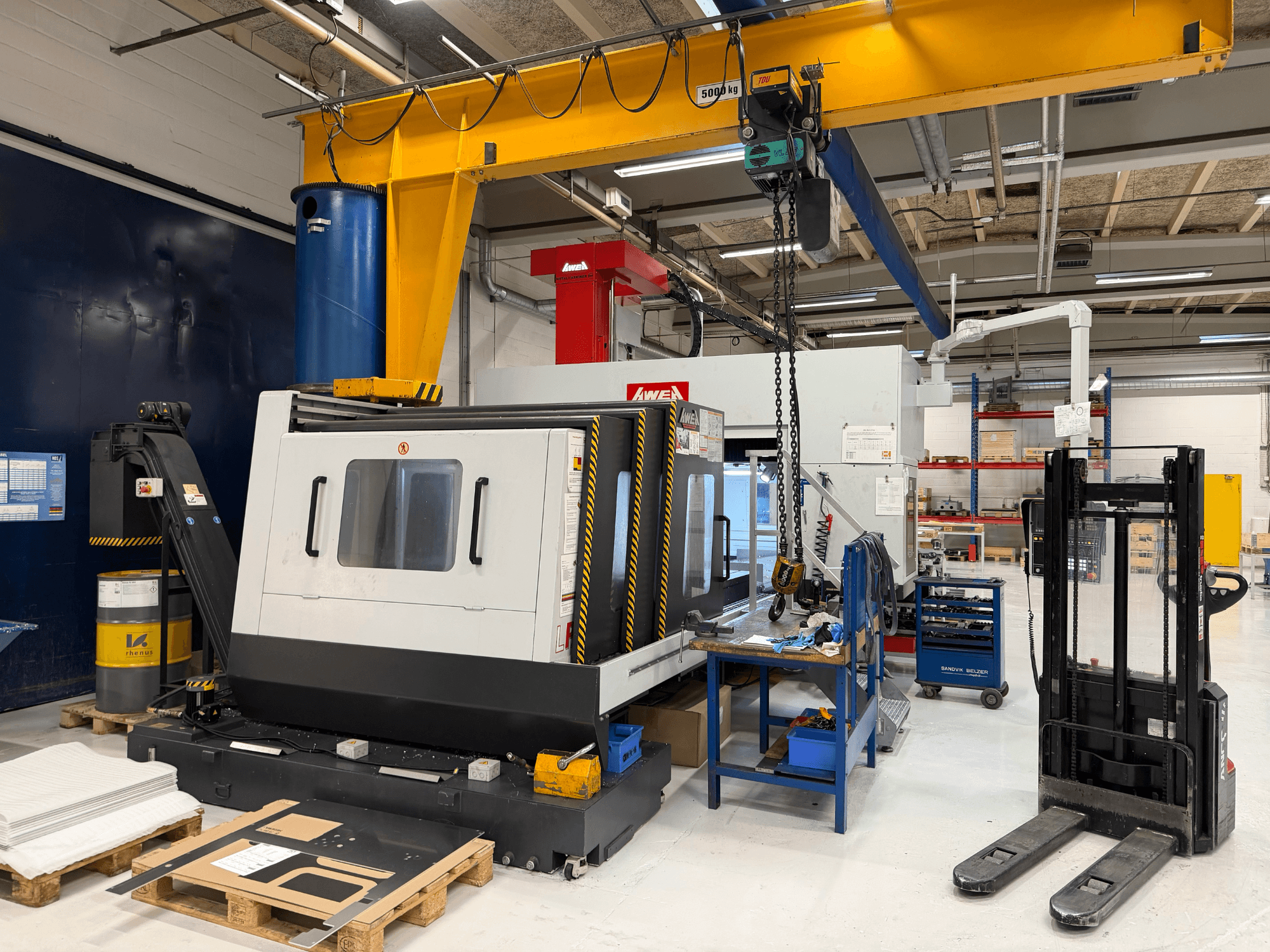

This 4-axis AWEA LP3016YF gantry milling machine was manufactured in 2021. It features a substantial working area of 3216 x 1500 mm and a maximum workpiece weight of 10,000 kg. The machine is equipped with a FANUC 31iM-F CNC control and includes a 32-position tool changer. If you are looking to get high-quality milling capabilities, consider the AWEA LP3016YF machine we have for sale. Contact us for further details.
Overview
- brand: AWEA
- year: 2021
- MODEL: LP3016YF
- application type: Milling
- Location: Denmark
- machine type: Gantry Milling Machine
- control unit brand: FANUC
Technical Information - AWEA LP3016YF
Control Unit
- Control Brand: FANUC
- Control Model: 31iM-F CNC with 10.4" LCD
Dimensions
- Machine Height: 4100 mm
- Machine Length: 8700 mm
- Machine Weight: 29000 kg
- Machine Width: 4660 mm
Movement
- Number of Axes: 4
- X-axis Travel: 3000 mm
- Y-axis Travel: 1600 mm
- Z-axis Travel: 760 mm
Technical Specification
- Max. Tool Weight: 20 kg
- Spindle Power: 26 kW
- Spindle Speed: 8000 RPM
Additional Information
Worktable: 3216 x 1,500 mm
Max. workpiece weight: 10,000 kg
Distance plane to spindle nose: 200–960 mm
Distance between columns: 2,300 mm
Spindle taper: MAS BBT50
Rapid traverse (X/Y/Z): 20 m/min (15 m/min)
Feed (X/Y/Z): 1–10,000 mm/min
Tool changer: Arm type, 32 positions
Max. tool diameter: Ø127 mm
Max. tool diameter with free adjacent pockets: Ø215 mm
Max. tool length: 400 mm
Additional equipment
Full machine encapsulation with roof (CE compliant)
Cooling and thermal management:
20 bar high-pressure coolant system with filters
Low-pressure pumps (Grundfos/Walrus)
Spindle oil cooling system / oil cooler
Cooling system, spindle exhaust, heat exchanger in electrical cabinet
Chip handling:
Double screw-type chip conveyor along the table
Chain-type chip conveyor in Y-direction, located at one end
Probing:
Renishaw 3D workpiece probe system
Renishaw TS 27R tool-setting probe
Lighting: Double LED machine lighting plus LED spot
Tooling package: 20 pcs BBT50 tool holders incl. 32 pcs tightening bolts (through-coolant)
Power: 3x400V 50Hz CE transformer
Base/accessories: Steel machine shoe
F option (angle head and automation):
90° angle head with automatic 5° indexed C-axis
Automatic change of vertical head; head stored in a box at the machine portal
Swing-away angle head storage
ATC change in both horizontal and vertical positions
Max. angle head rpm: 3,000 rpm
Transverse travel upgrade: Y = 1,900 mm (with F option)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
