➤ Used BÜRKLE FFAII 1300 - 2001 - For Sale

Show in original language

This thermo lamination system was manufactured in 2001. The BÜRKLE FFAII 1300 features a working width of 1300 mm and handles panel dimensions from 200 to 1300 mm in width and 400 to 3000 mm in length, with thickness ranging from 8 to 40 mm. It includes a thermal oil heater, smoothing calender, and a comprehensive transport and laminating system. Ideal for high-efficiency thermo lamination processes. For more information about this thermo lamination system, please reach out to us.

Overview

brand: BURKLE
year: 2001
MODEL: FFAII 1300
application type: Pressing / Laminating
Location: Germany
machine type: Veneer Press

Technical Information - BURKLE FFAII 1300

Additional Information

Machine Benefits

Qualitative Machine Benefits

System configuration ffaii 1300
Panel pass-through: central
Brushing machine dbm (chain brushes)
Cooling unit for dow cooling
Glue supply
Cone transport track tke
Laminating calender ekm, d = 500 mm + foil unwinding station + separation station + belt transport track with operator bridge for fve tension shafts
Smoothing calender gkl, d = 500 mm at the inlet of the conveyor belt

Technical Machine Benefits

Working width: 1300 mm
Panel dimensions: width: 200 - 1300 mm, length: 400 - 3000 mm, thickness: 8 - 40 +/- 0. 2 mm
Foil dimensions: maximum width: 1320 mm (side overhang up to 20 mm) roll diameter: 76 or 152 mm (3" or 6")
Working height above floor: 940 mm
System speed: 15 - 45 m/min
Preheating and smoothing calender gkl, d = 500 mm
Thermal oil heater 36 kw

Extra Information

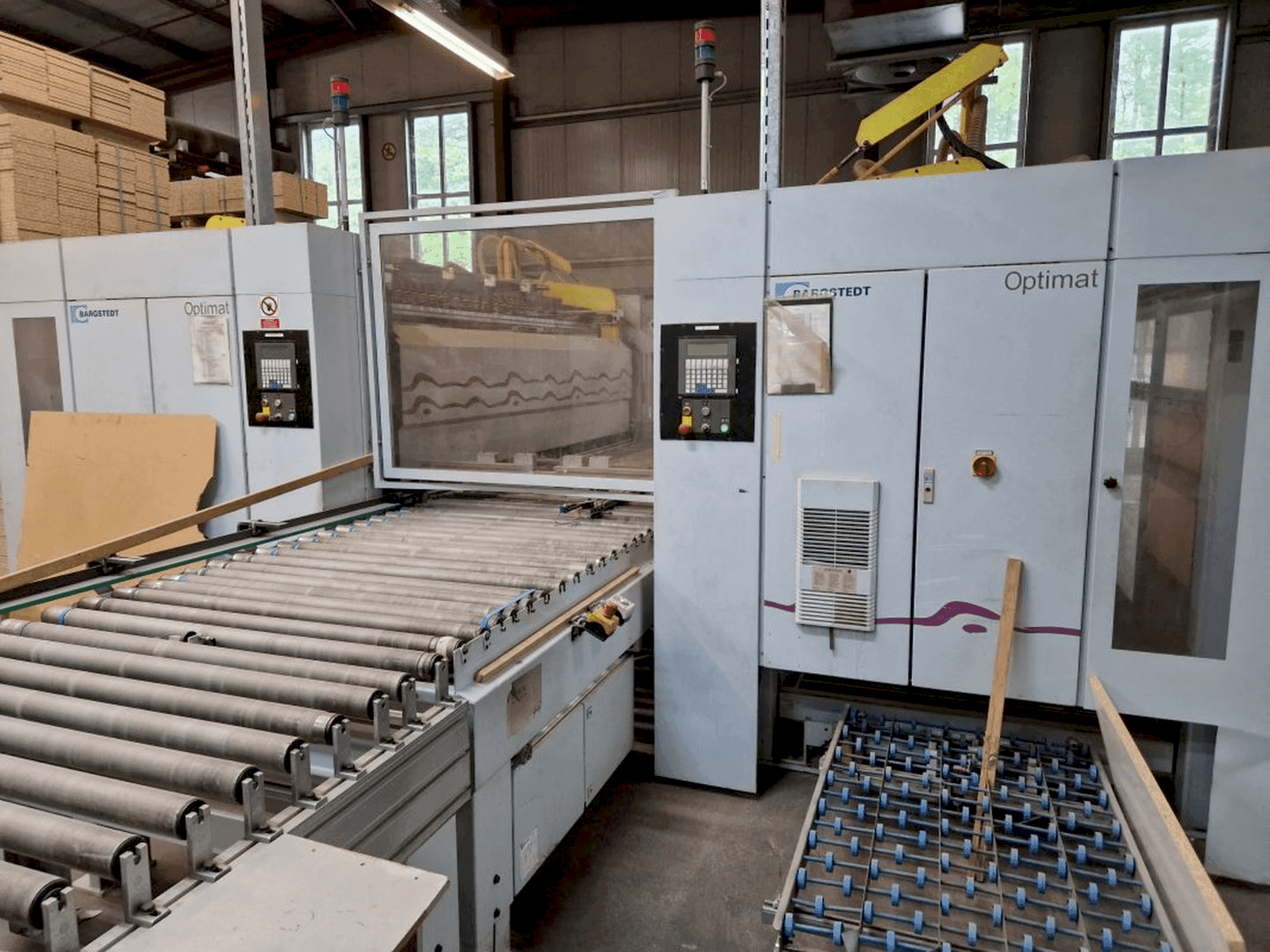

Machine still under power. Stacking station Bargstedt is not in the line anymore.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
