Battenfeld - MacroPower 550XL 2250H-350S 3KFR-INJ-BAT-2018-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- ➤ Used Battenfeld MacroPower 550XL 2250H-350S 3K For sale

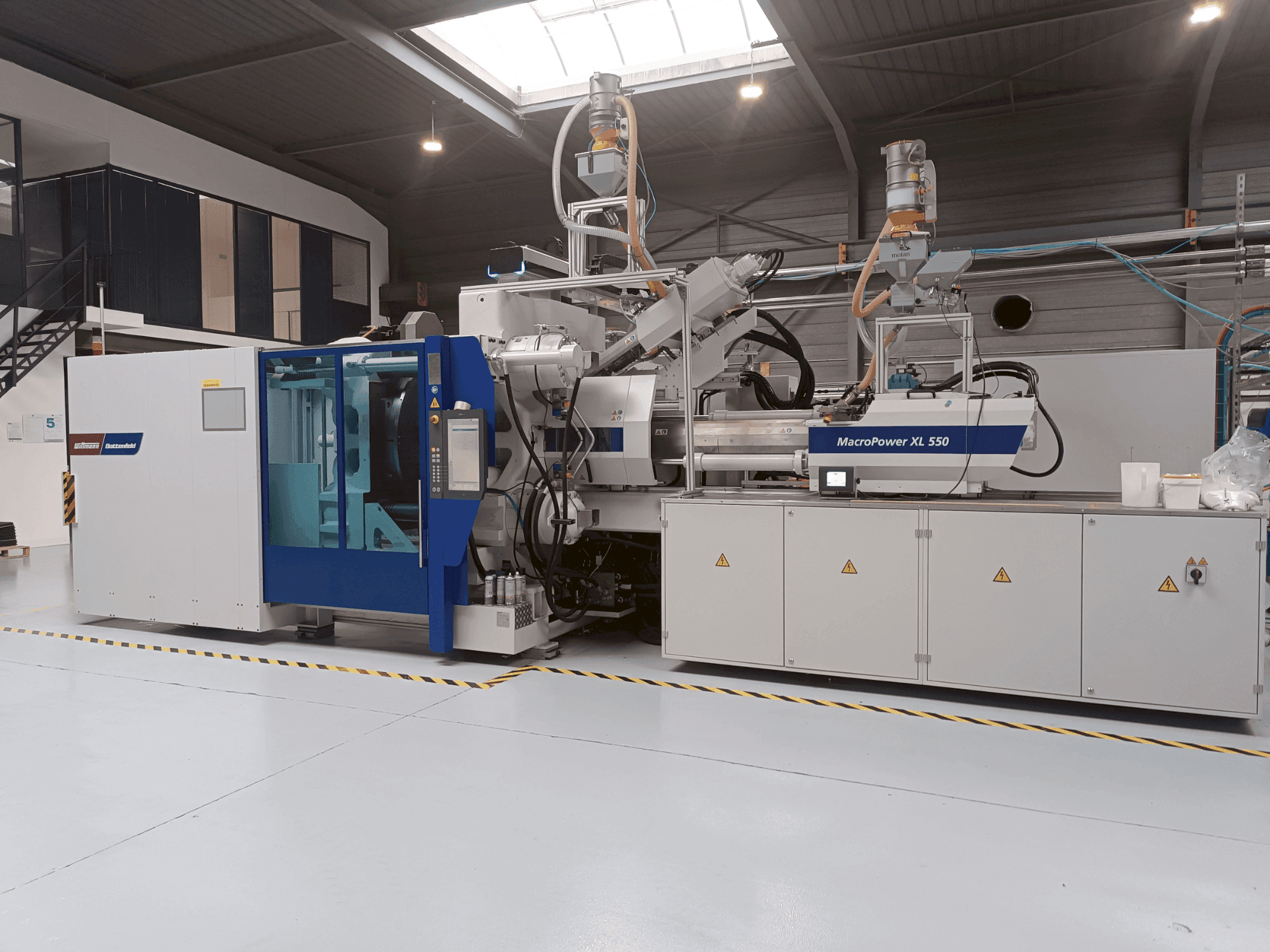

This injection moulding machine was manufactured in 2018. The Battenfeld MacroPower 550XL 2250H-350S 3K features a robust clamping force of 5500 kN and a screw diameter of 65mm for the main injection unit. It supports a maximum platen distance of 2050mm and an opening stroke of 1600mm. Ideal for diverse molding applications, the machine includes a rotary table and is equipped with comprehensive German documentation. Reach out for more information about this injection moulding machine.
Overview
- brand: Battenfeld
- year: 2018
- MODEL: MacroPower 550XL 2250H-350S 3K
- application type: Injection Moulding
- Location: France
- machine type: Hydraulic Injection Moulding Machine
- availability: Immediately
Technical Information - Battenfeld MacroPower 550XL 2250H-350S 3K
Control Unit
- Model: UNILOG B8
Injection Unit
- Screw diameter: 65 mm
- Shot weight: 981.0 g
- Stroke volume: 1078 cm³
- Injection pressure: 2070 bar
Clamping unit
- Clamping force: 5500 kN
- Opening stroke: 1600 mm
- Distance between bars: 1120 x 970 mm
- Mould height min: with/without turntable: 270 mm-450 mm
- Mould height max: with/without turntable: 1179 mm-1359 mm
- Size of mold platens: with/without turntable: 1870 mm - 2050 mm
Additional Information
- Technical Machine Benefits:
- - Injection unit 350l:screw diameter: 40 mm screw l/d ratio: 22 specific injection pressure: 1595 bar calculated stroke volume: 220 cm³ max. Injection weight (ps): 200. 2 g
- - Injection unit 350s:screw diameter: 40 mm screw l/d ratio: 22 specific injection pressure: 1595 bar calculated stroke volume: 220 cm³ max. Injection weight (ps): 200. 2 g
- - Voltage: 230/400v/3p+n-tn/tt 50hz
- - Documentation: german (including robot + conveyor + fences + rotary table)
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
