- ➤ Used SUMITOMO SHI DEMAG Systec 160/520-600 For Sale

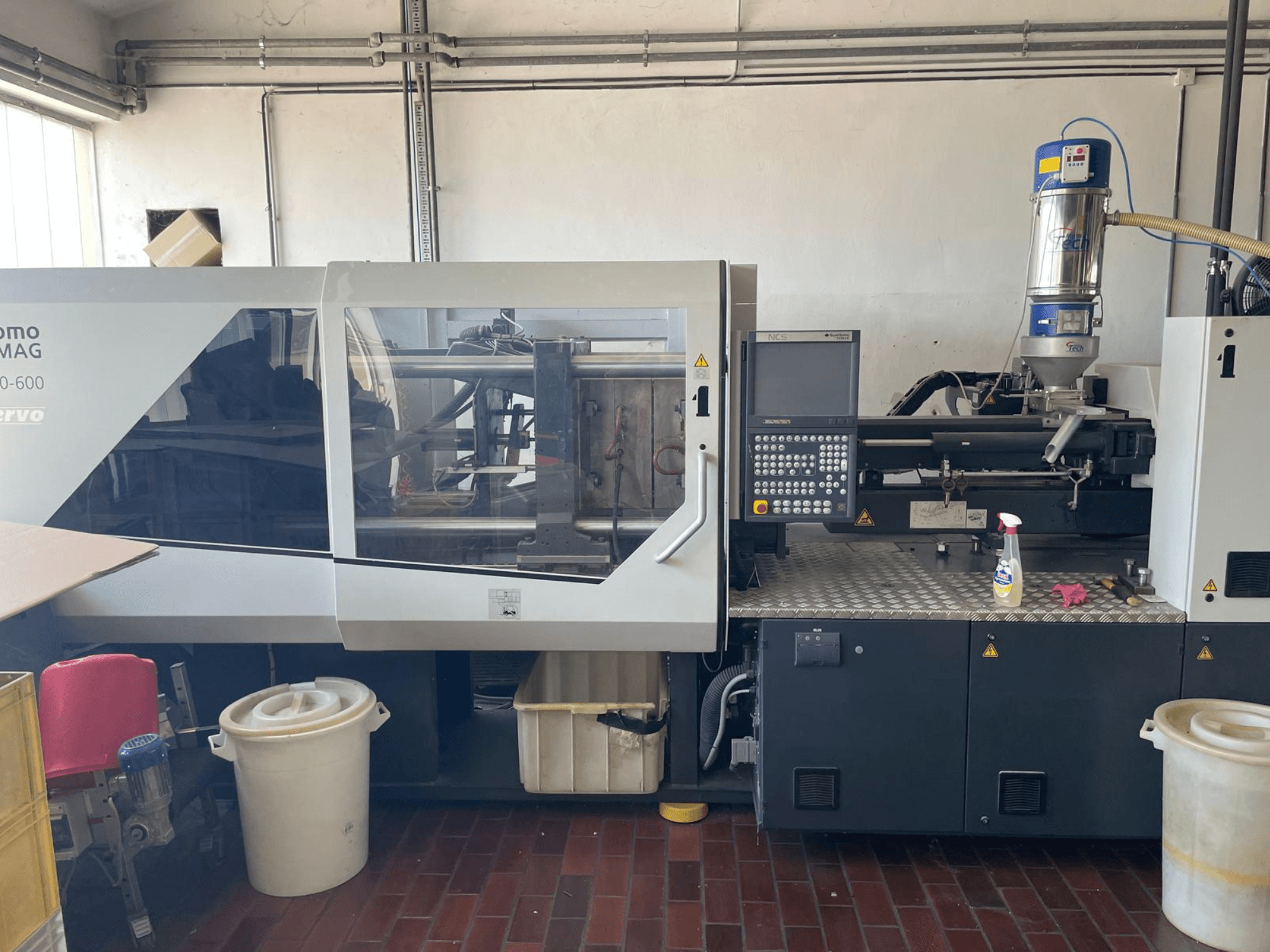

Hydraulic injection moulding machine manufactured in 2017. This SUMITOMO SHI DEMAG Systec 160/520-600 features a clamping force of 1600 kN and a tie bar distance of 520 mm. The machine includes an injection unit with a screw diameter of 40 mm, 45 mm, and 50 mm, and a maximum shot weight of 313 g. If you are looking to get high-quality injection moulding capabilities, consider the SUMITOMO SHI DEMAG Systec 160/520-600 machine we have for sale. Contact us for further details.
Overview
- brand: SUMITOMO SHI DEMAG
- year: 2017
- MODEL: Systec 160/520-600
- application type: Injection Moulding
- Location: Italy
- machine type: Hydraulic Injection Moulding Machine
Technical Information - SUMITOMO SHI DEMAG Systec 160/520-600
Dimensions
- Machine Weight: 6983 kg
Technical Specification
- Clamping Force: 1600 kN
- Max. Shot Weight: 313 g
- Screw Diameter: 50 mm
Additional Information
Tie bar distance: 520 mm
Injection unit: 600
Control: S-Dias
Screw diameter: 40 / 45 / 50 mm
Injection pressure: 2438 / 1914 / 1550 bar
Shot volume: 210 / 294 / 363 cm³
Shot weight (PS): 184 / 254 / 313 g
Injection stroke: 475 / 469 / 396 mm
Installed heating capacity: 11.1 / 11.3 / 15.7 kW
Oil tank capacity: 290 l
Pump drive: 25 / 45 kW
Noise level: 69 dB(A)
Dimensions: 5.6 x 2.1 m
Main electrical connection: 3/400 V, 50 Hz, 167 A
Max pressure: 190 bar
Platen size: 770 x 770 mm
Max mold weight: 1300 kg
Max opening stroke: 500 mm
Min/Max mold height: 275 / 685 mm
Distance between platens: 1085 / 1185 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
