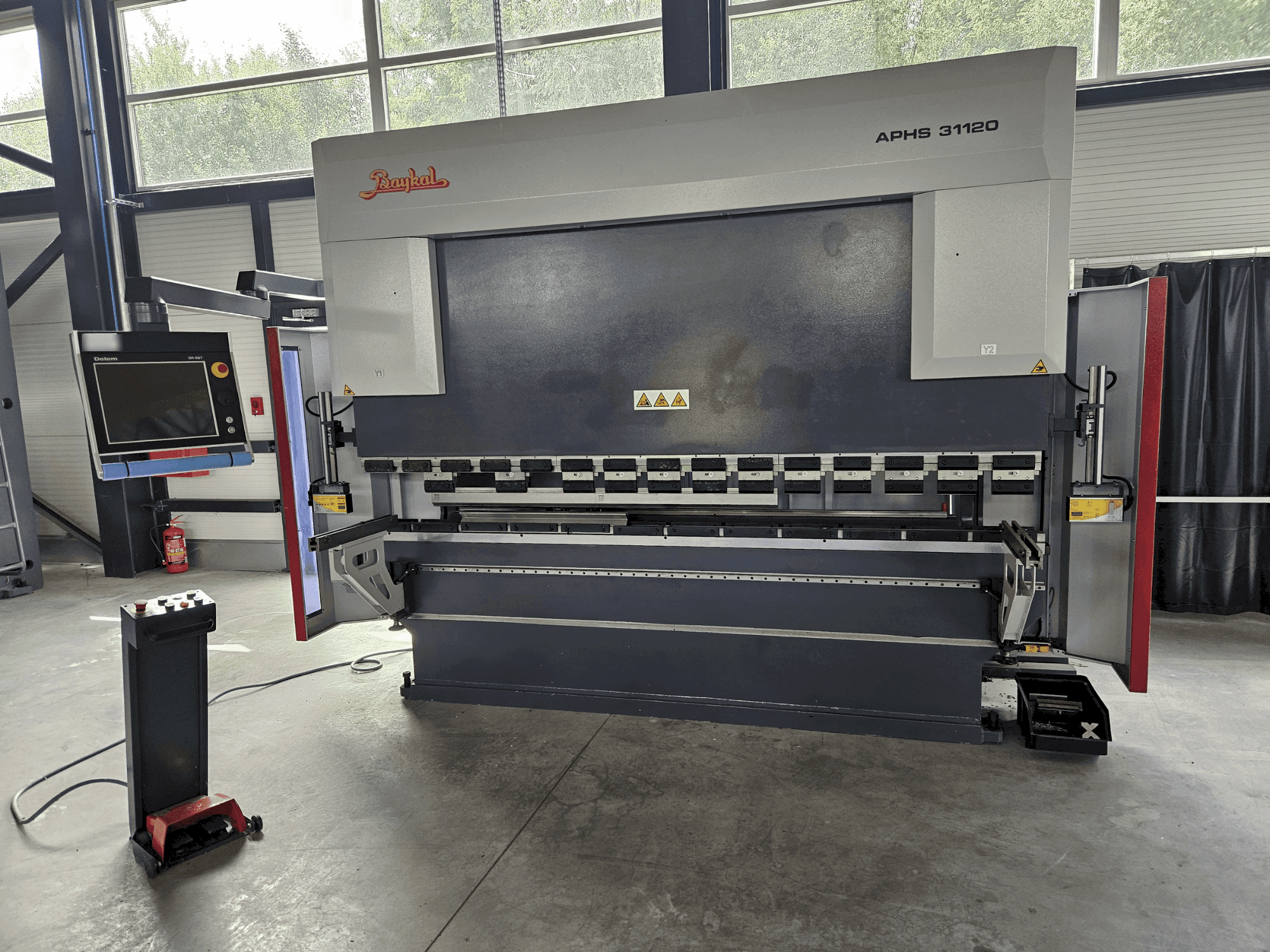

Baykal - APHS 31120PL-BEN-BAY-2020-00001

Additional Equipment

• - AC brushless servo driven backgauge with ballscrews
• - Proportional valve hydraulics: Rexroth or Hoerbiger
• - Precision linear scale measurement: Heidenhain or Givi Misure
• - European clamping system with 85° sectioned punch and 4-V die
• - Double footswitch console
• - Electrically interlocked side guards

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - System pressure: 280 bar
  • - 4-axis press brake (y1, y2, x, r)
  • - Distance between frames: 2550 mm
  • - Throat gap: 410 mm
  • - Max. Stroke adjustment: 260 mm
  • - Backgauge x range: 1000 mm (x and x-r types)
  • - Backgauge fingers: 2 pcs
  • - Cnc crowning wedges on bottom table
  • - Tooling is included in the offer
  • - Excellent condition, almost like new

Extra information

• - Movement Approach Speed: 160 mm/s Working Speed: 10 mm/s Return Speed: 130 mm/s Table Width: 60 mm Voltage: 400 V / 50 Hz / 3 Ph Delem 66t color graphical Windows CNC control unit
