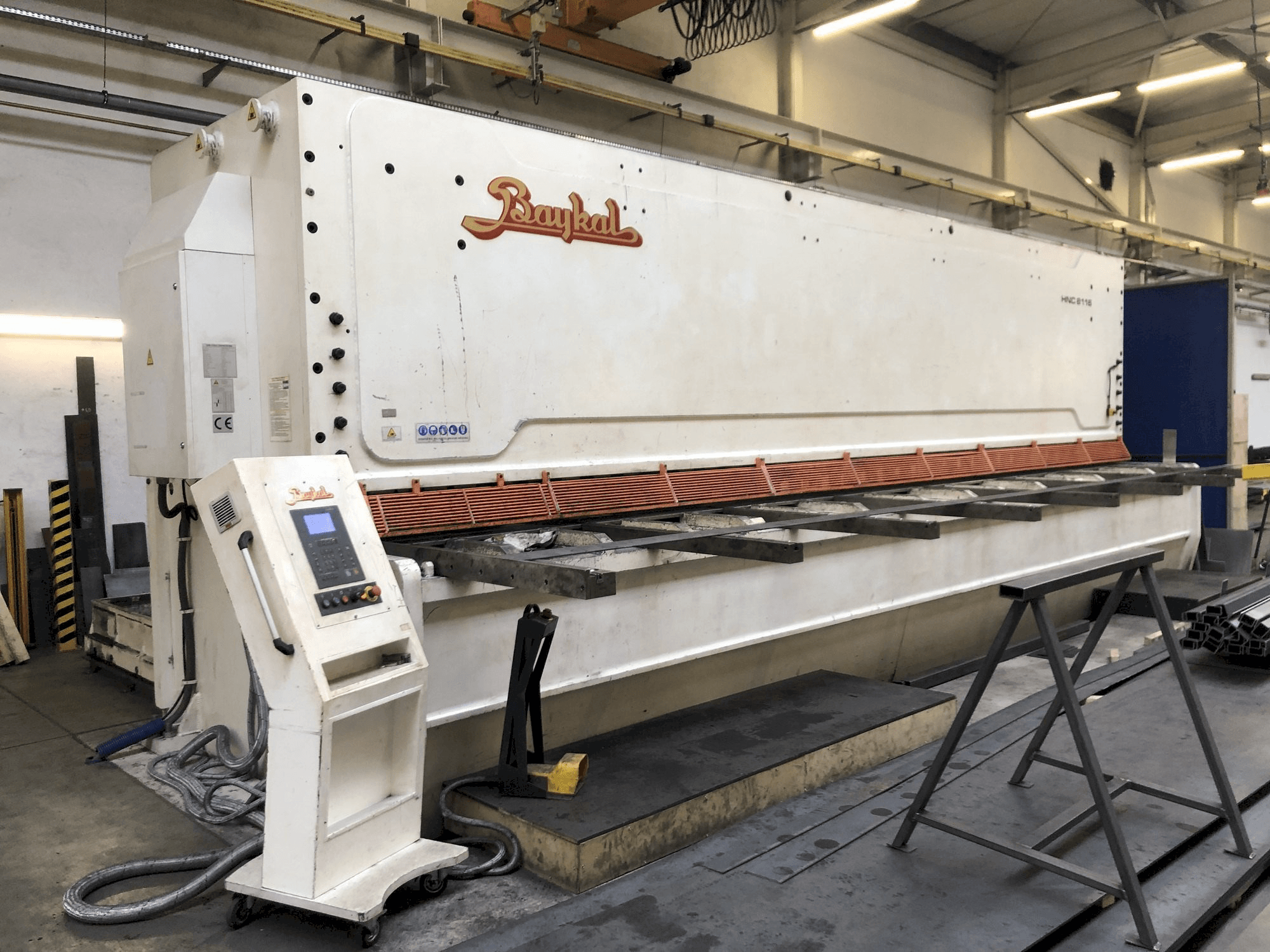

Baykal - HNC 8116PL-SHE-BAY-2014-00001

Machine Benefits

Qualitative Machine Benefits

• Ability to program the backgauge, number of cuts, cutting angle, and blade gap;
• Welded steel structure providing the necessary rigidity and durability
• Motorized rear backgauge driven by a ball screw with a tilting function to allow cutting of oversized sheets
• High-carbon steel blades
• Adjustable cutting length
• Cutting line illumination
• Hydraulic sheet clamping
• Portable foot switch, ce mark
• Hydraulic overload protection, second set of upper and lower cutting blades
• Two independent drawers for the cut material, move along a track

Technical Machine Benefits

• Cutting capacity: 16 mm
• Cutting length: 8060 mm
• Front supports with a length of 1000 mm
• Side clearance in the frame of 350 mm
• Power supply voltage: 380v / 50 hz / 3 phase
• Motor power: 37 kw
• Strokes per minute: 4-6
• Operator finger protection at the front of the machine
• Automatic cnc adjustment of blade gap and cutting angle
