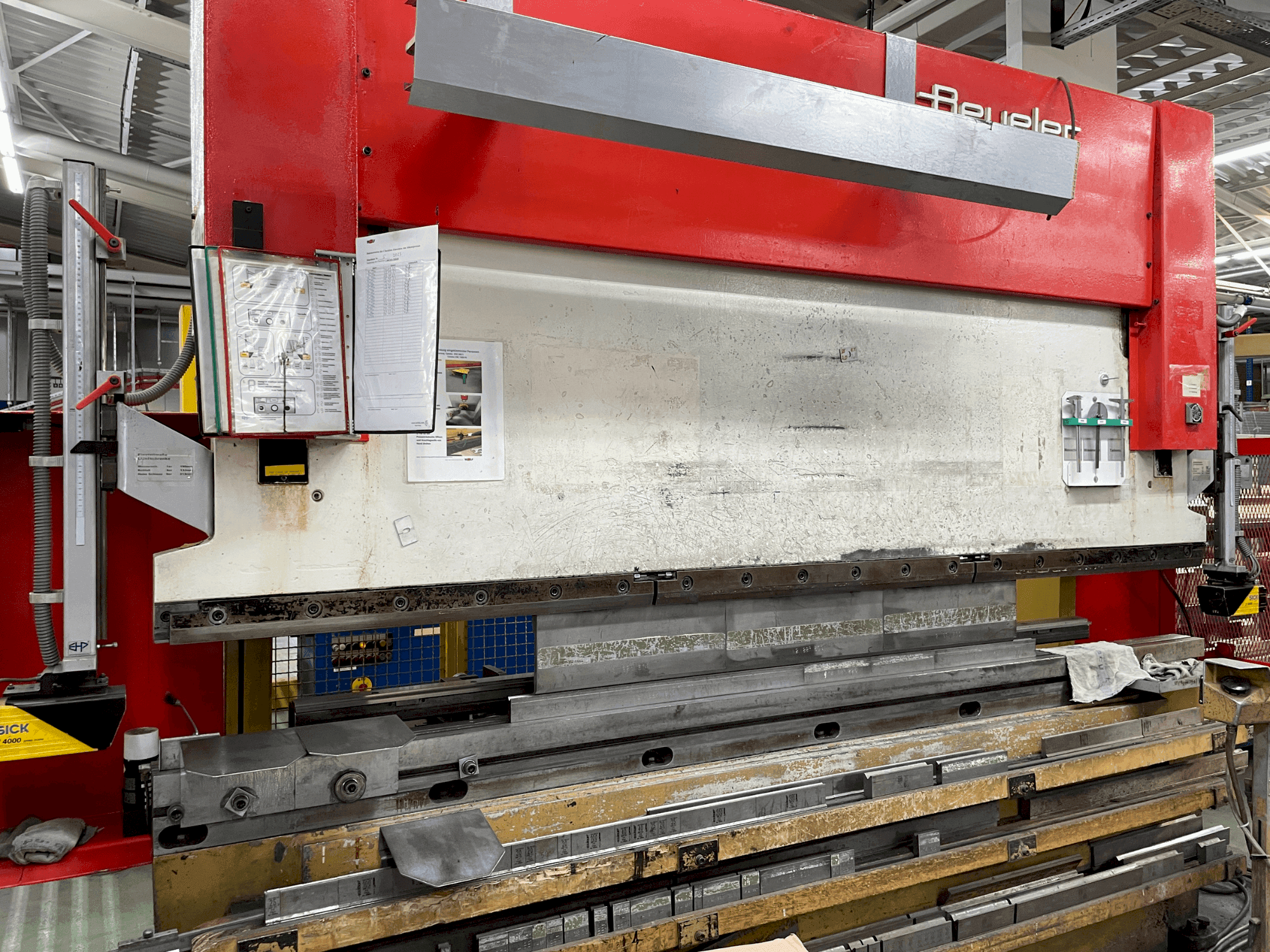

Front view of BEYELER RT 125 x 3100  machine

BEYELER RT 125 x 3100

BEYELER - RT 125 x 3100

1995

18,000 €

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Beyeler RT 125 x 3100 Bending machine was manufactured in the year 1995 in Switzerland and has 50000 production hours. It is equipped with a DNC70PS control unit and has 2 axis. The machine has a pressing force of 1250 kN and a bending length of 3100 mm.

Overview

  • brand: BEYELER
  • year: 1995
  • MODEL: RT 125 x 3100
  • production hours: 50000
  • application type: Bending
  • Location: Germany
  • machine type: Bending machines
  • availability: Immediately
  • control unit brand: DNC70PS
  • GINDUMAC ID: DE-BEN-BEY-1995-00001

Technical Information

General Data

  • Measurements width: 1750 mm
  • Measurements depth: 3400 mm
  • Measurements height: 2440 mm
  • Machine weight: 9500 kg

Control Unit

  • Brand: DNC70PS

Main drive

  • Pressing force: 1250 kN
  • Bending length: 3100 mm
  • Stroke: 215 mm
  • Number of axis: 2

Additional Information

    Extra information

    • - Control system: DNC70PS Working Parameters Pressing force 1250 kN Retraction force 60 kN Working length 3100 mm Distance between uprights 2600 mm Throat depth 305 mm Distance between lower and upper beam 526 mm Stroke 215 mm Distance floor-lower beam 828 mm Tool holder A Machine Parameters number of working cylinders 2 number of crowning cylinders 4 rapid traverse 100 mm/s working speed 7 mm/s retraction speed 90 mm/s holding time of the upper beam 0.1 s main motor power 7.5 kW oil filling 115 liters Backgauge max. adjustment speed 200 mm/s adjustment range 500 mm direct current motor 0.9 kW General Parameters lowering of the bottom beam -- mm floor lowering of the uprights -- mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
