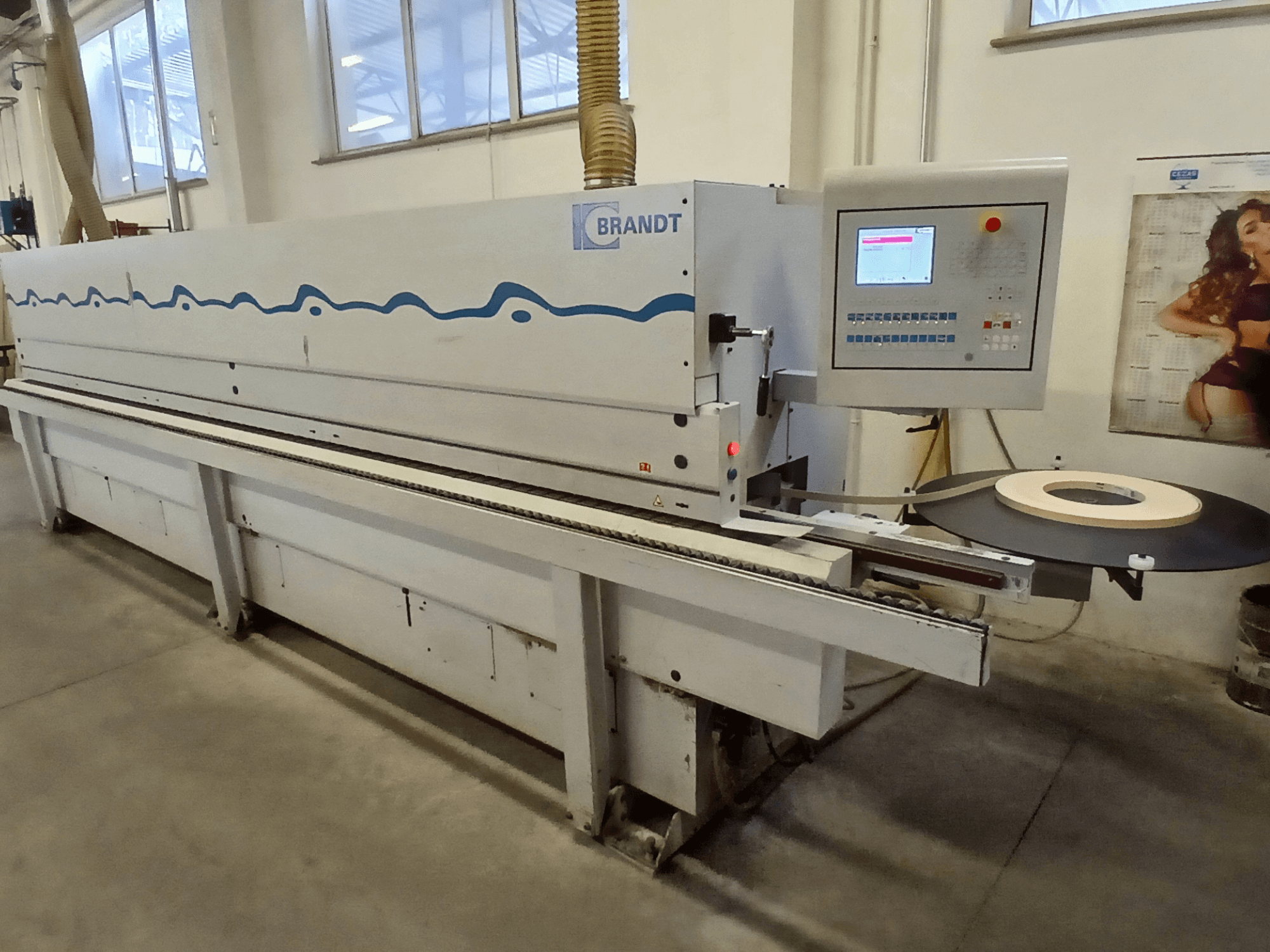

BRANDT - OPTIMAT KDF 670PL-EDG-BRA-2005-00001

Processing units / aggregates:

• Pre-milling unit

• Glue application unit

• Edge feeding and cutting (roll/strip)

• Pressure zone

• End trimming unit

• Top and bottom trimming unit (pre-milling + profiling)

• Corner rounding unit

• Scraper unit (profile scraper)

• Glue joint scraper

• Cleaning (solvent or spray system)

• Polishing unit

Working capacity:

• Workpiece thickness: 8–60 mm

• Edge band thickness (rolls): 0.4–3 mm

• Edge band thickness (strips): up to 12–15 mm

• Feed speed: 8–18 m/min (up to 20 m/min depending on configuration)

• Minimum workpiece width:

  • 70 mm (workpiece thickness 8–22 mm)

  • 120 mm (workpiece thickness 23–40 mm)

  • 150 mm (workpiece thickness 41–60 mm)

• Maximum edge roll diameter: 830 mm

Electrical & power:

• Total installed power: approx. 21 kW

• Voltage: 400 V, 3-phase, 50 Hz
