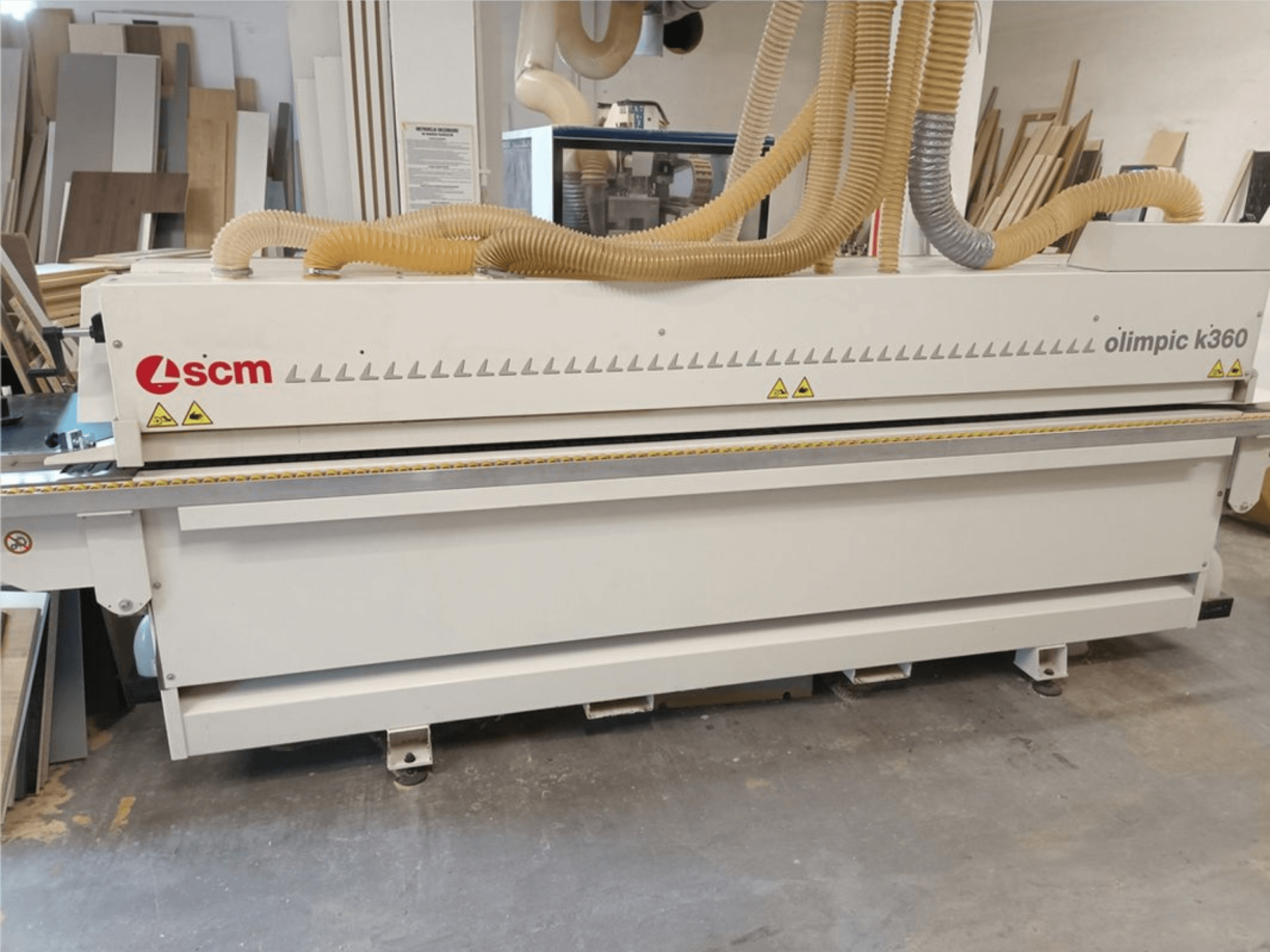

Edgebander manufactured in 2017. This SCM Olimpic K360 T-ER1 features a feed speed of 11 m/min and accommodates edge thicknesses from 0.4 to 6 mm. It includes a pre-milling unit with counter-rotating diamond heads, an EVA glue unit, and a buffing unit. If you are looking to get high-quality edge banding capabilities, consider the SCM Olimpic K360 T-ER1 machine we have for sale. Contact us for further details.
Overview
- brand: SCM
- year: 2017
- MODEL: Olimpic K360 T-ER1
- application type: Edge Banding
- Location: Poland
- machine type: Edgebander
Additional Information
Feed speed: 11 m/min
Edge thickness: 0.4–6 mm
Panel thickness: 8–60 mm
Min. workpiece: 140 x 90 mm
Power supply: 400 V / 3~ / 50 Hz, 23 A
Aggregates:
Pre-milling: 2 counter-rotating diamond heads (up to 3 mm removal)
EVA glue unit
Pressure zone with driven roller + 2 pressure rollers
End-cutting unit K-2 (straight/bevel, automatic switching)
Top/bottom trimming: flush, radius, chamfer
Corner rounding R1/R2
Profile and flat scrapers
Buffing unit
Anti-adhesive fluid system (2 fluids)
Edge roll feeder
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
