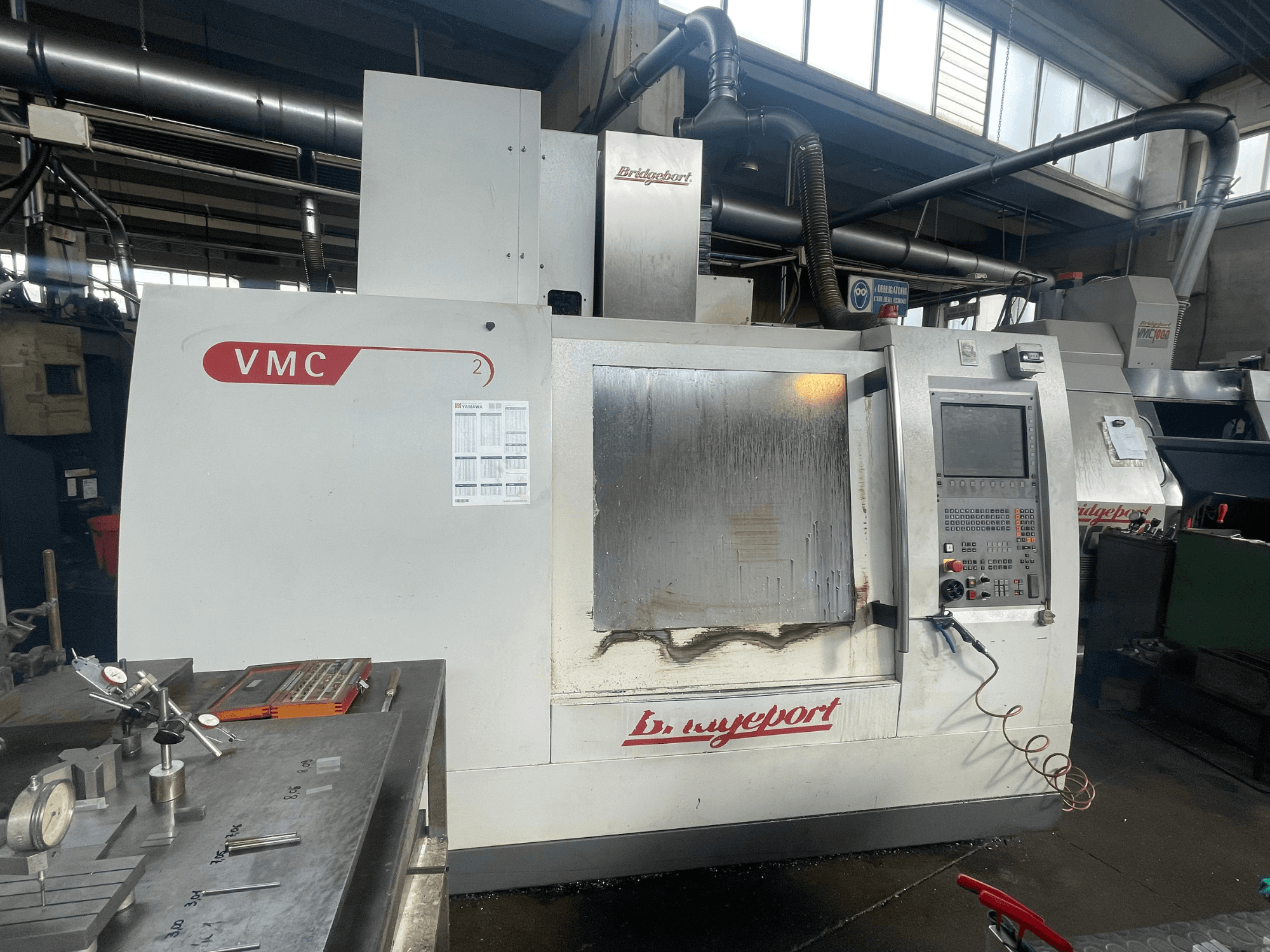

This 4-axis Bridgeport VCM 800-30 was manufactured in 2004. It features an X-axis travel of 800 mm, Y-axis travel of 300 mm, and Z-axis travel of 500 mm. The machine is equipped with a NIKKEN 4th Axis Rotary Table and a HEIDENHAIN 530 Control, along with a BT40 Spindle Holder and 30 tool positions. If you are looking to get high-quality machining capabilities, consider the Bridgeport VCM 800-30 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: Bridgeport
- year: 2004
- MODEL: VCM 800-30
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - Bridgeport VCM 800-30
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: 530
Movement
- Number of Axes: 4
- X-axis Travel: 800 mm
- Y-axis Travel: 300 mm
- Z-axis Travel: 500 mm
Technical Specification
- Spindle Speed: 6000 RPM
- Taper Size: BT 40
- Tool Stations: 30
Additional Information
NIKKEN 4th axis rotary table
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
