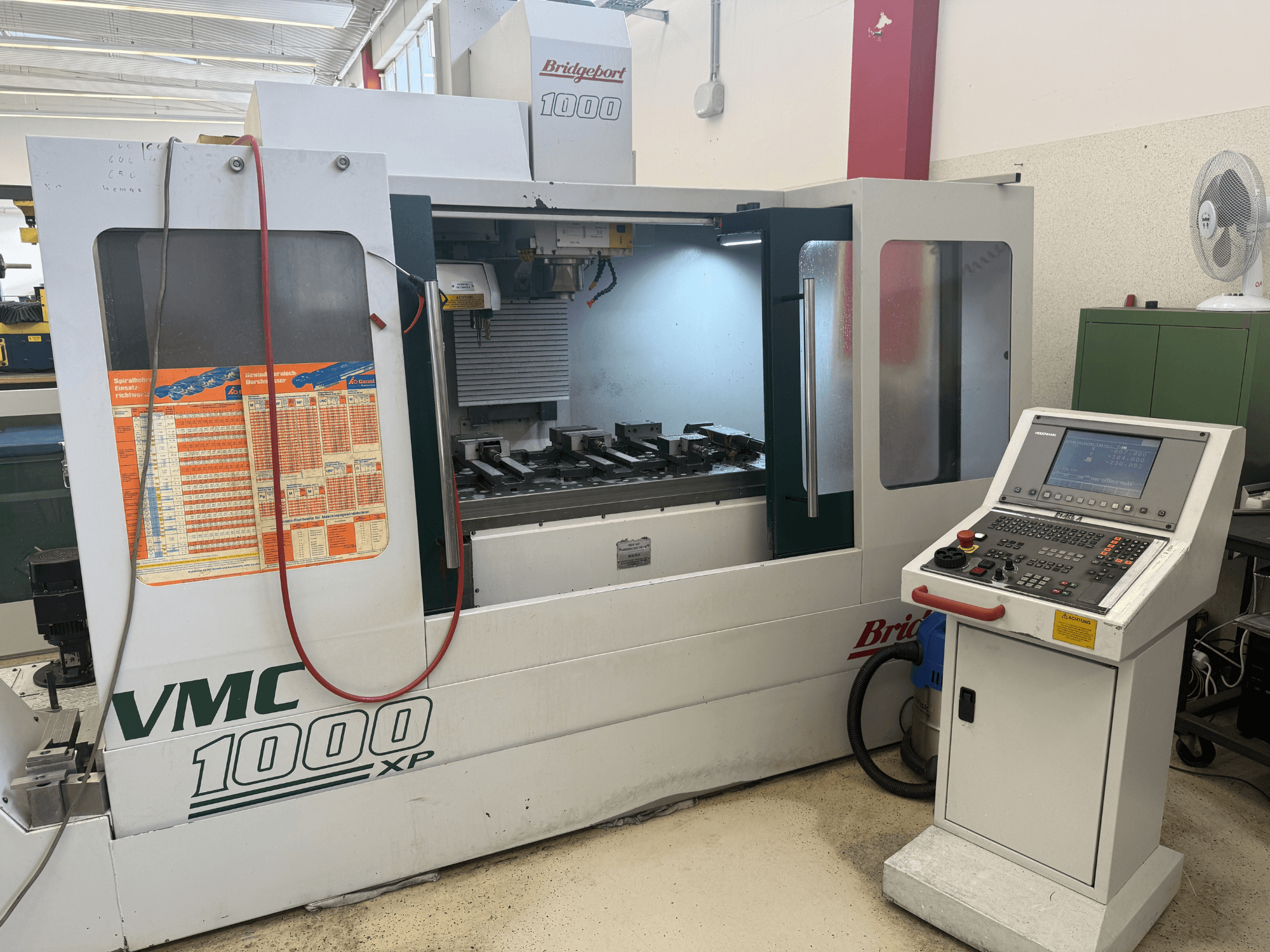

This 3-axis Bridgeport VMC 1000 22 was manufactured in 2001. It features a working area X travel of 1020 mm, Y travel of 610 mm, and Z travel of 610 mm. The machine includes a robust table size of 1150 x 580 mm with a maximum table load of 500 kg. If you are looking to get high-quality machining capabilities, consider the Bridgeport VMC 1000 22 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: Bridgeport
- year: 2001
- MODEL: VMC 1000 22
- production hours: 10631
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - Bridgeport VMC 1000 22
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC 410
Dimensions
- Machine Height: 2700 mm
- Machine Weight: 4200 kg
- Table Load: 500 kg
Movement
- Number of Axes: 3
- X-axis Travel: 1020 mm
- Y-axis Travel: 610 mm
- Z-axis Travel: 610 mm
Technical Specification
- Max. Tool Weight: 7 kg
- Spindle Power: 13 kW
- Spindle Speed: 6000 RPM
- Taper Size: SK 40
Additional Information
Table: 1150 x 580 mm; T-slots 5x; T-slot size 18 mm
Spindle torque up to 110 Nm
Tooling: holder SK 40 DIN 69871; tool changer 22 stations (optional 30); max tool Ø 75 mm; max tool length 250 mm; tool change time approx. 5.2 s
Axis speeds: rapid X/Y 40,000 mm/min; rapid Z 30,000 mm/min; feed 1–12,000 mm/min; acceleration 6 m/s²
Accuracy: positioning ±0.005 mm; repeatability ±0.002 mm
Coolant system: tank capacity 450 l; pump capacity 70 / 140 l/min
Electrical: 400 V, 3-phase, 50 Hz; full load current 30 A; fuse protection 63 A; connected load approx. 20 kVA
Pneumatics: compressed air 6 bar; consumption approx. 80 l/min
Machine size/weight: dimensions 2830 x 2360 mm; transport weight approx. 4700 kg
Spindle operating time: 10,631 h
Additional equipment
Chip conveyor (included)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
